Toyota SIENTA — ARMREST & VISOR

0001 1������ 0002 1����� & ����������

74210ARMREST ASSY, FRONT, RH

main74210-52030-B0iNCP175,NHP170,NSP17#..FNBSG,G,WKG201809-202207

DK.GRAY,TRIM2#

main74210-52030-B0iNCP175..G;NHP170,NSP170..07S..G201708-201809

DK.GRAY,TRIM20

main74210-52030-C1iNCP175..G;NHP170,NSP170..07S..G201506-201708

BLUE BLACK,TRIM2#

main74210-52030-C1iNHP170,NSP17#..(05S,06S)..G201506-201809

BLUE BLACK,TRIM2#

main74210-52030-C1iNCP175..G;NHP170,NSP170..07S..G201708-201809

BLUE BLACK,TRIM20

main74210-52030-E0iNCP175,NHP170,NSP17#..G201506-201809

DK.BROWN,TRIM0#

main74210-52030-E0iNCP175,NHP170,NSP17#..G,WKG201809-202207

DK.BROWN,TRIM0#

main74210-52040-A1iNCP175,NHP170,NSP17#..X201506-201809

FROMAGE,TRIM0#

main74210-52040-A1iNCP175,NHP170,NSP17#..WKX,X201809-202207

FROMAGE,TRIM0#

main74210-52040-C1iNCP175,NHP170,NSP17#..FNBSX,WKX,X201809-202207

BLACK,TRIM2#

main74210-52040-C1iNCP175,NHP170,NSP17#..X201506-201809

BLACK,TRIM2#

main74210-52050-C1iNCP175,NHP170,NSP170..FNGCR,GCERO201809-202207

BLACK,TRIM2#

74220ARMREST ASSY, FRONT, LH

main74220-52020-B0iNCP175,NHP170,NSP17#..FNBSG,G,WKG201809-202207

DK.GRAY,TRIM2#

main74220-52020-B0iNCP175..G;NHP170,NSP170..07S..G201708-201809

DK.GRAY,TRIM20

main74220-52020-C1iNCP175..G;NHP170,NSP170..07S..G201506-201708

BLUE BLACK,TRIM2#

main74220-52020-C1iNHP170,NSP17#..(05S,06S)..G201506-201809

BLUE BLACK,TRIM2#

main74220-52020-C1iNCP175..G;NHP170,NSP170..07S..G201708-201809

BLUE BLACK,TRIM20

main74220-52020-E0iNCP175,NHP170,NSP17#..G201506-201809

DK.BROWN,TRIM0#

main74220-52020-E0iNCP175,NHP170,NSP17#..G,WKG201809-202207

DK.BROWN,TRIM0#

main74220-52030-A1iNCP175,NHP170,NSP17#..X201506-201809

FROMAGE,TRIM0#

main74220-52030-A1iNCP175,NHP170,NSP17#..WKX,X201809-202207

FROMAGE,TRIM0#

main74220-52030-C1iNCP175,NHP170,NSP17#..FNBSX,WKX,X201809-202207

BLACK,TRIM2#

main74220-52030-C1iNCP175,NHP170,NSP17#..X201506-201809

BLACK,TRIM2#

main74220-52050-C1iNCP175,NHP170,NSP170..FNGCR,GCERO201809-202207

BLACK,TRIM2#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-52A80-A0iNCP175,NHP170,NSP17#..G,WKG,WKX,X201809-202207

FROMAGE,TRIM0#

main74231-52A80-A0iNCP175,NHP170,NSP17#201506-201809

FROMAGE,TRIM0#

main74231-52A80-C0iNCP175,NHP170,NSP170..FNBSG,G201809-202207

BLACK,TRIM2#,4#

main74231-52A80-C0iNCP175,NHP170,NSP170..FNBSG,G201809-202207

BLACK,TRIM2#

main74231-52A80-C0iNCP175,NHP170,NSP17#201506-201809

BLACK,TRIM2#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-52660-A0iNCP175,NHP170,NSP17#201506-201809

FROMAGE,TRIM0#

main74232-52660-A0iNCP175,NHP170,NSP17#..G,WKG,WKX,X201809-202207

FROMAGE,TRIM0#

main74232-52660-C0iNCP175,NHP170,NSP17#..FNBSX,FNGCR,GCERO,WKG,WKX,X201809-202207

BLACK,TRIM2#

main74232-52660-C0iNCP175,NHP170,NSP170..FNBSG,G201809-202207

BLACK,TRIM2#,4#

main74232-52660-C0iNCP175,NHP170,NSP17#201506-201809

BLACK,TRIM2#

9046708227

main90467-08227¥80

9046710203

main90467-10203¥60

9046712080

main90467-12080¥60

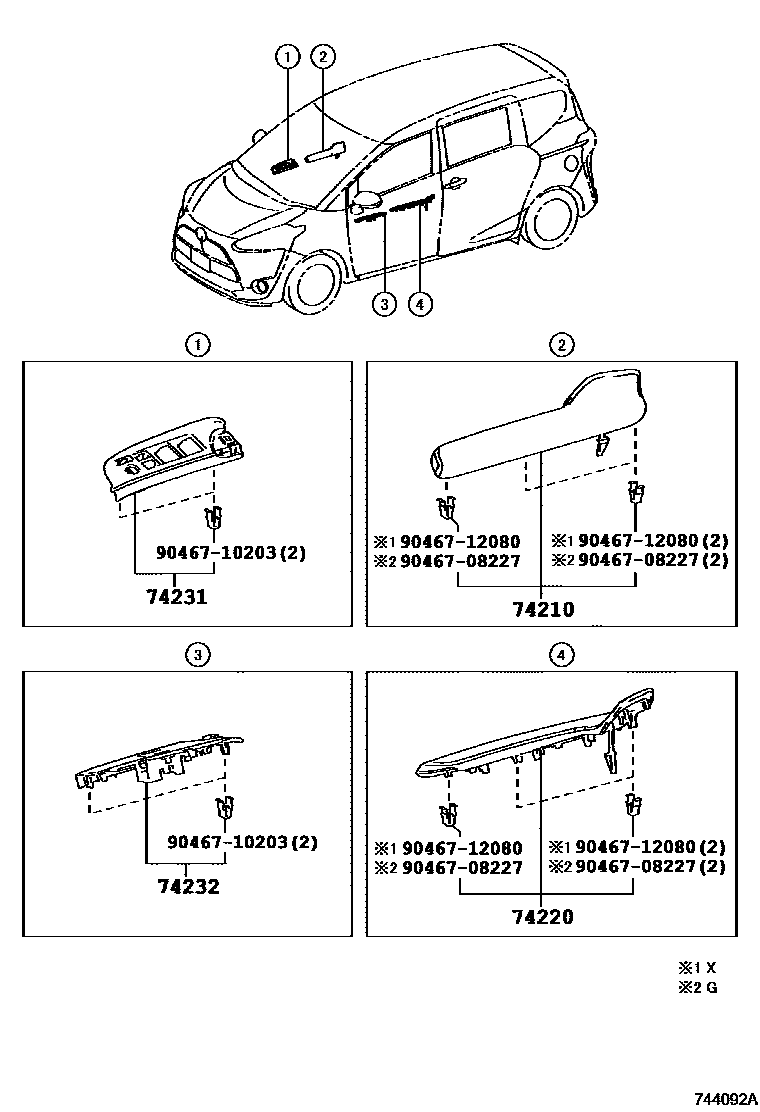

7 parts on this diagram · 2 diagrams in section
