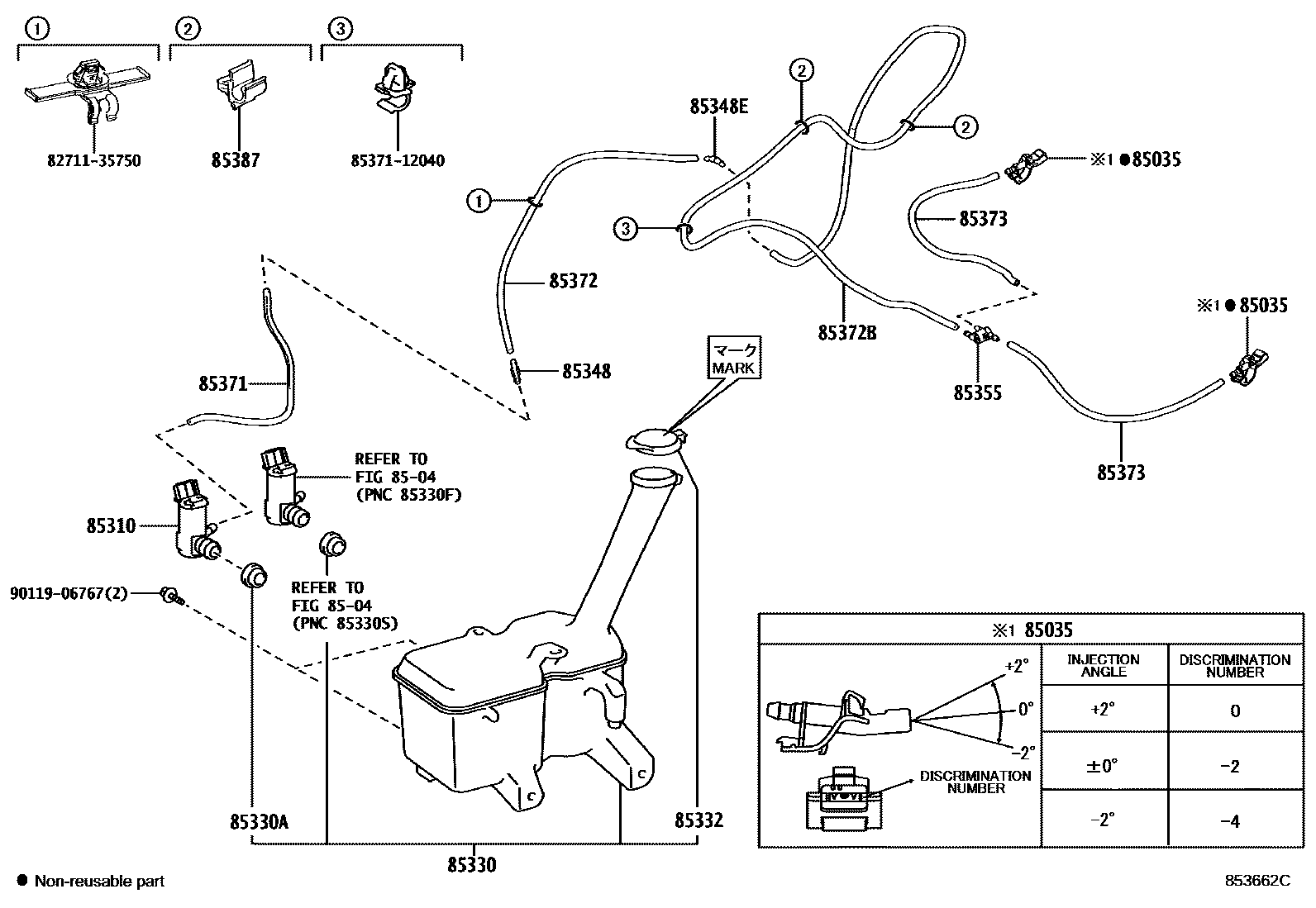

Toyota SIENTA (TAIWAN) — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12400iNSP170¥0201611-202306

ANGLE 0

main85381-12410iZSP170201611-202306

ANGLE -2

main85381-12420iNSP170201611-202306

ANGLE +2

sub85381-0K060

8504

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-0K010iNSP170,ZSP170201611-201701

sub85330-0K011

main85330-0K011iNSP170,ZSP170201702-202107

main85330-0K012iNSP170,ZSP170202101-202306

85330JAR ASSY, WINDSHIELD WASHER

main85315-0D300iNSP170,ZSP170201611-201911

sub85315-0D301

main85315-0D300iNSP170,ZSP170201911-202107

PNC 85332=MARK E11

sub85315-0D301

main85315-0D301iNSP170202107-202306

PNC 85332=MARK E13

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iNSP170,ZSP170201611-202306

85332CAP, WINDSHIELD WASHER JAR

main85316-0D300iNSP170,ZSP170201611-201911

sub85316-0D301

main85316-0D300iNSP170,ZSP170201911-202107

MARK=E11:REF.ILLUST

sub85316-0D301

main85316-0D301iNSP170202107-202306

MARK=E13:REF.ILLUST

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-10260iNSP170,ZSP170¥120201611-202306

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-20200iNSP170,ZSP170201611-202306

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iNSP170,ZSP170¥680201611-202306

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90068-33300iNSP170,ZSP170201611-202306

L=210

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001iNSP170,ZSP170201611-202306

L=1800(*H,L=830)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001iNSP170,ZSP170201611-202306

L=1800(*H,L=1200)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33299iNSP170,ZSP170201611-202306

L=1000(*H,L=370)

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85375-12540iNSP170,ZSP170201611-202306

8271135750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35750¥110

8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-12040¥100

9011906767

main90119-06767¥60

17 parts on this diagram · 1 diagram in section
