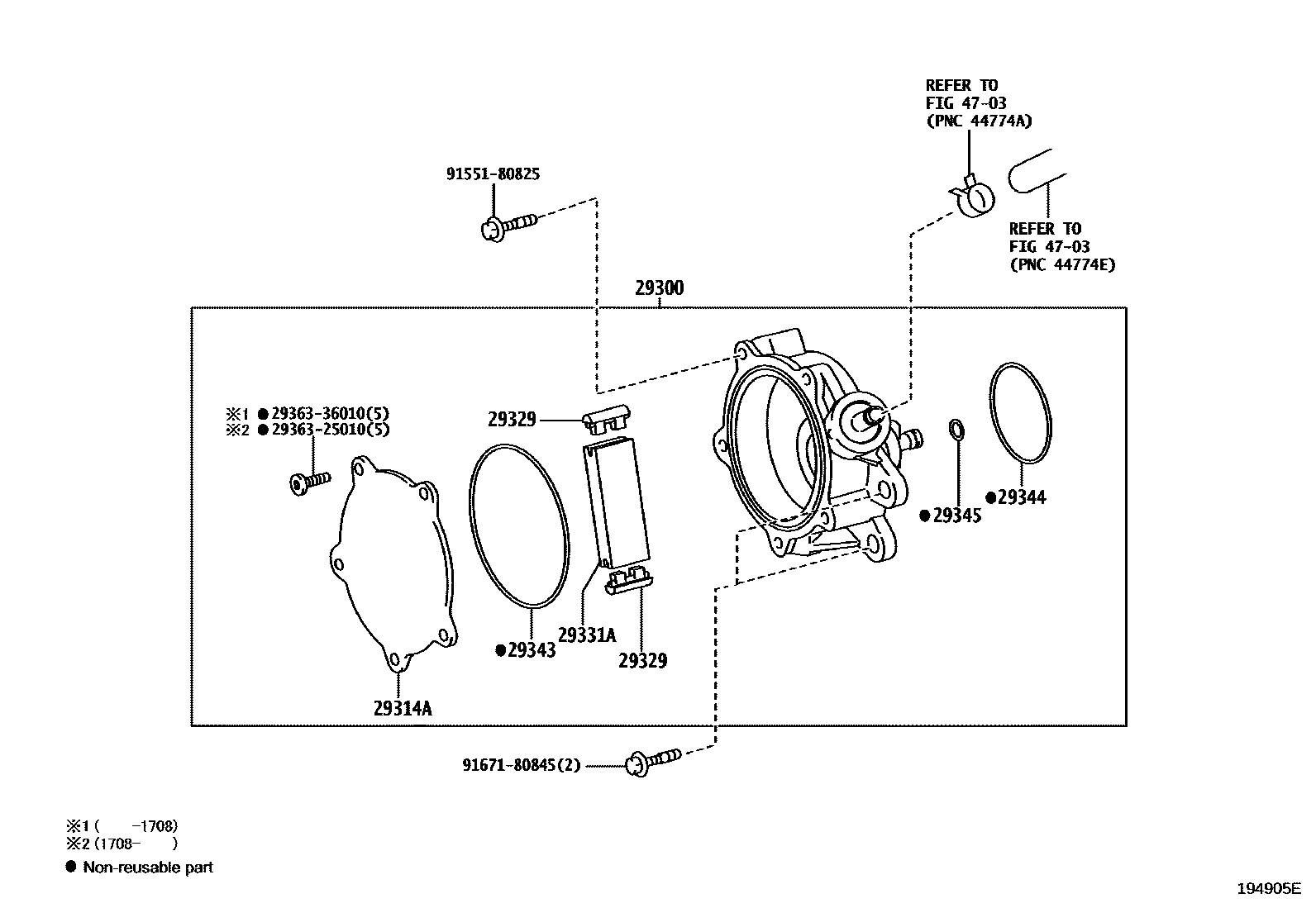

Toyota SIENTA (TAIWAN) — VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-37011i2ZRFAE..ZSP170¥14,800201611-201911

29314ACOVER, END

main29314-37011i2ZRFAE..ZSP170¥1,690201611-201911

29329CAP, VACUUM PUMP VANE

main29329-37010i2ZRFAE..ZSP170¥200201611-201911

29331AVANE, VACUUM PUMP

main29331-37010i2ZRFAE..ZSP170¥590201611-201911

29343RING, O VACUUM PUMP, NO.1

main29343-22011i2ZRFAE..ZSP170¥210201611-201911

29344RING, O VACUUM PUMP, NO.2

main29344-22011i2ZRFAE..ZSP170¥130201611-201911

29345RING, O VACUUM PUMP, NO.3

main29345-22011i2ZRFAE..ZSP170¥130201611-201911

4703

2936325010SCREW, HOLLOW VACUUM PUMP

main29363-25010¥200

2936336010SCREW, HOLLOW VACUUM PUMP

main29363-36010¥260

9155180825

main91551-80825¥80

9167180845

main91671-80845¥100

12 parts on this diagram · 1 diagram in section
