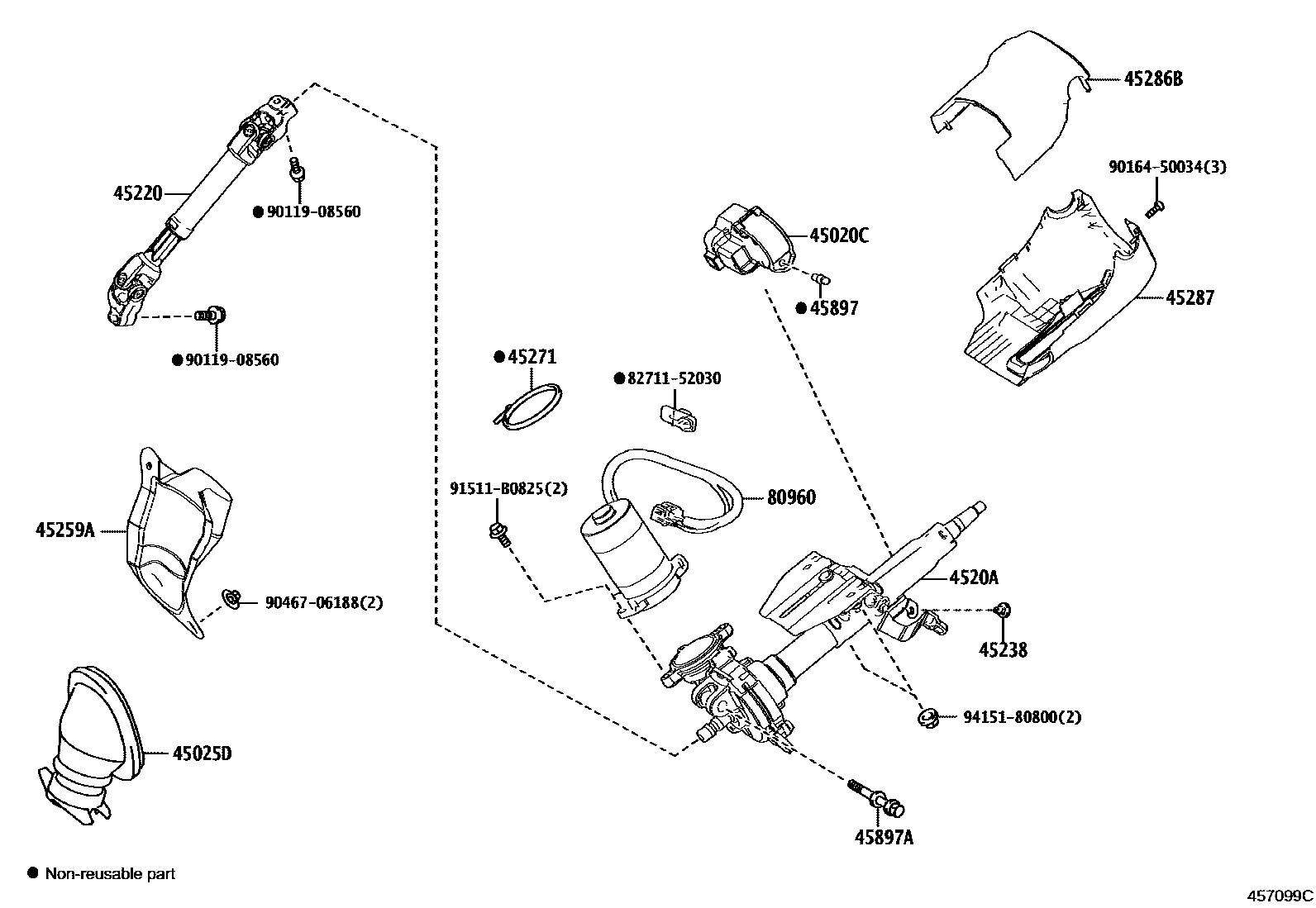

Toyota SIENTA (TAIWAN) — STEERING COLUMN & SHAFT

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-30B20iNSP170,ZSP170¥14,300201611-202210

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0D180iNSP170,ZSP170201611-201710

sub45025-0D181

main45025-0D181iNSP170,ZSP170201711-202306

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-0D360iNSP170,ZSP170201611-202210

main4520A-0D520iNSP170202210-202306

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-0D040iNSP170,ZSP170201611-202306

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-52010iNSP170,ZSP170¥70201611-202306

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-0D220iNSP170,ZSP170201611-202306

45271CLAMP, STEERING COLUMN, UPPER

main45271-52040iNSP170,ZSP170¥90201611-202306

45286BCOVER, STEERING COLUMN, UPR

main45286-0D190-C0iZSP170201611-201911

BLACK,TRIM0#,2#

main45286-0D190-C0iZSP170201611-202306

BLACK,TRIM2#

45287COVER, STEERING COLUMN, LWR

main45287-0D170-C0iZSP170201611-201911

BLACK,TRIM0#,2#

main45287-0D170-C0iZSP170201611-202306

BLACK,TRIM2#

45897BOLT, STEERING LOCK SET

main45897-12020iNSP170,ZSP170¥210201611-202210

45897ABOLT, TILT STEERING PAWL SET

main90119-10980iNSP170,ZSP170¥190201611-202306

80960MOTOR ASSY, POWER STEERING

main80960-02110iNSP170,ZSP170201611-201911

main80960-02170iNSP170201911-202306

8271152030WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52030¥210

9011908560

main90119-08560¥110

9016450034

main90164-50034¥70

9046706188

main90467-06188¥160

91511B0825

main91511-B0825¥140

9415180800

main94151-80800¥80

18 parts on this diagram · 1 diagram in section
