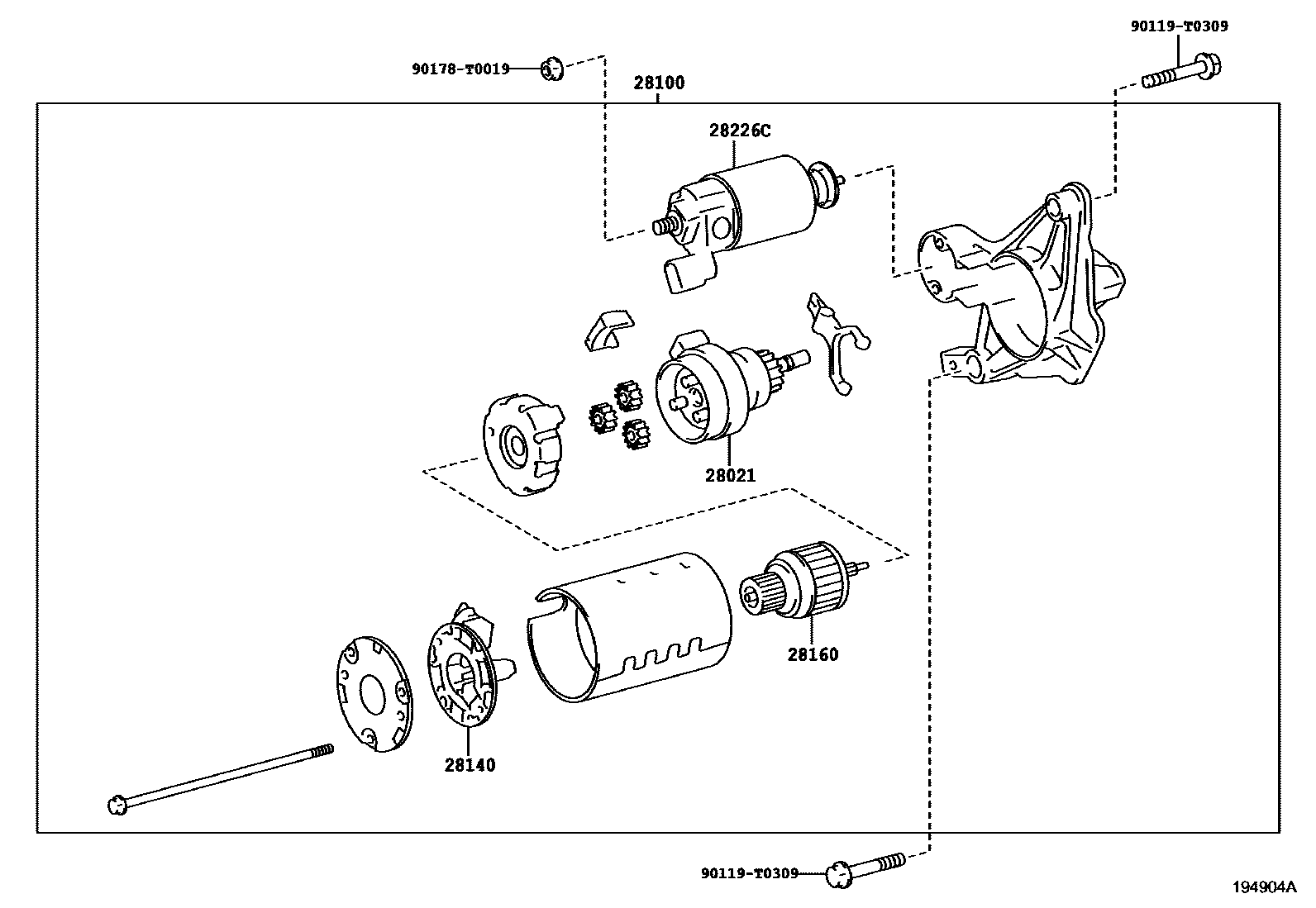

Toyota SIENTA (TAIWAN) — STARTER

0001 112V 1.0KW 0002 112V 1.0KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-0Y300i2NRFE..NSP170201611-202306

main28021-37130i2ZRFAE..ZSP170201611-201911

28100STARTER ASSY

main28100-0T210i2ZRFAE..ZSP170201611-201911

12V 1.0KW

main28100-0Y300i2NRFE..NSP170201611-202306

12V 1.0KW

28140HOLDER ASSY, STARTER BRUSH

main28140-0Y300i2NRFE..NSP170201611-202306

main28140-21070i2ZRFAE..ZSP170201611-201911

28160ARMATURE ASSY, STARTER

main28160-0Y300i2NRFE..NSP170201611-202306

main28160-47180i2ZRFAE..ZSP170¥8,900201611-201911

28226CSTARTER KIT, REPAIR SERVICE, NO.2

main28226-0Y340i2NRFE..NSP170201611-202306

main28226-37150i2ZRFAE..ZSP170201611-201911

90119T0309

main90119-T0309

90178T0019

main90178-T0019

7 parts on this diagram · 2 diagrams in section
