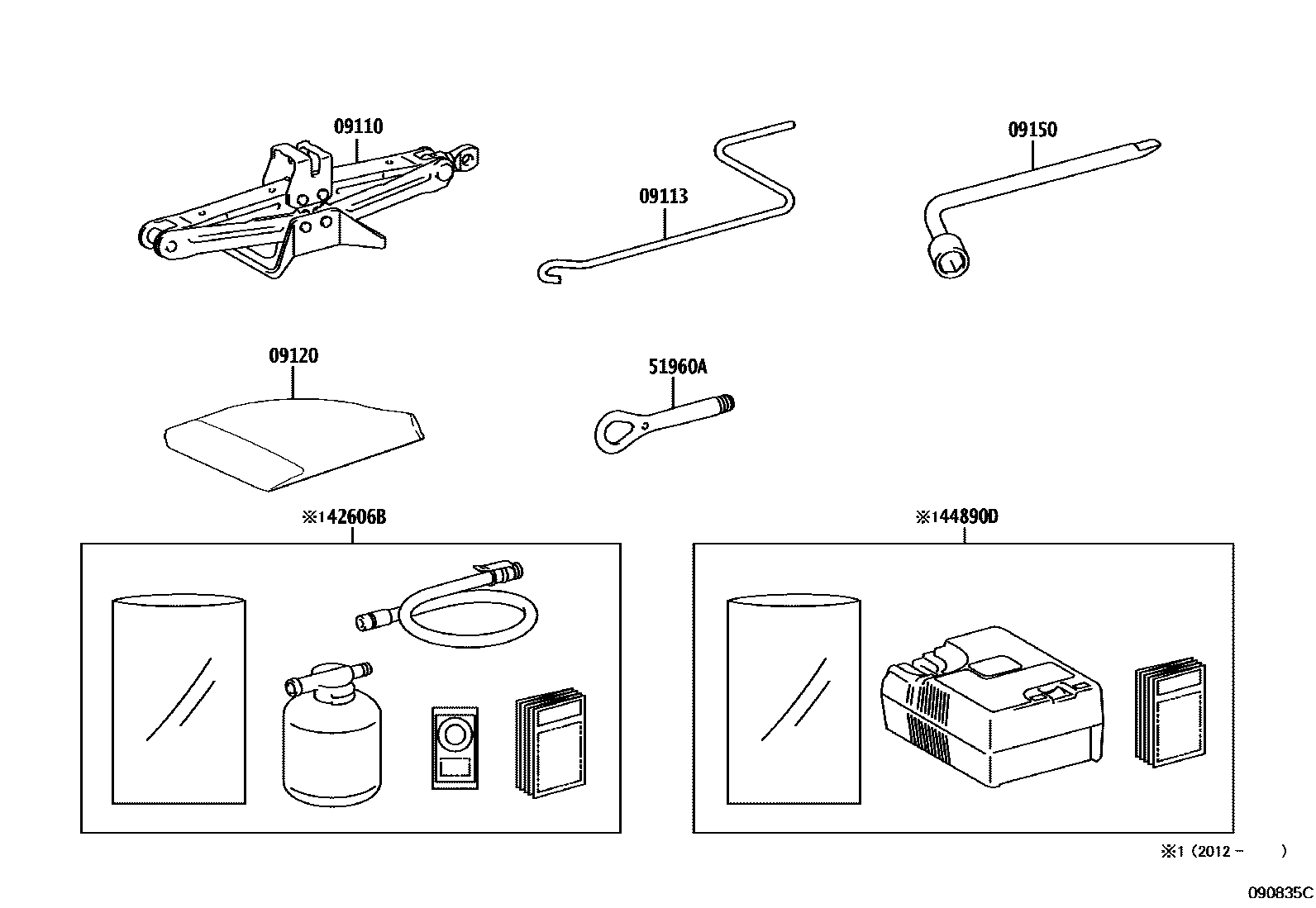

Toyota SIENTA (TAIWAN) — STANDARD TOOL

09110JACK ASSY

main09111-12180iNSP170,ZSP170201611-201911

09113HANDLE, JACK

main09113-20050iNSP170,ZSP170¥450201611-201911

09120BAG, TOOL

main09120-0D120iNSP170,ZSP170201611-201911

09150WRENCH, HUB NUT BOX

main09150-16010iNSP170,ZSP170201611-201911

main09150-16010iNSP170,ZSP170201911-202012

42606BREPAIR KIT, TUBELESS TIRE

main42606-02030iNSP170,ZSP170202201-202211

(L)

main42606-02030iNSP170,ZSP170202201-202211

SPARE TIRE-T105/70D16,(L)

main42606-02040iNSP170,ZSP170202211

main42606-12040iNSP170,ZSP170202201-202211

(J)

sub42606-42080¥3,600

main42606-12040iNSP170,ZSP170202012-202201

SPARE TIRE-T105/70D16

sub42606-42080¥3,600

44890DCOMPRESSOR ASSY, AIR

main44890-02020iNSP170,ZSP170202201-202211

(L)

main44890-02030iNSP170,ZSP170202211

main44890-12030iNSP170,ZSP170202201-202211

(J)

sub44890-42050¥7,500

main44890-12030iNSP170,ZSP170202012-202201

sub44890-42050¥7,500

51960AHOOK ASSY, REAR

main51961-12021iZSP170..W¥1,720201911

main51961-12021iZSP170..D,N,Q¥1,720202012

main51961-12021iNSP170,ZSP170¥1,720201611-201911

main51961-12021iNSP170,ZSP170¥1,720201911-202007

main51961-12021iNSP170¥1,720202012-202306

7 parts on this diagram · 1 diagram in section
