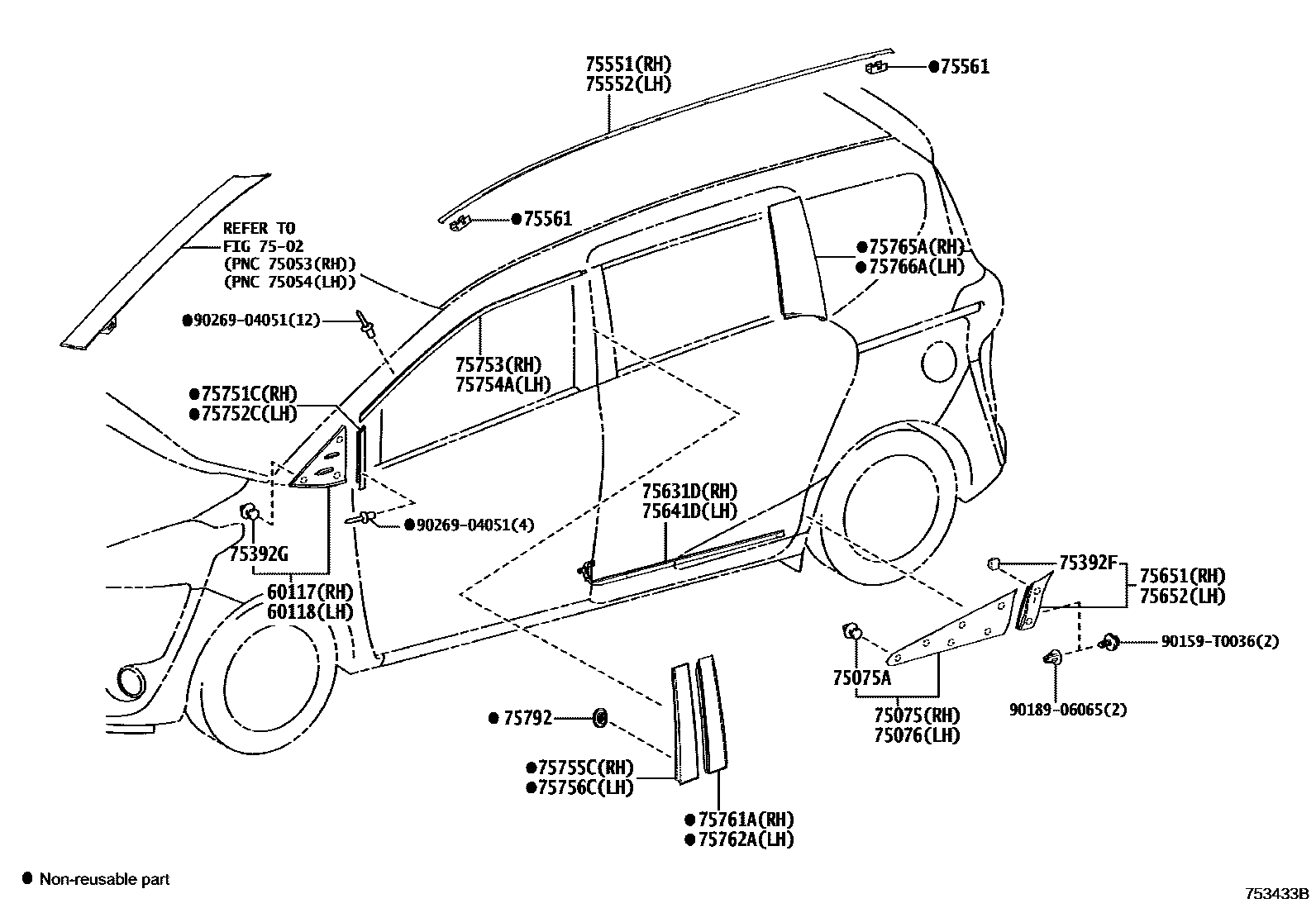

Toyota SIENTA (TAIWAN) — SIDE MOULDING
60117COVER SUB-ASSY, FRONT PILLAR, UPR RH
60118COVER SUB-ASSY, FRONT PILLAR, UPR LH
7502
75075MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH
75075ACLIP(FOR REAR DOOR OUTSIDE MOULDING)
75076MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH
75392FRETAINER, OUTSIDE MOULDING
75392GRETAINER, OUTSIDE MOULDING, NO.1
75551MOULDING, ROOF DRIP SIDE FINISH, RH
NO PAINT REQ.
75552MOULDING, ROOF DRIP SIDE FINISH, LH
NO PAINT REQ.
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75631DMOULDING, SIDE PANEL, LOWER NO.1 RH
75641DMOULDING, SIDE PANEL, LOWER NO.1 LH
75651MOULDING, QUARTER, OUTSIDE RH
75652MOULDING, QUARTER, OUTSIDE LH
75751CMOULDING, FRONT DOOR WINDOW FRAME, FRONT RH
75752CMOULDING, FRONT DOOR WINDOW FRAME, FRONT LH
75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
NO PAINT REQ.
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
NO PAINT REQ.
75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH
75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH
75792CLIP, DOOR WINDOW FRAME MOULDING
(L)
(J)
90159T0036
main90159-T0036
9018906065
9026904051
29 parts on this diagram · 1 diagram in section
