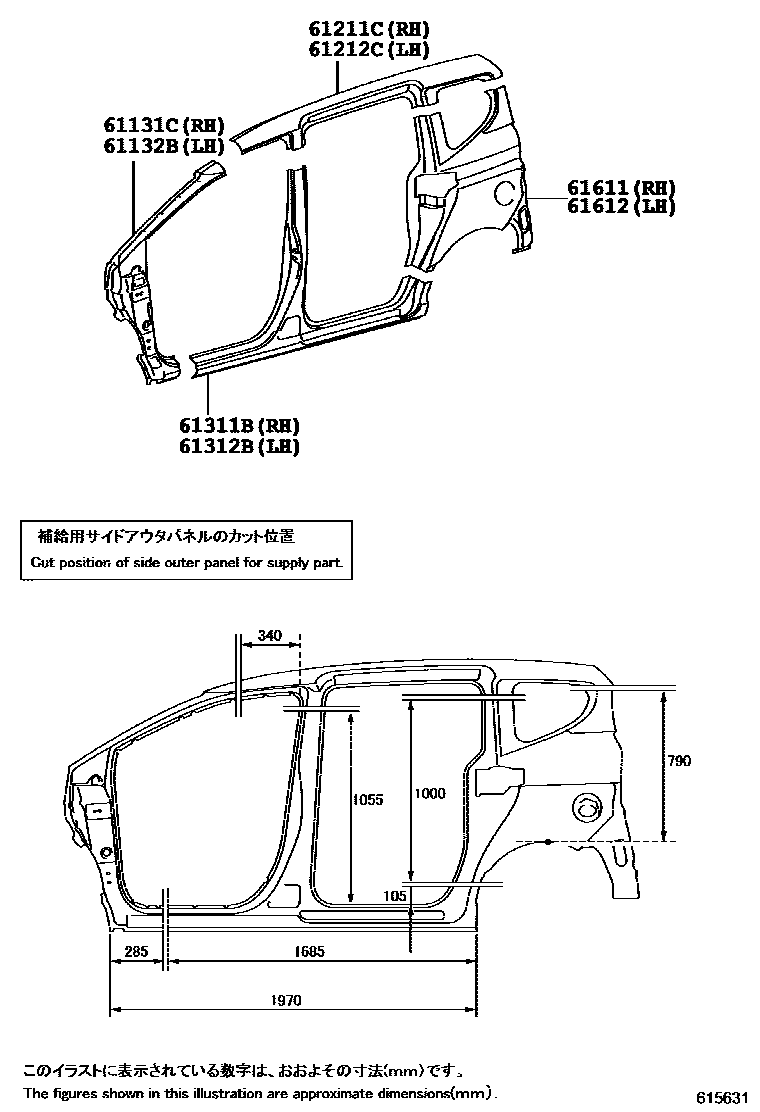

Toyota SIENTA (TAIWAN) — SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL,RH 0003 1INNER PANEL,LH

61131CPILLAR, FRONT BODY, OUTER RH

main61131-0D190iNSP170,ZSP170201611-202306

61132BPILLAR, FRONT BODY, OUTER LH

main61132-0D190iNSP170,ZSP170201611-202306

61211CRAIL, ROOF SIDE, RH

main61211-0D180iNSP170,ZSP170201611-202306

61212CRAIL, ROOF SIDE, LH

main61212-0D360iNSP170,ZSP170201611-202306

61311BPILLAR, CENTER BODY, OUTER RH

main61311-0D120iNSP170,ZSP170201611-202306

61312BPILLAR, CENTER BODY, OUTER LH

main61312-0D120iNSP170,ZSP170201611-202306

61611PANEL, QUARTER, RH

main61611-0D290iNSP170,ZSP170201611-202306

61612PANEL, QUARTER, LH

main61602-0D400iNSP170,ZSP170201611-202306

8 parts on this diagram · 3 diagrams in section
