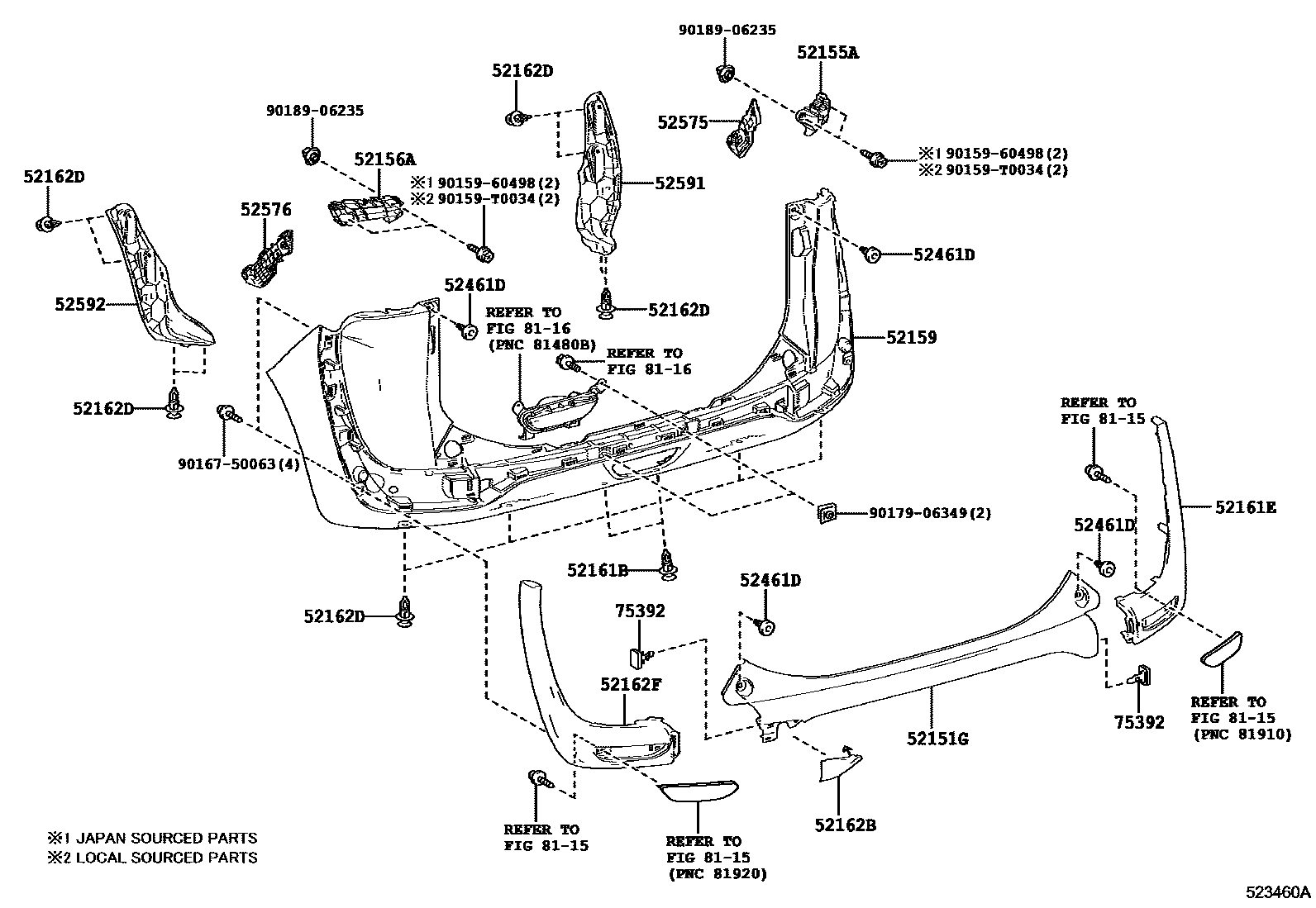

Toyota SIENTA (TAIWAN) — REAR BUMPER & BUMPER STAY
52151GEXTENSION, REAR BUMPER
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
52161BPIECE, REAR BUMPER
52161EEXTENSION, REAR BUMPER SIDE, RH
52162BPLATE, REAR BUMPER, NO.1
52162DPIECE, REAR BUMPER
52162FEXTENSION, REAR BUMPER SIDE, LH
52461DCUSHION, REAR BUMPER
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
75392RETAINER, OUTSIDE MOULDING
8115
8116
9015960498
90159T0034
main90159-T0034
9016750063
9017906349
9018906235
22 parts on this diagram · 2 diagrams in section
