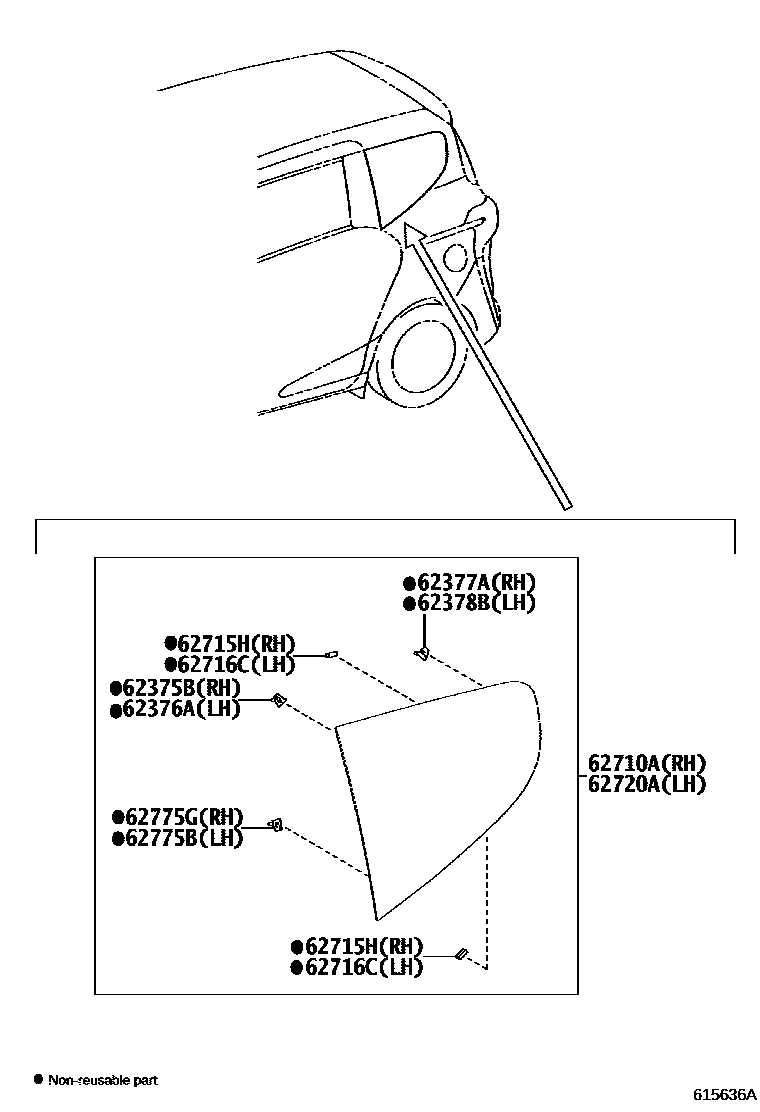

Toyota SIENTA (TAIWAN) — QUARTER WINDOW

62375BCLIP, SIDE WINDOW, NO.1

main62775-0D120iNSP170,ZSP170201611-202306

62376ACLIP, SIDE WINDOW, NO.2

main62775-0D150iNSP170,ZSP170201611-202306

62377ACLIP, SIDE WINDOW, NO.3

main62775-0D110iNSP170,ZSP170201611-202306

62378BCLIP, SIDE WINDOW, NO.4

main62775-0D140iNSP170,ZSP170201611-202306

62710AWINDOW ASSY, QUARTER, RH

main62710-0D040iNSP170,ZSP170201611-202306

62715HDAM, QUARTER WINDOW GLASS ADHESIVE, RH

main68294-26030iNSP170,ZSP170¥200201611-202306

62716CDAM, QUARTER WINDOW GLASS ADHESIVE, LH

main68294-26030iNSP170,ZSP170¥200201611-202306

62720AWINDOW ASSY, QUARTER, LH

main62720-0D040iNSP170,ZSP170201611-202306

62775BCLIP, QUARTER WINDOW, LH

main62775-0D130iNSP170,ZSP170201611-202306

62775GCLIP, QUARTER WINDOW, RH

main62775-0D100iNSP170,ZSP170201611-202306

10 parts on this diagram · 1 diagram in section
