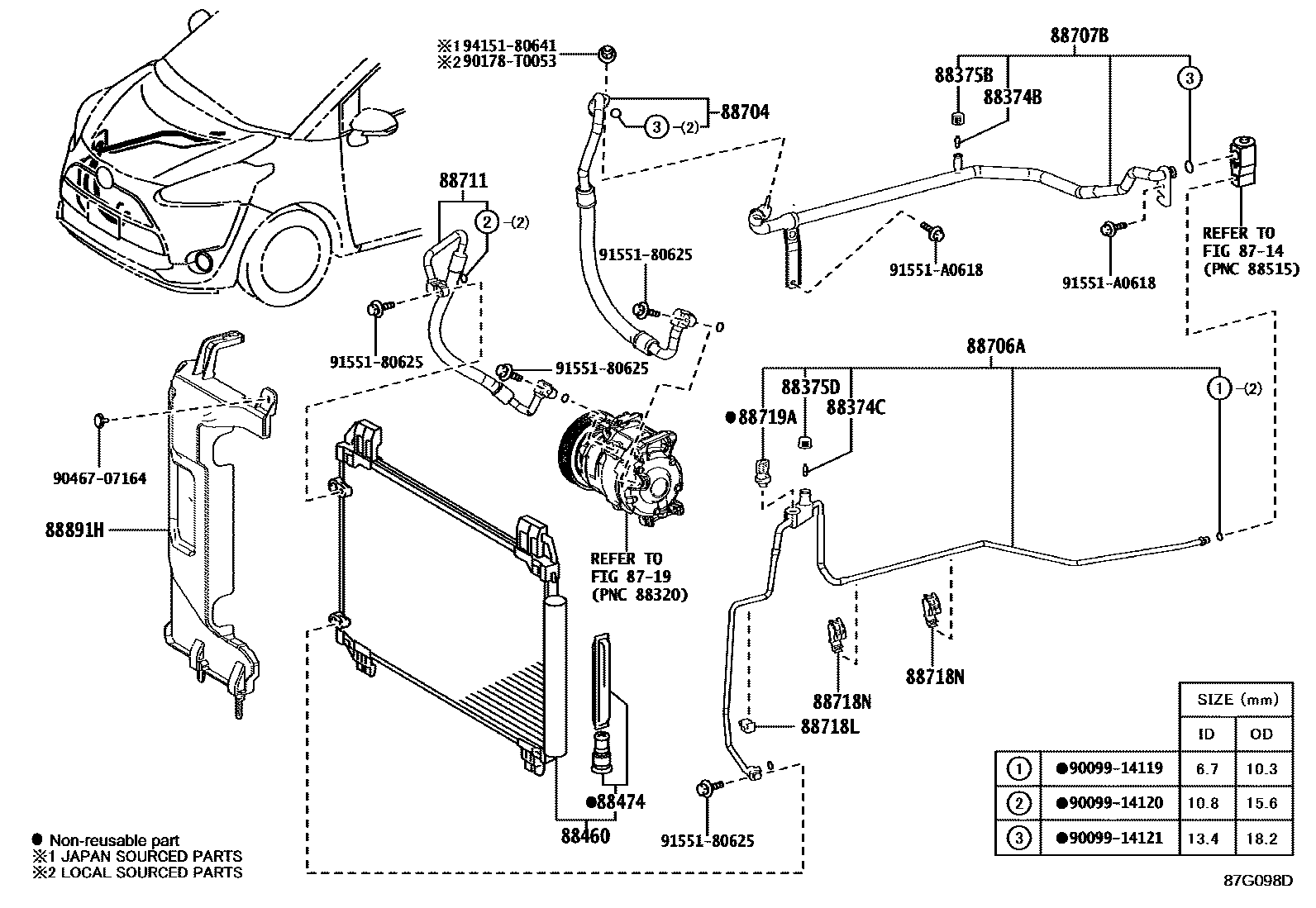

Toyota SIENTA (TAIWAN) — HEATING & AIR CONDITIONING - COOLER PIPING
8714
8719
88374BVALVE, SERVICE, NO.1
88374CVALVE, SERVICE, NO.2
88375BCAP, SERVICE VALVE, NO.1
88375DCAP, SERVICE VALVE, NO.2
88460CONDENSER ASSY, COOLER
88474DRYER, COOLER
88704HOSE SUB-ASSY, SUCTION
88706ATUBE SUB-ASSY, LIQUID, A
88707BTUBE SUB-ASSY, SUCTION, B
88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88718LCLAMP, PIPING
88718NCLAMP, PIPING
88719ASENSOR, AIR CONDITIONER PRESSURE
88891HCOVER, COOLER, NO.1
9009914119
main90099-14119
9009914120
9009914121
main90099-14121
90178T0053
main90178-T0053
9046707164
9155180625
91551A0618
9415180641
24 parts on this diagram · 4 diagrams in section
