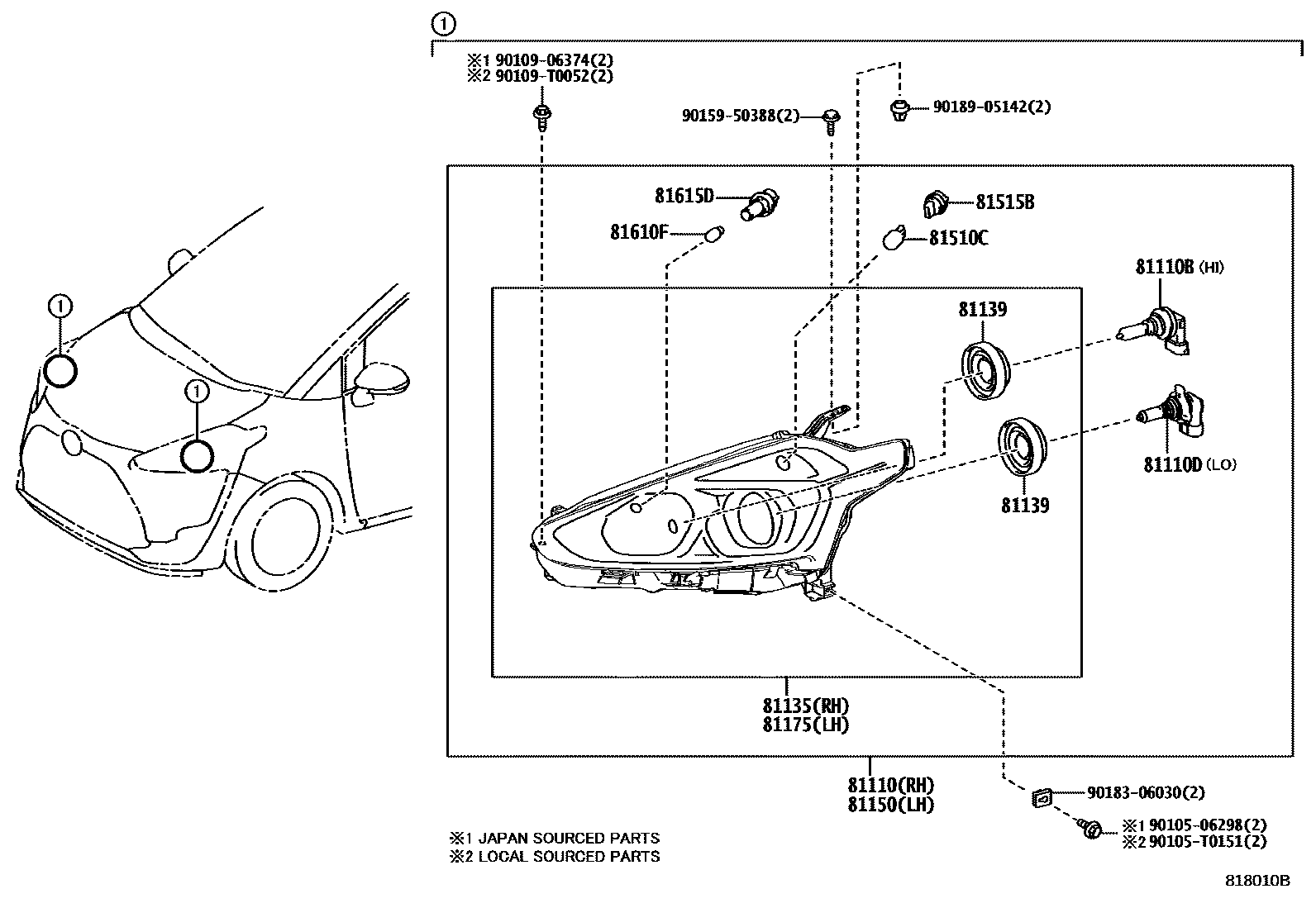

Toyota SIENTA (TAIWAN) — HEADLAMP

0001 1HALOGEN HEADLAMP 0002 1LED HEADLAMP 0003 1LED HEADLAMP

81110HEADLAMP ASSY, RH

main81110-0DE80iNSP170,ZSP170..D,N201611-201911

main81110-0DP00iZSP170..Q201911-202306

main81110-52N50iZSP170..Q201911-202012

sub81110-52N51

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046iNSP170,ZSP170..D,N¥2,000201611-202306

12V65W(SAE),60W(ECE)

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13085iNSP170¥1,800201611-202306

12V 55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-0DE80iNSP170,ZSP170..D,N201611-201911

main81130-0DP00iZSP170..Q201911-202306

main81130-52L10iZSP170..Q,U201611-201701

sub81130-52L11

main81130-52L11iZSP170..Q,U201701-201911

main81130-52N50iZSP170..Q201911-202012

sub81130-52N51

81139COVER, HEADLAMP SOCKET

main90075-65006iNSP170,ZSP170..D,N¥460201611-202306

81150HEADLAMP ASSY, LH

main81150-0DE80iNSP170,ZSP170..D,N201611-201911

main81150-0DP00iNSP170201911-202306

main81150-52N50iZSP170..Q201911-202012

sub81150-52N51

81175UNIT ASSY, HEADLAMP, LH

main81170-0DE80iNSP170,ZSP170..D,N201611-201911

main81170-0DP00iZSP170..D,N,W201911-202306

main81170-52L10iZSP170..Q,U201611-201701

sub81170-52L11

main81170-52L11iZSP170..Q,U201701-201911

main81170-52N50iZSP170..Q201911-202012

sub81170-52N51

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15011iZSP170..Q,U¥300201611-202012

12V 21W,AMBER

main90981-15021iZSP170..D,N,W¥300201611-202306

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main81515-42050iZSP170..Q¥660201611-202012

main90075-60028iNSP170,ZSP170..D,N¥610201611-202306

81610FBULB(FOR CLEARANCE LAMP)

main90981-11069iZSP170..Q¥110201611-202306

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60077iNSP170,ZSP170..D,N¥610201611-202306

9010506298

main90105-06298¥60

90105T0151

main90105-T0151¥60

9010906374

main90109-06374¥60

90109T0052

main90109-T0052

9015950388

main90159-50388¥50

9018306030

main90183-06030¥70

9018905142

main90189-05142¥70

18 parts on this diagram · 3 diagrams in section
