Toyota SIENTA (TAIWAN) — ENGINE OIL PUMP

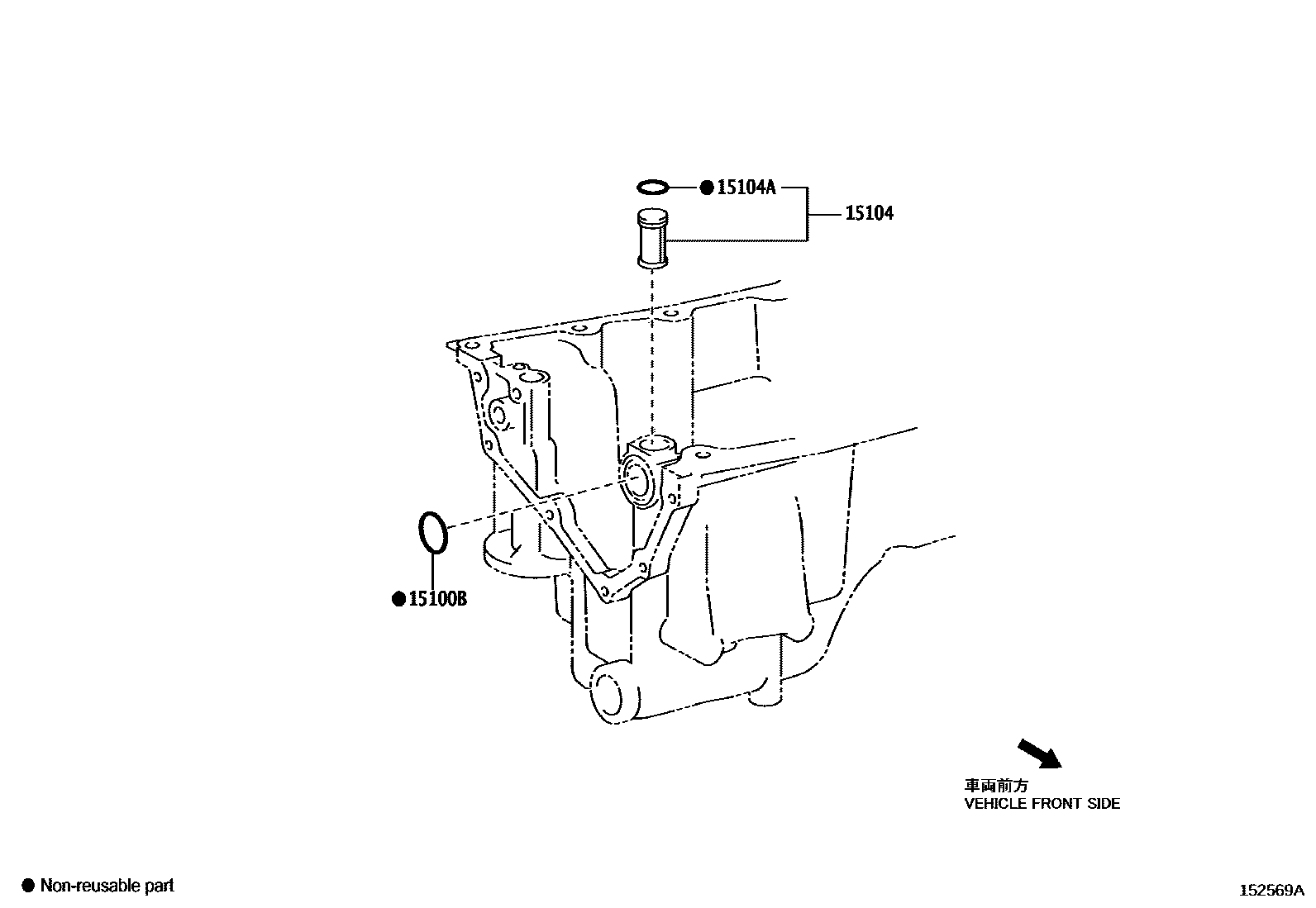

Parts diagram

15100PUMP ASSY, OIL

main15100-37021i¥11,800201611-201911

15100BRING, O(FOR OIL PUMP)

main90301-T0059i201611-202306

15104STRAINER SUB-ASSY, OIL

main15104-0Y010i201611-202306

15104ARING, O(FOR OIL STRAINER)

main90301-T0061i201611-202306

4 parts on this diagram · 2 diagrams in section
