Toyota SIENTA (JPP) — WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0003 1ENGINE 0004 1ENGINE 0005 1INSTRUMENT PANEL 0006 1DOOR 0007 1FLOOR & ROOF 0008 1HIGH-TENSION CABLE 0009 1CLAMP & BRACKET 0010 1CONNECTOR 1/2 0011 1CONNECTOR 2/2

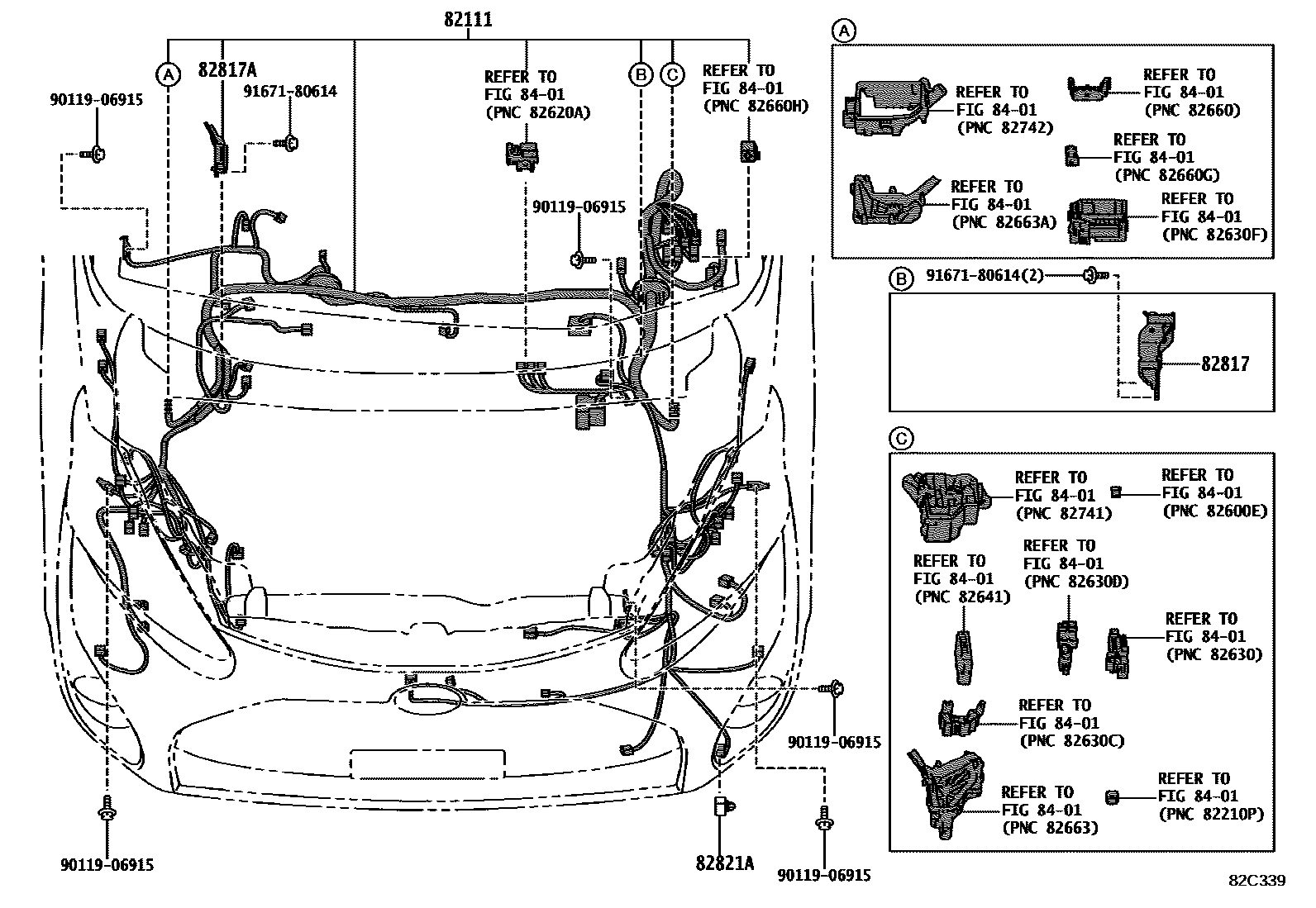

82111WIRE, ENGINE ROOM MAIN

main82111-5D870iNSP170..N¥138,000201506-201606

sub82111-5D871¥115,000

main82111-5D871iNSP170..N¥115,000201607-201809

main82111-5D872iNSP170..N¥126,000201809-201904

sub82111-5D873¥125,000

main82111-5D873iNSP170..N¥125,000201905-202006

main82111-5D874iNSP170..N¥95,300202006-202207

main82111-5D880iNSP170..Q¥152,000201506-201606

sub82111-5D881¥126,000

main82111-5D881iNSP170..Q¥126,000201607-201809

main82111-5D882iNSP170..Q¥140,000201809-201908

sub82111-5D883¥140,000

main82111-5D883iNSP170..Q¥140,000201909-202006

main82111-5DA20iNHP170¥186,000201507-201606

sub82111-5DA21¥155,000

main82111-5DA21iNHP170¥155,000201607-201809

main82111-5DA22iNHP170¥169,000201809-201904

sub82111-5DA23¥170,000

main82111-5DA23iNHP170¥170,000201905-202006

main82111-5DA24iNHP170..N¥141,000202006-202207

main82115-52A20iNHP170..Q¥141,000202006-202207

HEADLAMP-LED(*CL=BULB)

main82115-52A30iNSP170..Q¥104,000202006-202207

HEADLAMP-LED(*CL=BULB)

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-52A20iNSP170¥1,410201506-202207

main82817-52D20iNHP170¥1,090201507-202207

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-52C00iNSP170¥510201506-202207

main82817-52D10iNHP170¥1,160201507-202207

82821ACOVER, CONNECTOR

main82119-52060iNHP170,NSP170¥400201809-202207

8401

9011906915

main90119-06915¥60

9167180614

main91671-80614¥60

7 parts on this diagram · 11 diagrams in section
