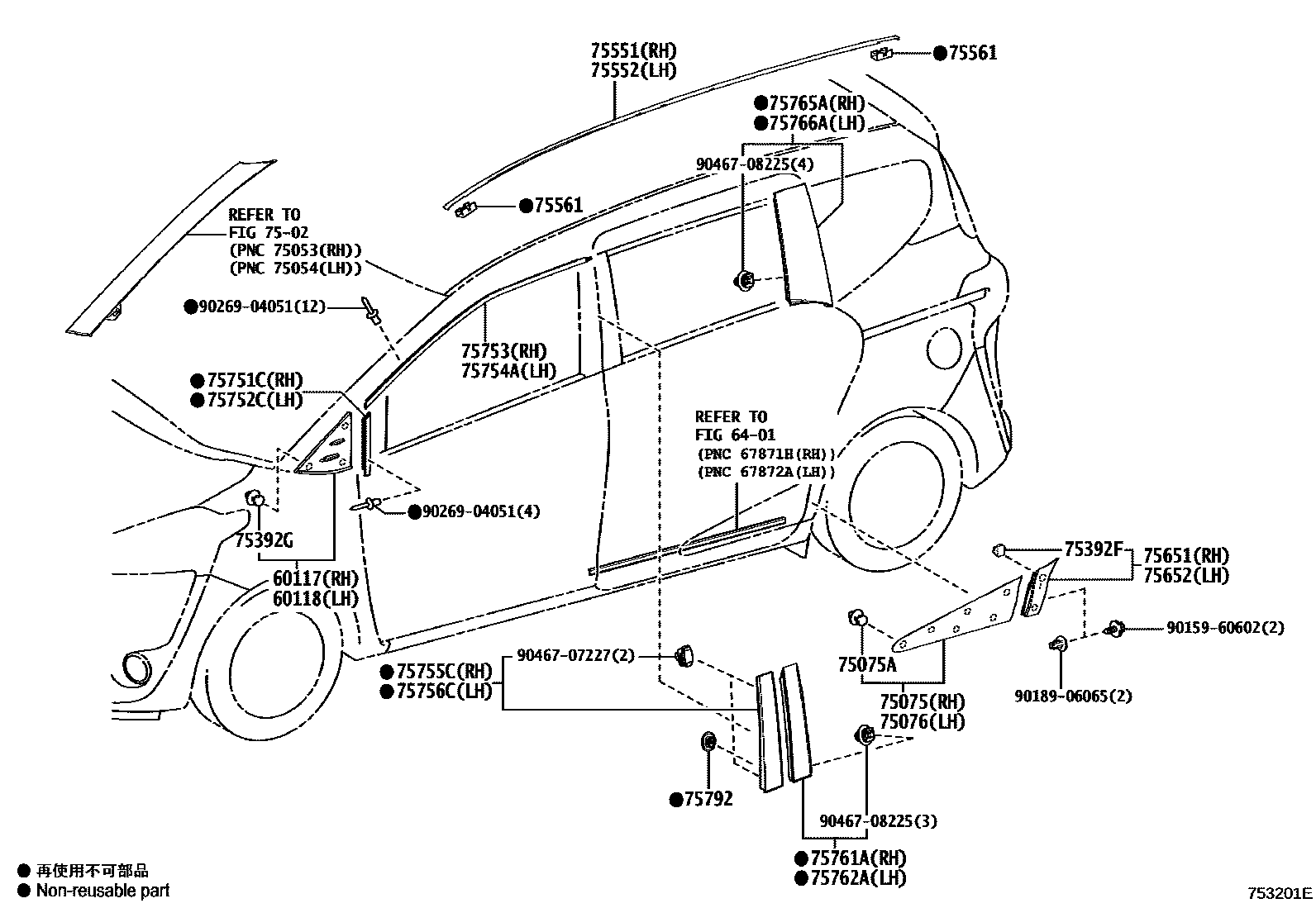

Toyota SIENTA (JPP) — SIDE MOULDING
60117COVER SUB-ASSY, FRONT PILLAR, UPR RH
60118COVER SUB-ASSY, FRONT PILLAR, UPR LH
6401
7502
75075MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH
BLACK MATERIAL
75075ACLIP(FOR REAR DOOR OUTSIDE MOULDING)
75076MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH
BLACK MATERIAL
75392FRETAINER, OUTSIDE MOULDING
75392GRETAINER, OUTSIDE MOULDING, NO.1
75551MOULDING, ROOF DRIP SIDE FINISH, RH
NO PAINT REQ.
75552MOULDING, ROOF DRIP SIDE FINISH, LH
NO PAINT REQ.
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75651MOULDING, QUARTER, OUTSIDE RH
BLACK MATERIAL
75652MOULDING, QUARTER, OUTSIDE LH
BLACK MATERIAL
75751CMOULDING, FRONT DOOR WINDOW FRAME, FRONT RH
75752CMOULDING, FRONT DOOR WINDOW FRAME, FRONT LH
75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
NO PAINT REQ.
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
NO PAINT REQ.
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
NO PAINT REQ.
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
NO PAINT REQ.
75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH
75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH
75792CLIP, DOOR WINDOW FRAME MOULDING
9015960602
9018906065
9026904051
9046707227
9046708225
30 parts on this diagram · 1 diagram in section
