Toyota SIENTA (JPP) — REAR COMBINATION LAMP

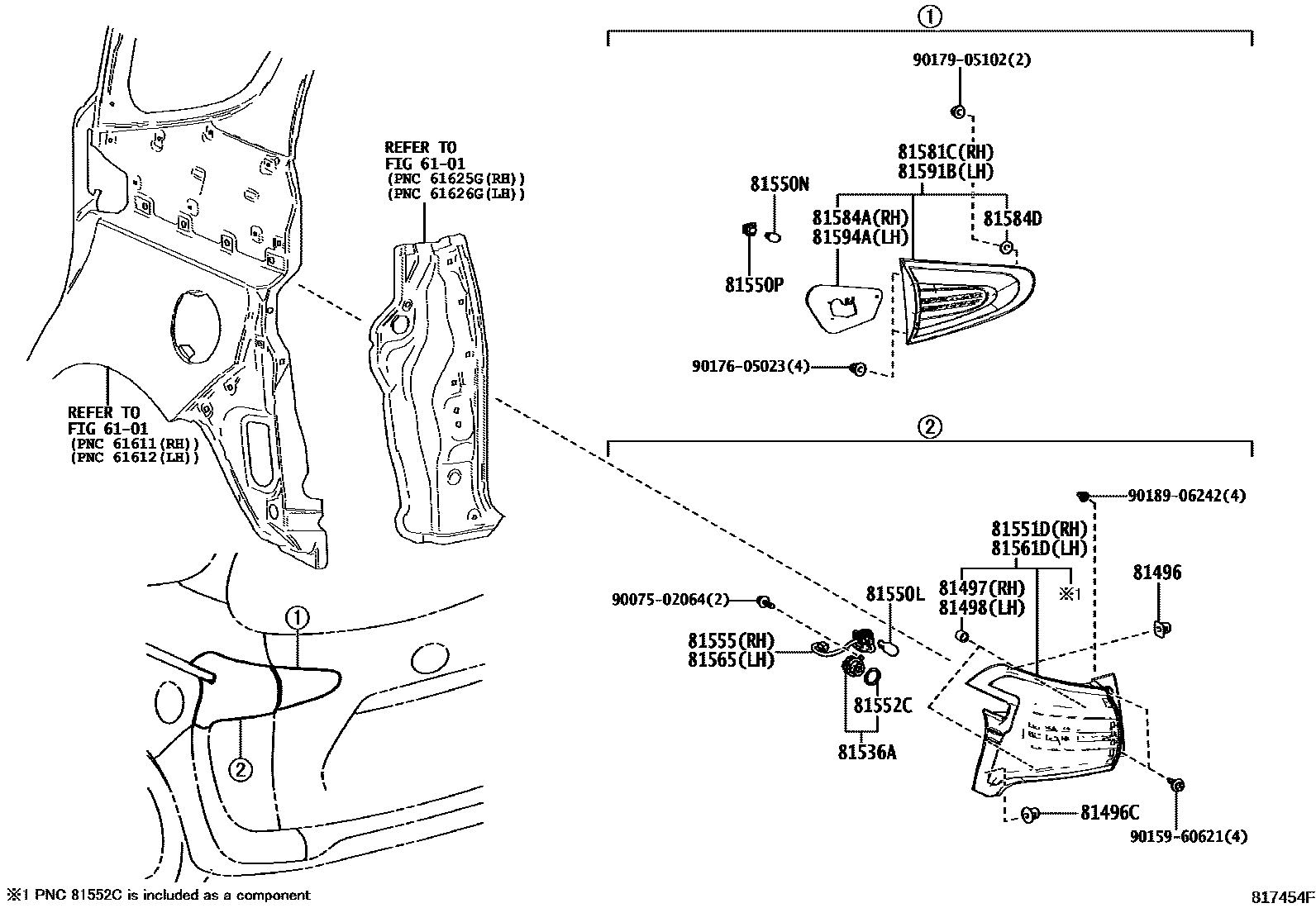

Parts diagram

6101

81496GUIDE, REAR COMBINATION LAMP

main76817-26040i¥110201506-202207

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-52020i¥70201506-202207

81497COVER, REAR COMBINATION LAMP, RH

main90075-15512i¥610201506-202207

81498COVER, REAR COMBINATION LAMP, LH

main90075-15512i¥610201506-202207

81536ALED, REAR COMBINATION LAMP

main81536-15120i¥2,850201809-202207

main81536-52C80i¥2,590201506-201809

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021i¥300201506-202207

12V 21W,AMBER

81550NBULB, BACK UP LAMP

main90981-11059i¥200201506-202207

12V 16W

81550PSOCKET, BACK UP LAMP

main90075-99005i¥610201506-202207

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-52C80i¥16,300201506-201809

main81551-52E30i¥15,000201809-202207

81552CGASKET, REAR COMBINATION LAMP

main90075-68010i¥610201506-201809

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-52C80i¥1,680201506-201809

main81555-52E30i¥1,670201809-202207

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-52C80i¥16,300201506-201809

main81561-52E30i¥15,000201809-202207

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-52C80i¥1,680201506-201809

main81555-52E30i¥1,670201809-202207

81581CLENS AND BODY, REAR LAMP, RH

main81581-52320i¥8,100201506-201809

main81581-52380i¥8,100201809-202207

81584AGASKET, REAR LAMP RH

main81584-52320i¥750201506-201809

main81584-52380i¥750201809-202207

81584DGASKET, REAR LAMP

main81554-12A00i¥380201506-202207

81591BLENS AND BODY, REAR LAMP, LH

main81591-52320i¥8,100201506-201809

main81591-52380i¥8,100201809-202207

81594AGASKET, REAR LAMP LH

main81594-52320i¥750201506-201809

main81594-52380i¥750201809-202207

9007502064

main90075-02064¥60

9015960621

main90159-60621¥60

9017605023

main90176-05023¥80

9017905102

main90179-05102¥90

9018906242

main90189-06242¥70

24 parts on this diagram · 4 diagrams in section
