Toyota SIENTA (JPP) — OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008iNSP170¥160201506-202207

89413MSENSOR, TRANSMISSION REVOLUTION, (NOUT)

main89413-12020iNSP170¥4,210201506-202207

89413NSENSOR, TRANSMISSION REVOLUTION, (NT)

main89413-50020iNSP170¥4,210201506-202207

89413PSENSOR, TRANSMISSION REVOLUTION, (NIN)

main89413-60020iNSP170¥5,300201506-201807

sub89413-60021¥4,010

main89413-60021iNSP170¥4,010201808-202207

89637KSENSOR, OIL PRESSURE

main89637-63010iNSP170¥5,700201506-202207

9155180616

main91551-80616¥60

91611B0616

main91611-B0616¥110

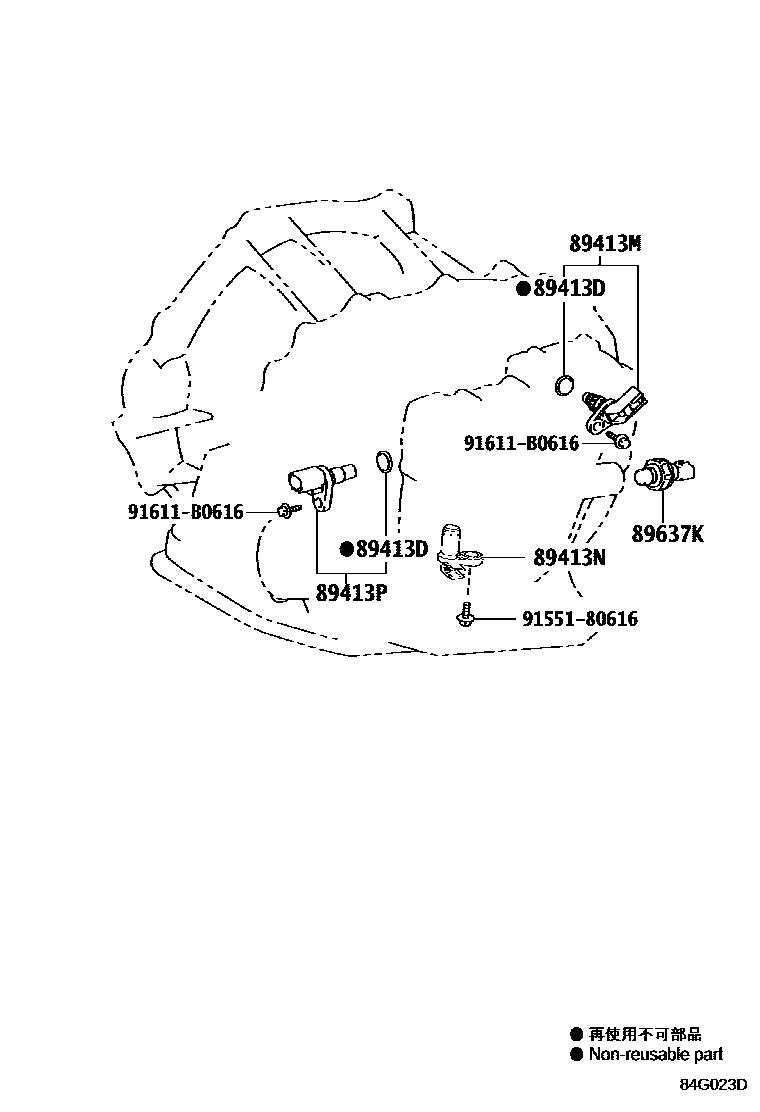

7 parts on this diagram · 1 diagram in section
