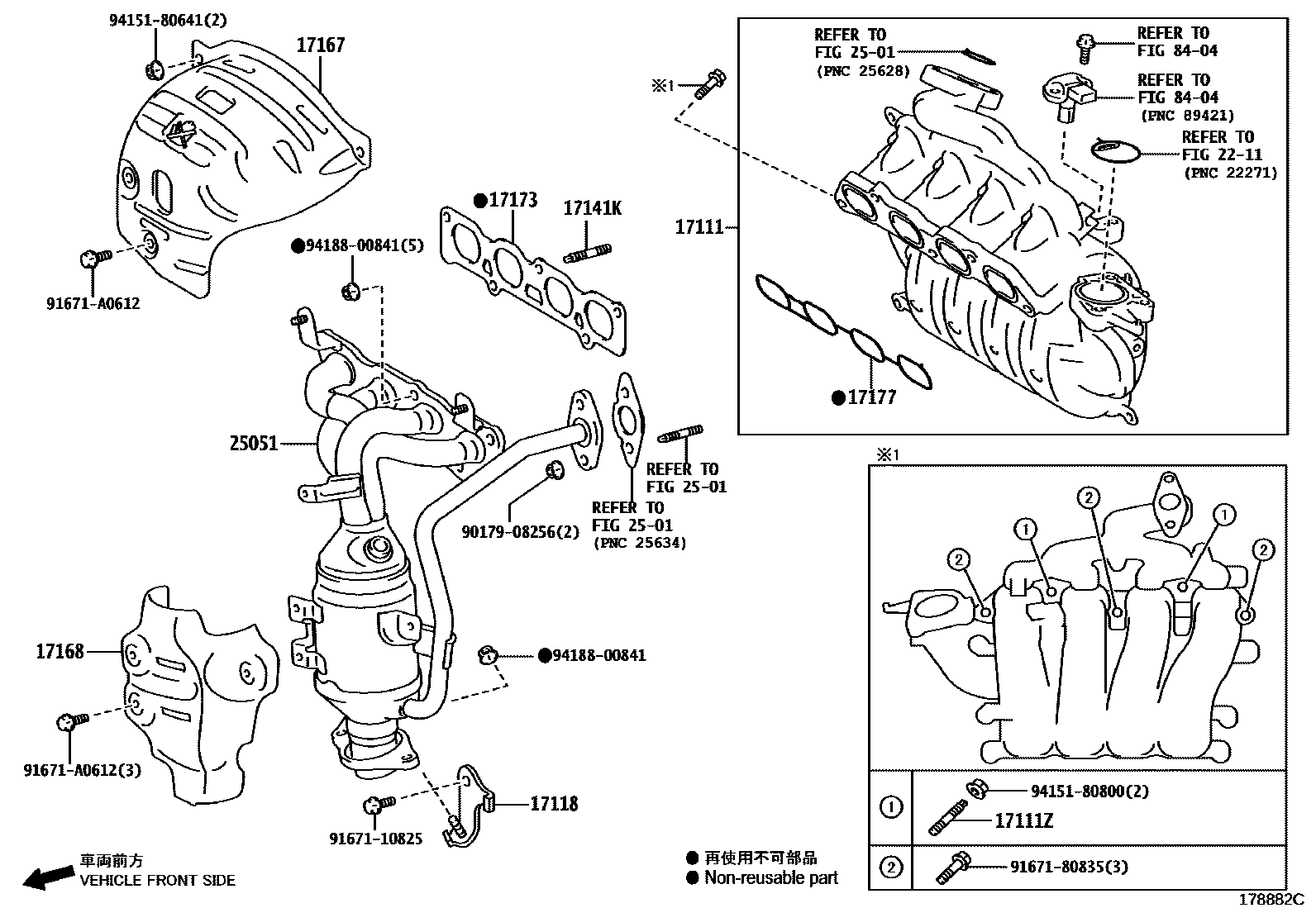

Toyota SIENTA (JPP) — MANIFOLD
17111MANIFOLD, INTAKE
17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17118STAY, MANIFOLD
17141MANIFOLD, EXHAUST
17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
2211
2501
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
8404
9017908256
9167110825
9167180835
91671A0612
9415180641
9415180800
9418800841
20 parts on this diagram · 2 diagrams in section
