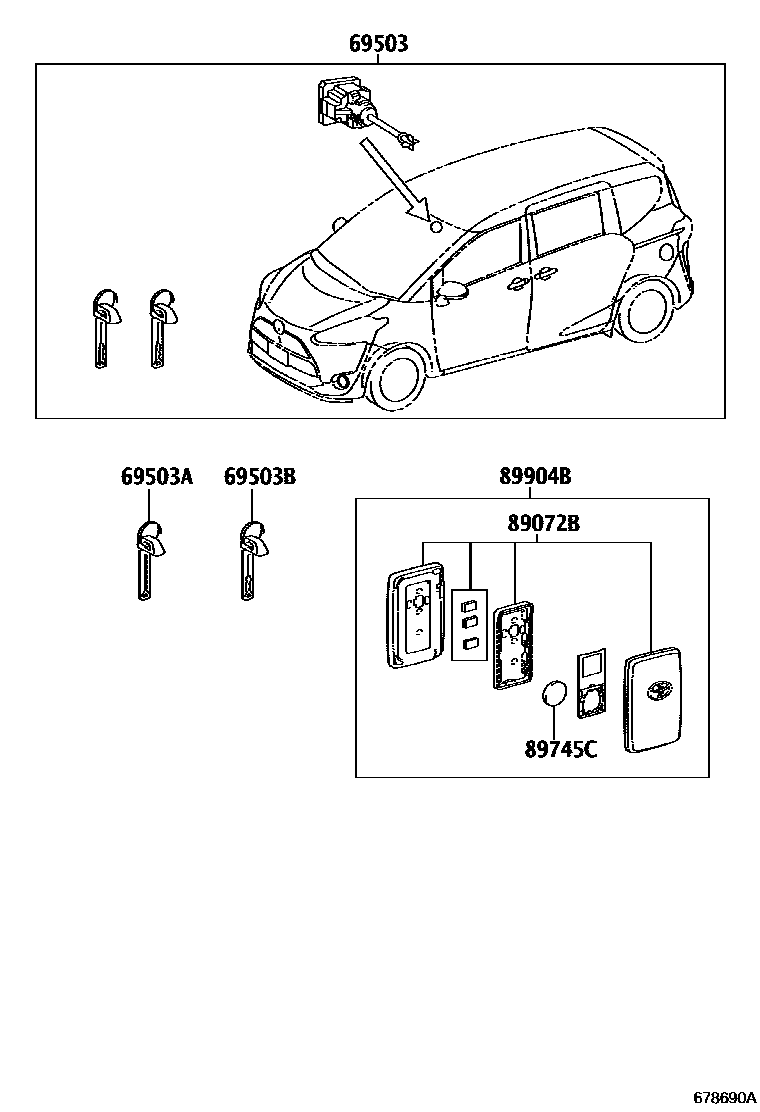

Toyota SIENTA (JPP) — LOCK CYLINDER SET

0001 1WITH(SMART ENTRY) 0002 1WITHOUT(SMART ENTRY)

69503CYLINDER SET, LOCK

main69005-52N80iNHP170,NSP170..N201506-201809

main69005-52Q50iNHP170..N201809-202207

SMART ENTRY-WITH(FRONT DOOR & BACK DOOR)

main69005-52Q50iNHP170,NSP170..Q201506-201809

main69005-52S00iNHP170,NSP170..N201809-202207

69503AKEY, BLANK

main69515-33100iNHP170,NSP170..Q¥7,200201506-202207

MASTER KEY,W(*68),FOR SMART KEY

main69515-33100iNHP170,NSP170..Q¥7,200201809-202207

MASTER KEY,W(*68),SMART ENTRY-WITH(FRONT DOOR & BACK DOOR),FOR SMART KEY

69503BKEY, CUT

main69515-33090iNHP170..N¥7,900201506-202207

MASTER KEY,W(*68),FOR SMART KEY

main69515-33090iNHP170,NSP170..Q¥7,900201809-202207

MASTER KEY,W(*68),SMART ENTRY-WITH(FRONT DOOR & BACK DOOR),FOR SMART KEY

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-28600iNHP170,NSP170..Q¥5,300201506-202006

main89072-58200iNHP170,NSP170..Q¥4,380202006-202207

89745CBATTERY, TRANSMITTER

main89745-45010iNHP170,NSP170..Q¥440201506-202006

CR2032

sub89745-50020¥440

main89745-45010iNHP170,NSP170..Q¥440201809-202006

CR2032,SMART ENTRY-WITH(FRONT DOOR & BACK DOOR)

sub89745-50020¥440

main89745-50020iNHP170..N¥440202006-202207

CR2032

main89745-50020iNHP170,NSP170..Q¥440202006-202207

CR2032,SMART ENTRY-WITH(FRONT DOOR & BACK DOOR)

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-28571iNHP170,NSP170..Q201506-202006

main89904-28660iNHP170,NSP170..Q¥20,000202006-202207

6 parts on this diagram · 2 diagrams in section
