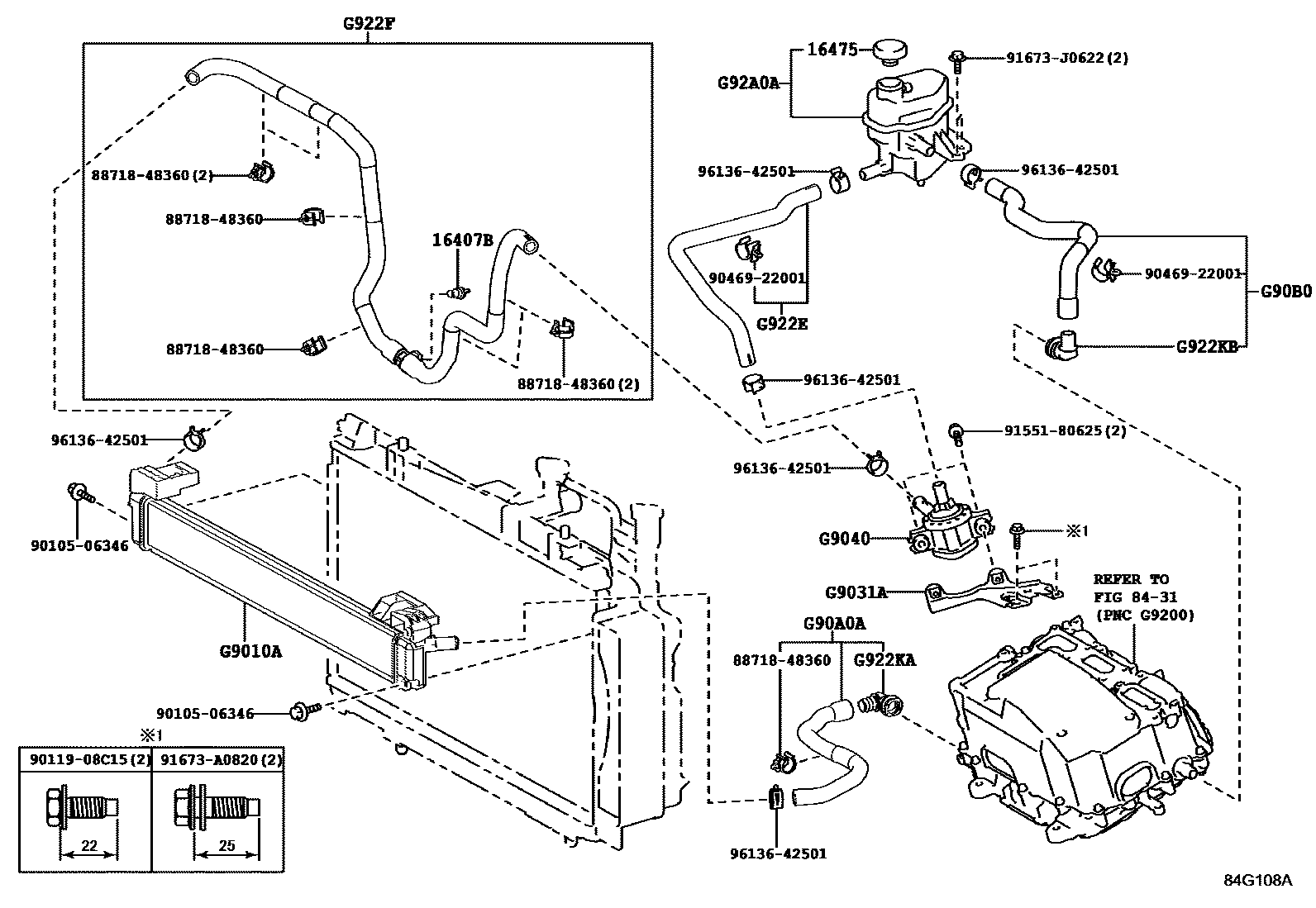

Toyota SIENTA (JPP) — INVERTER COOLING

16407BCOCK SUB-ASSY, RADIATOR DRAIN

main16407-64010i1NZFXE..NHP170¥380201507-202207

16475CAP, RESERVE TANK

main16475-28140i1NZFXE..NHP170¥1,200201701-202207

main16475-51011i1NZFXE..NHP170¥1,100201507-201612

sub16475-28140¥1,200

8431

G9010ARADIATOR ASSY

mainG901052010iNHP170201507-202207

G9031ABRACKET SUB-ASSY, HV WATER PUMP

mainG914152020iNHP170201507-202207

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904052020iNHP170201507-202207

G90A0AHOSE ASSY, INVERTER COOLING, NO.1

mainG90A052030iNHP170201507-202207

G90B0HOSE ASSY, INVERTER COOLING, NO.2

mainG90B052010iNHP170201507-202207

G922EHOSE, HYBRID WATER PUMP INLET

mainG922E52020iNHP170201507-202207

G922FHOSE, HYBRID WATER PUMP OUTLET, NO.1

mainG922F52030iNHP170201507-202207

G922KACONNECTOR, HYBRID WATER HOSE, NO.1

mainG922K33030iNHP170201507-202207

G922KBCONNECTOR, HYBRID WATER HOSE, NO.2

mainG922K52010iNHP170201507-202207

G92A0ATANK ASSY, INVERTER RESERVE

mainG92A052011iNHP170201507-202207

8871848360PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-48360

9010506346

main90105-06346

9011908C15

main90119-08C15¥80

9046922001

main90469-22001¥180

9155180625

main91551-80625¥60

91673A0820

main91673-A0820¥80

91673J0622

main91673-J0622¥60

9613642501

main96136-42501¥200

21 parts on this diagram · 1 diagram in section
