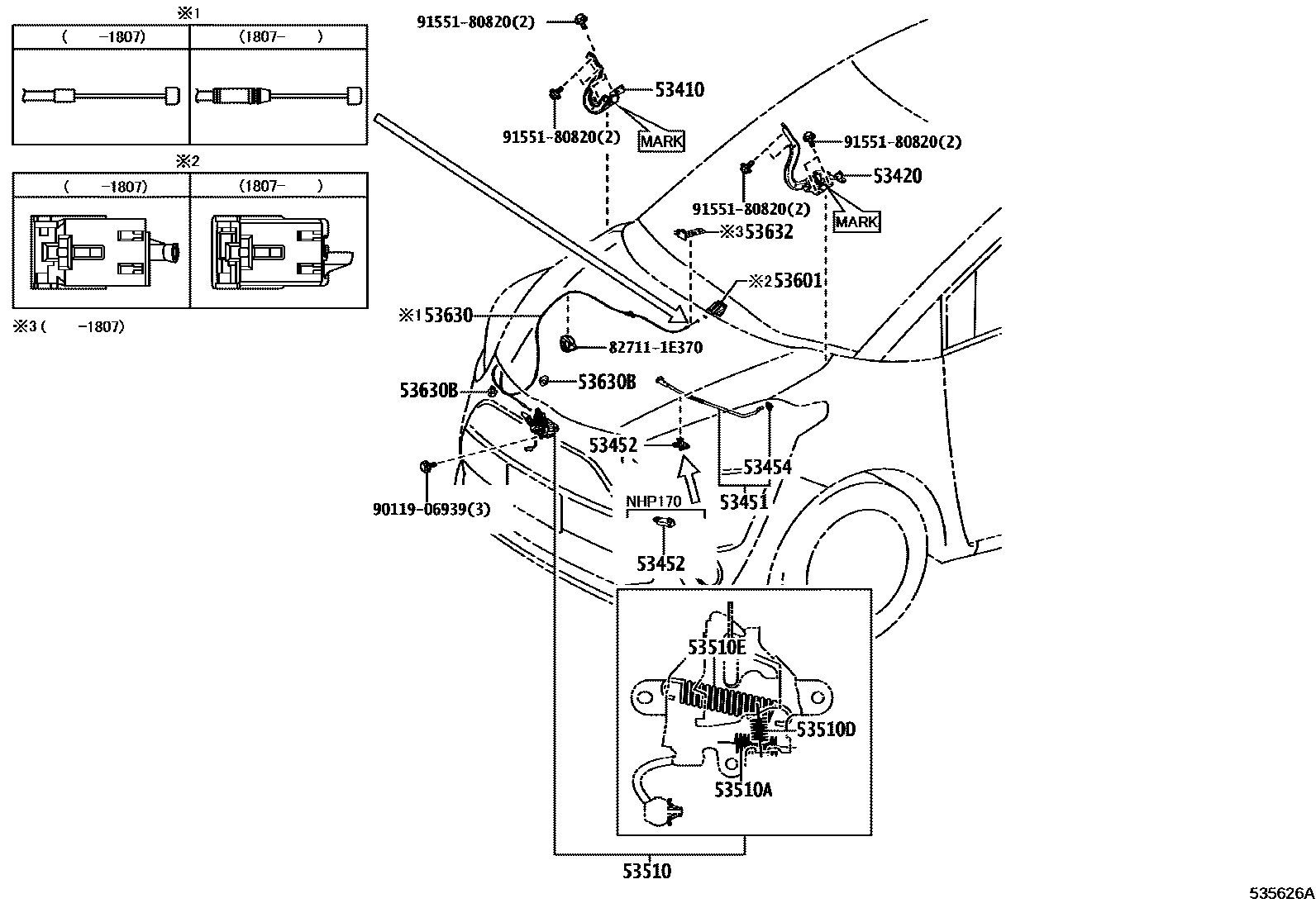

Toyota SIENTA (JPP) — HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53451ROD, HOOD SUPPORT
53452HOLDER, HOOD STAY
53454CLIP, HOOD SUPPORT ROD
53510LOCK ASSY, HOOD
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=21
WD=0.9,CW=21
53510DSPRING, TENSION(FOR HOOD LOCK)
WD=1.2,CW=8.5
WD=1.2,CW=8.5
53510ESPRING, TENSION(FOR HOOD LOCK)
WD=1.6,CW=12
WD=1.6,CW=12
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
FROMAGE,TRIM0#
FROMAGE,TRIM0#
BLACK,TRIM2#
BLACK,TRIM2#
53630CABLE ASSY, HOOD LOCK CONTROL
53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)
53632HOLDER, HOOD LOCK CONTROL CABLE
827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
9011906939
9155180820
16 parts on this diagram · 1 diagram in section
