Toyota SIENTA (JPP) — HEATING & AIR CONDITIONING - COMPRESSOR

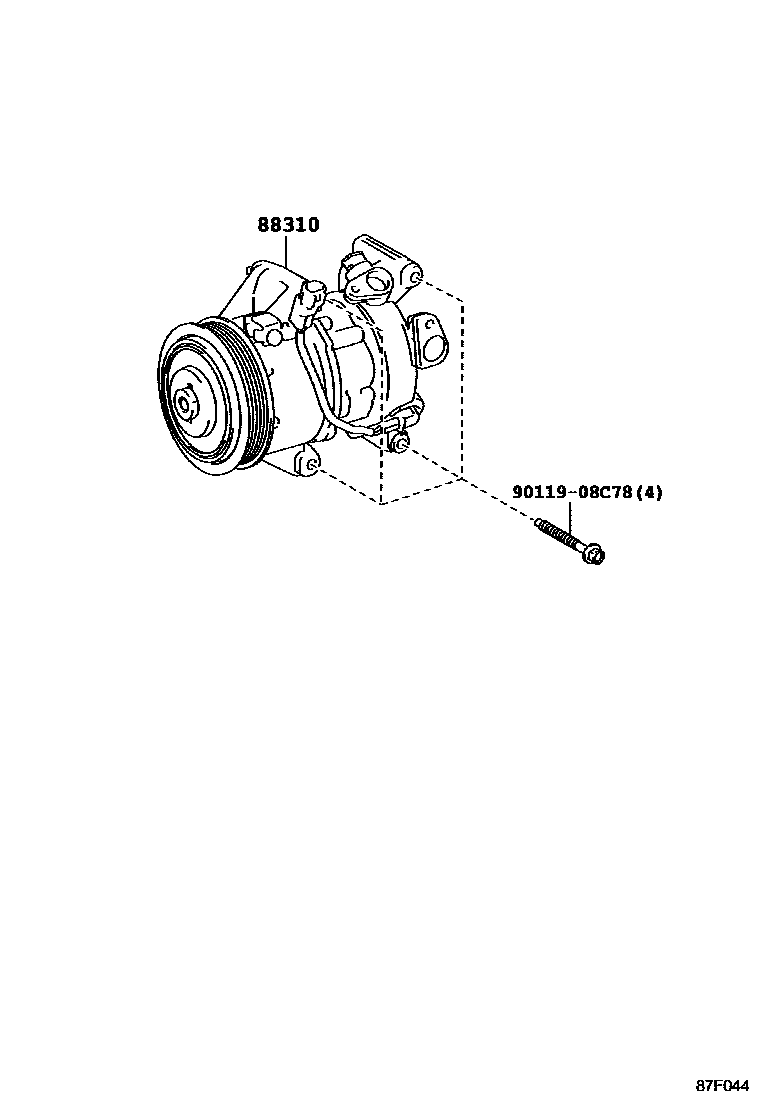

Parts diagram

88310COMPRESSOR ASSY, W/PULLEY

main88310-52780i¥0201506-201809

main88310-52780i¥0201809-202207

9011908C78

main90119-08C78¥0

2 parts on this diagram · 2 diagrams in section
