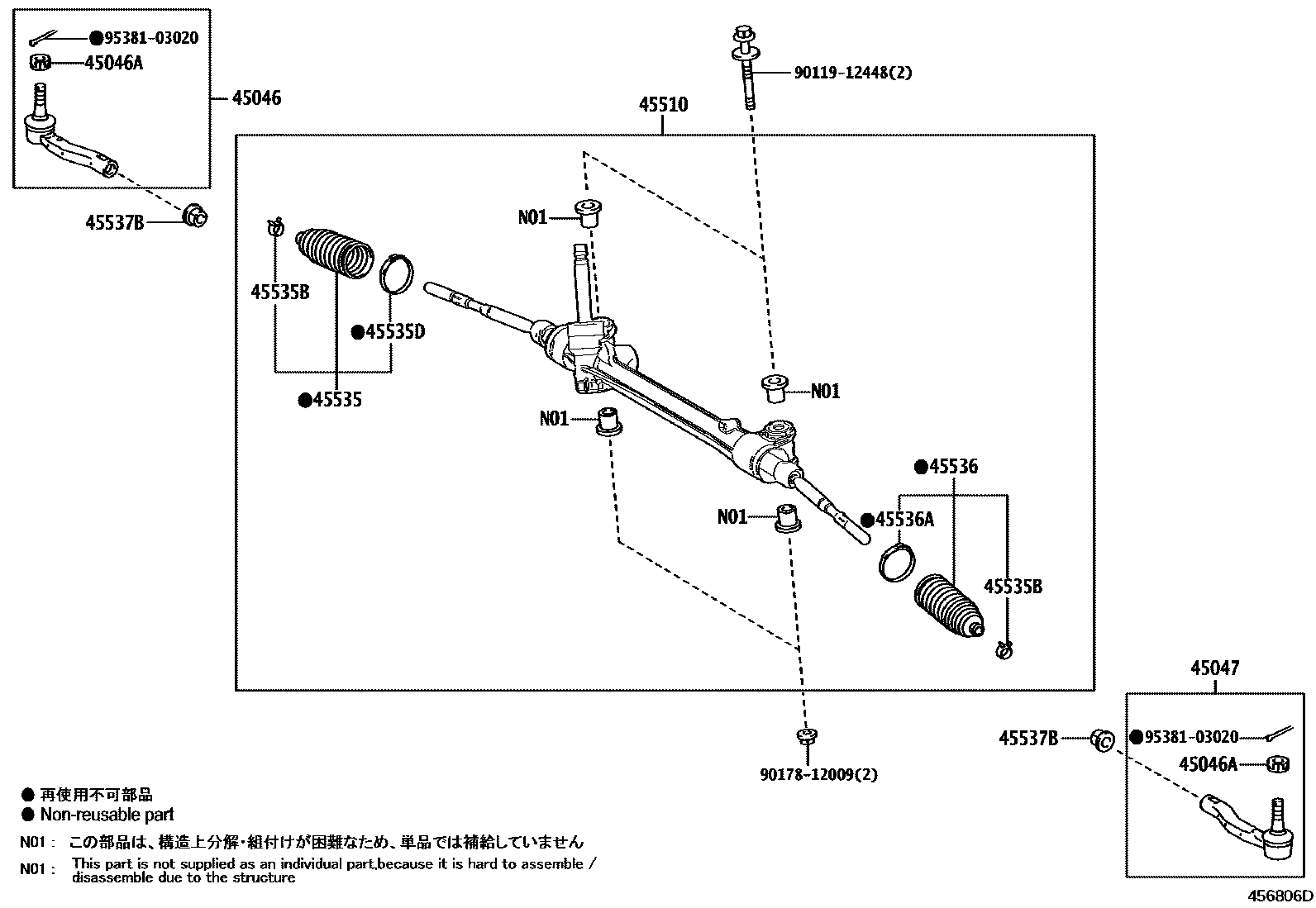

Toyota SIENTA (JPP) — FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-59205iNHP170,NSP170¥2,690201506-201809

main45046-59205iNHP170,NSP170¥2,690201809-202207

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iNHP170,NSP170¥130201506-201809

main90171-12028iNHP170,NSP170¥130201809-202207

45047END SUB-ASSY, TIE ROD, LH

main45047-59145iNHP170,NSP170¥2,690201506-201809

main45047-59145iNHP170,NSP170¥2,690201809-202207

45510GEAR ASSY, STEERING

main45510-52241iNHP170,NSP170¥29,800201506-201809

main45510-52241iNHP170,NSP170¥29,800201809-202207

45535BOOT, STEERING RACK, NO.1

main45535-59035iNHP170,NSP170¥790201506-201809

main45535-59035iNHP170,NSP170¥790201809-202207

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021iNHP170,NSP170¥180201506-201809

main90467-19021iNHP170,NSP170¥180201809-202207

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-52010iNHP170,NSP170¥220201506-201809

main45538-52010iNHP170,NSP170¥220201809-202207

45536BOOT, STEERING RACK, NO.2

main45535-59035iNHP170,NSP170¥790201506-201809

main45535-59035iNHP170,NSP170¥790201809-202207

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-52010iNHP170,NSP170¥220201506-201809

main45538-52010iNHP170,NSP170¥220201809-202207

45537BNUT, RACK END LOCK

main90178-15003iNHP170,NSP170¥120201506-201809

main90178-15003iNHP170,NSP170¥120201809-202207

9011912448

main90119-12448¥360

9017812009

main90178-12009¥120

9538103020

main95381-03020¥90

13 parts on this diagram · 1 diagram in section
