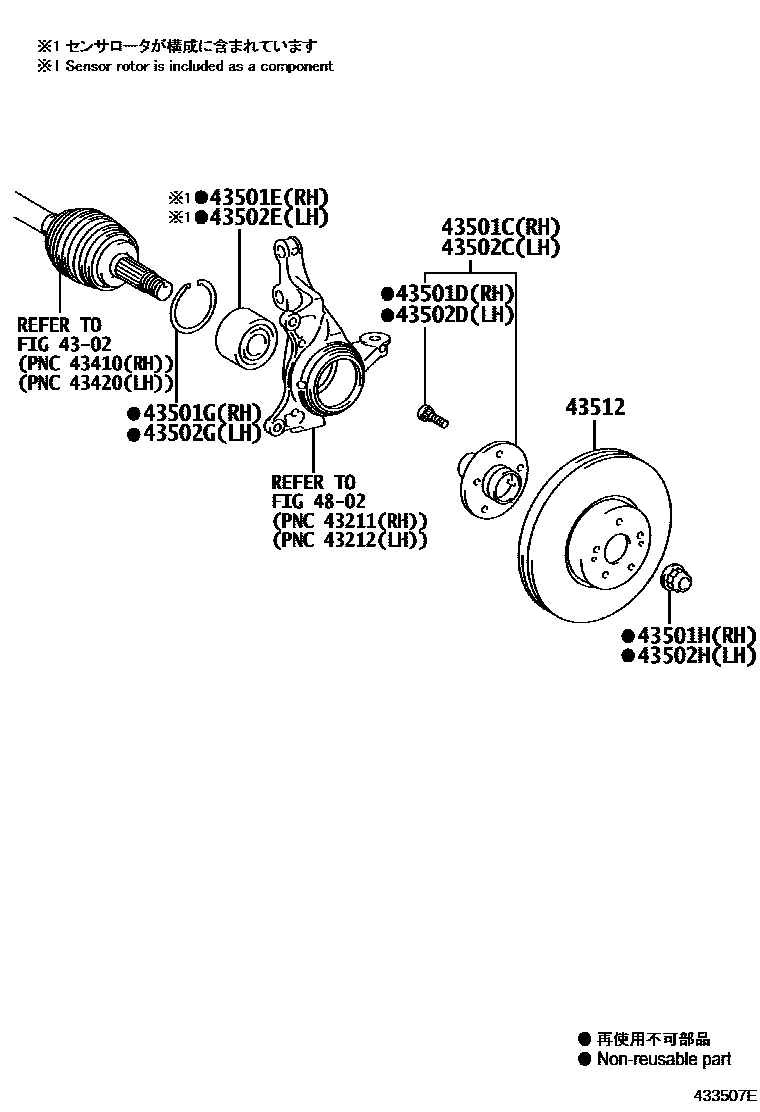

Toyota SIENTA (JPP) — FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-52040iNHP170,NSP170¥5,900201506-202207

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iNHP170,NSP170¥240201506-202207

43501EBEARING (FOR FRONT AXLE HUB RH)

main90363-40079iNHP170,NSP170¥7,100201506-201612

sub90369-40009¥7,100

main90369-40009iNHP170,NSP170¥7,100201701-202207

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-80003iNHP170,NSP170¥200201506-202207

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iNHP170,NSP170¥220201506-202207

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-52040iNHP170,NSP170¥5,900201506-202207

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iNHP170,NSP170¥240201506-202207

43502EBEARING (FOR FRONT AXLE HUB LH)

main90363-40079iNHP170,NSP170¥7,100201506-201612

sub90369-40009¥7,100

main90369-40009iNHP170,NSP170¥7,100201701-202207

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-80003iNHP170,NSP170¥200201506-202207

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iNHP170,NSP170¥220201506-202207

43512DISC, FRONT

main43512-12710iNHP170,NSP170¥8,400201506-202207

4802

13 parts on this diagram · 1 diagram in section
