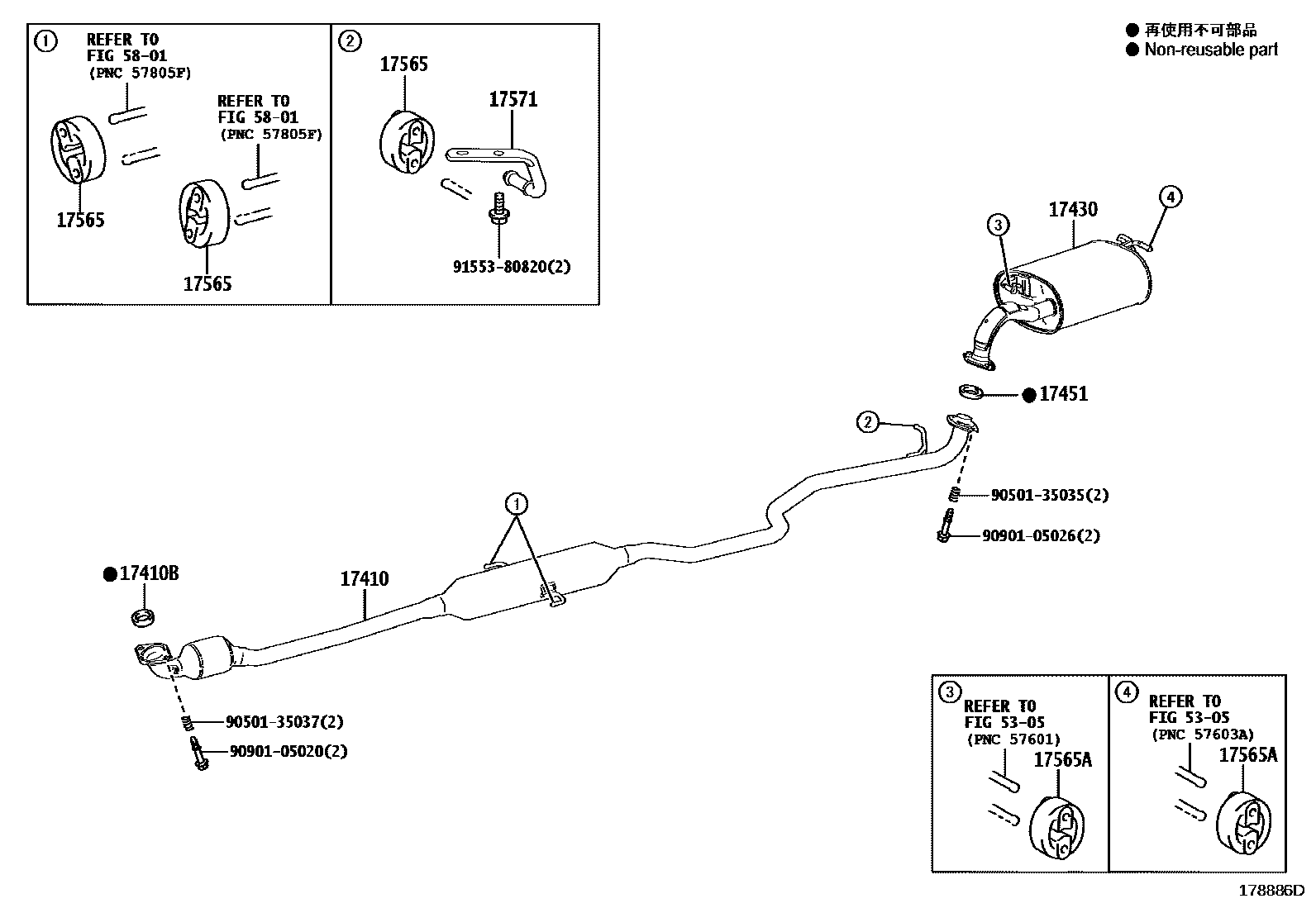

Toyota SIENTA (JPP) — EXHAUST PIPE

0001 1 0002 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-21D40i1NZFXE..NHP170¥62,000201507-202207

main17410-47230i2NRFKE..NSP170¥62,500201506-202207

17410BGASKET, EXHAUST PIPE

main17451-21070i1NZFXE,2NRFKE..NHP170,NSP170¥1,360201506-202207

17430PIPE ASSY, EXHAUST, TAIL

main17430-47210i1NZFXE,2NRFKE..NHP170,NSP170¥17,900201506-202207

17451GASKET, EXHAUST PIPE

main17451-23042i1NZFXE,2NRFKE..NHP170,NSP170¥790201506-202207

sub17451-23043¥720

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-47010i1NZFXE,2NRFKE..NHP170,NSP170¥320201506-202207

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-28010i1NZFXE,2NRFKE..NHP170,NSP170¥670201506-202207

17571BRACKET, EXHAUST PIPE SUPPORT, NO.1

main17571-47100i1NZFXE,2NRFKE..NHP170,NSP170¥760201506-202207

5305

5801

9050135035

main90501-35035¥200

9050135037

main90501-35037¥200

9090105020

main90901-05020¥230

9090105026

main90901-05026¥310

9155380820

main91553-80820¥80

14 parts on this diagram · 2 diagrams in section
