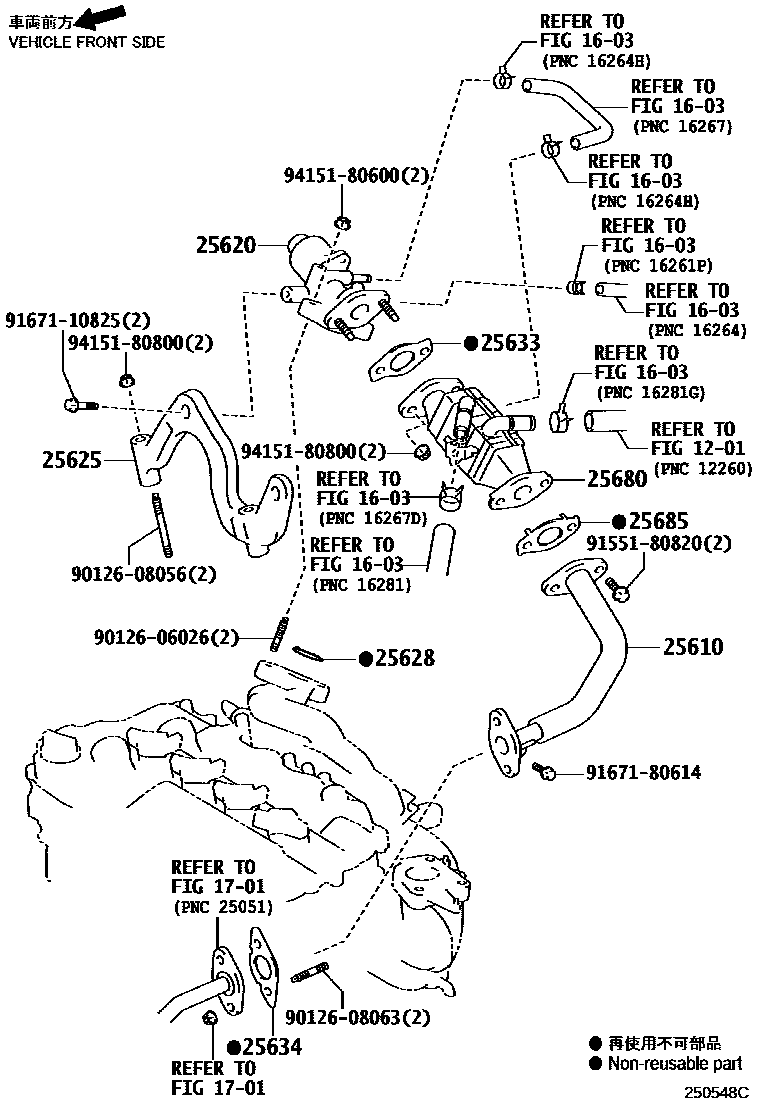

Toyota SIENTA (JPP) — EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

1201

1603

1701

25610PIPE ASSY, EGR

main25610-47010i2NRFKE..NSP170¥5,500201506-202207

25620VALVE ASSY, EGR

main25620-21020i1NZFXE..NHP170¥29,200201507-201606

sub25620-21021¥18,400

main25620-21021i1NZFXE..NHP170¥18,400201607-202207

main25620-47030i2NRFKE..NSP170¥24,300201506-201906

sub25620-47060¥18,400

main25620-47060i2NRFKE..NSP170¥18,400201907-202207

25625BRACKET, EGR VALVE

main25625-21010i1NZFXE..NHP170¥2,170201507-202207

main25625-47010i2NRFKE..NSP170¥3,380201506-202207

25628GASKET, EGR INLET

main25628-25010i2NRFKE..NSP170¥340201905-202207

main25628-28010i1NZFXE..NHP170¥210201507-202207

main25628-36010i2NRFKE..NSP170¥280201506-201904

25633GASKET, EGR VALVE

main25633-21010i1NZFXE..NHP170¥340201507-202207

main25633-47020i2NRFKE..NSP170¥270201506-202207

25634GASKET, EGR PIPE

main25685-37010i2NRFKE..NSP170¥210201506-202207

25680COOLER ASSY, EGR

main25680-21010i1NZFXE..NHP170¥16,700201507-202207

main25680-47012i2NRFKE..NSP170¥14,100201506-202207

25685GASKET, EGR COOLER, NO.1

main25685-21010i1NZFXE..NHP170¥510201507-202207

main25685-47010i2NRFKE..NSP170¥280201506-202207

9012606026

main90126-06026¥60

9012608056

main90126-08056¥120

9012608063

main90126-08063¥80

9155180820

main91551-80820¥80

9167110825

main91671-10825¥80

9167180614

main91671-80614¥60

9415180600

main94151-80600¥60

9415180800

main94151-80800¥80

19 parts on this diagram · 2 diagrams in section
