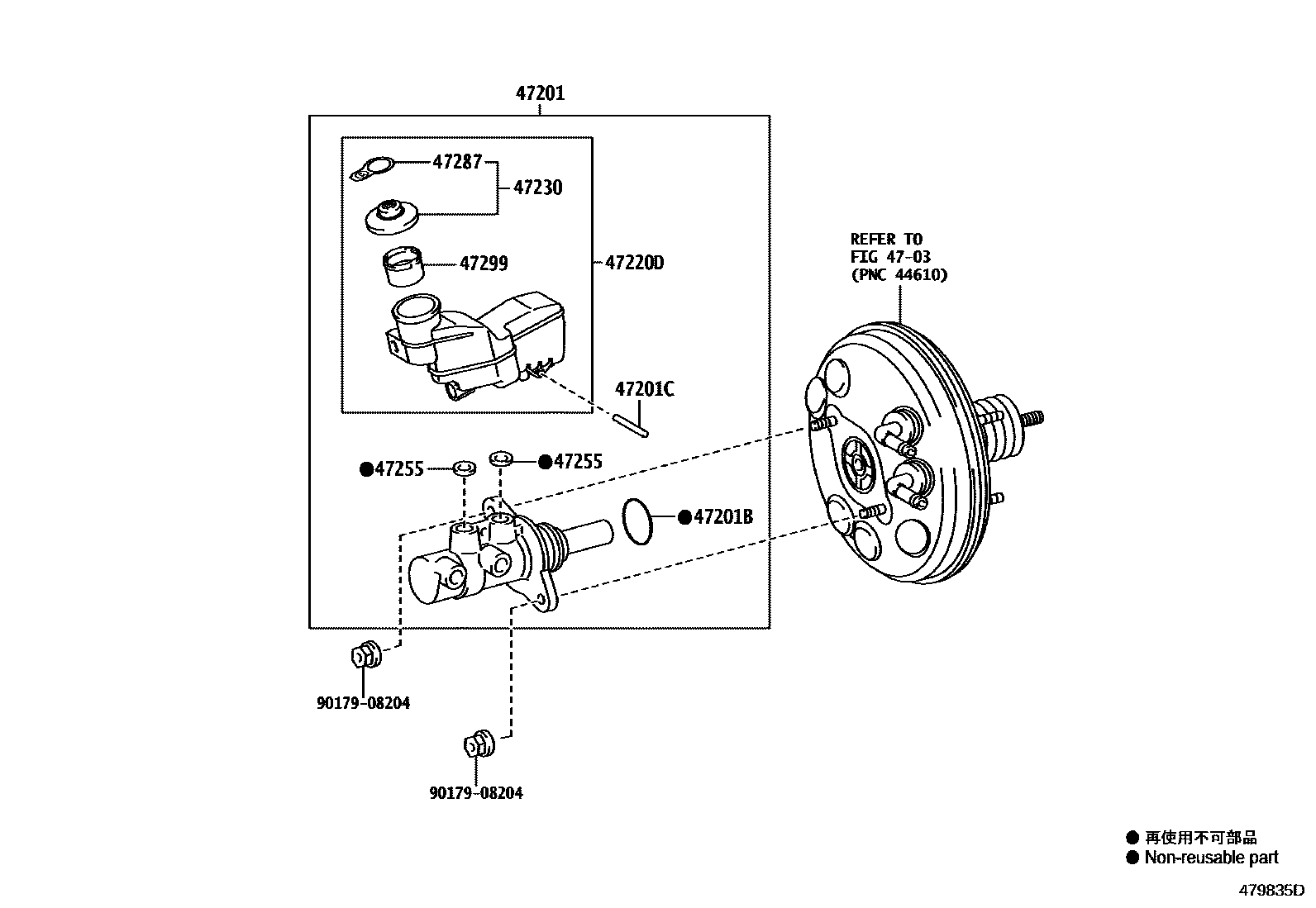

Toyota SIENTA (JPP) — BRAKE MASTER CYLINDER

0001 1 0002 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-52380iNSP170¥22,400201506-202207

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iNSP170¥200201506-202207

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iNSP170¥130201506-202207

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-52290iNHP170¥8,000201507-201810

sub47220-52291¥6,600

main47220-52291iNHP170¥6,600201810-202207

main47220-52350iNSP170¥6,600201506-202207

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iNSP170¥530201506-202207

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iNSP170¥360201506-202207

sub90016-AT001¥360

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iNSP170¥130201506-202207

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iNSP170¥140201506-202207

9017908204

main90179-08204¥140

10 parts on this diagram · 2 diagrams in section
