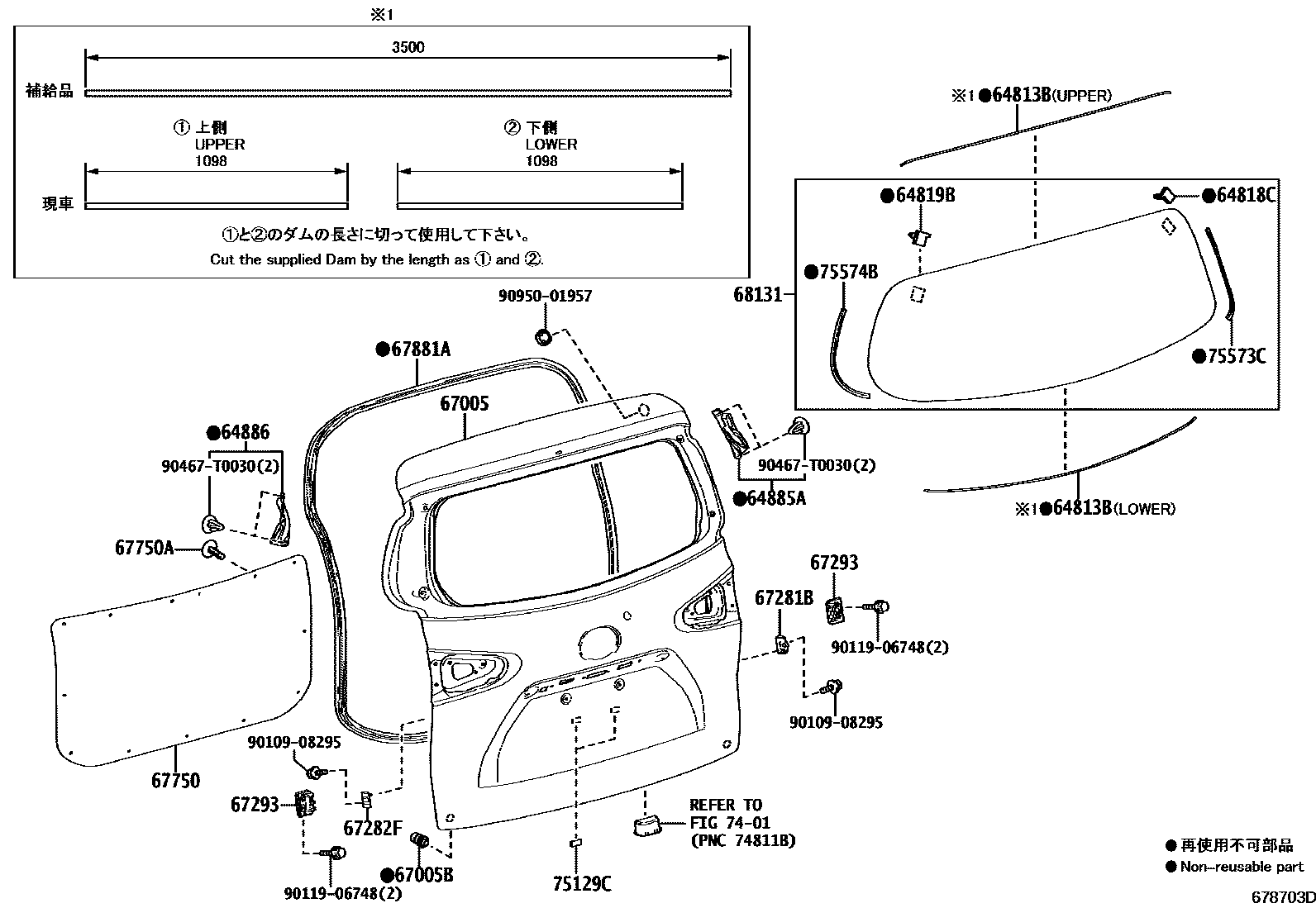

Toyota SIENTA (JPP) — BACK DOOR PANEL & GLASS
64813BDAM, BACK WINDOW GLASS ADHESIVE
64818CSPACER, BACK WINDOW GLASS, NO.1
64819BSPACER, BACK WINDOW GLASS, NO.2
64885ACHANNEL, BACK WINDOW GLASS, RH
64886CHANNEL, BACK WINDOW GLASS, LH
67005PANEL SUB-ASSY, BACK DOOR
67005BCUSHION(FOR BACK DOOR PANEL)
67281BSTOPPER, BACK DOOR, LOWER
67282FSTOPPER, BACK DOOR, LWR LH
67293CUSHION, BACK DOOR LOWER STOPPER
67750BOARD ASSY, BACK DOOR TRIM
FLOOR CARPET,TRIM0#,2#
FLOOR CARPET,TRIM2#
67750ACLIP(FOR BACK DOOR TRIM)
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
7401
75129CCUSHION, REAR LICENCE PLATE
75573CMOULDING, BACK WINDOW, OUTSIDE
75574BMOULDING, BACK WINDOW, OUTSIDE LH
9010908295
9011906748
90467T0030
9095001957
22 parts on this diagram · 1 diagram in section
