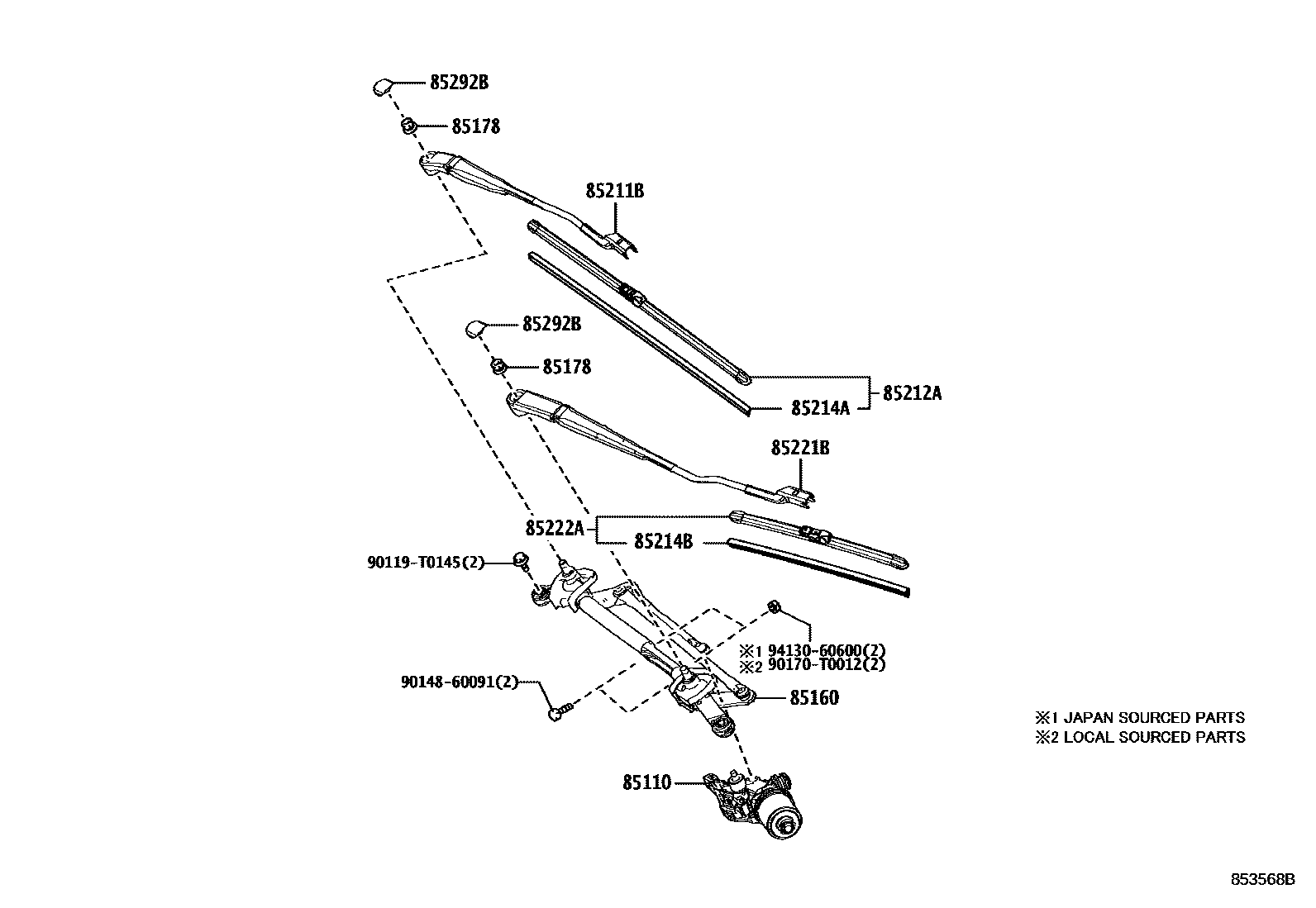

Toyota SIENTA (ASIA) — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0D180iNSP170201607-201907

main85110-0D180iNSP170..6F..TH201907-202203

main85110-0D180iNSP170..CVT;NSP170..6F..IDN201907

85160LINK ASSY, WINDSHIELD WIPER

main85150-0D260iNSP170201607-201907

main85150-0D260iNSP170..6F..TH201907-202203

main85150-0D260iNSP170..CVT;NSP170..6F..IDN201907

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-T0029iNSP170201607-201907

main90182-T0029iNSP170..6F..TH201907-202203

main90182-T0029iNSP170..CVT;NSP170..6F..IDN201907

85211BARM, FRONT WIPER, RH

main85211-0D250iNSP170201607-201907

main85211-0D250iNSP170..6F..TH201907-202203

main85211-0D250iNSP170..CVT;NSP170..6F..IDN201907

85212ABLADE, FR WIPER, RH

main85212-0D110iNSP170201607-201907

main85212-0D110iNSP170..6F..TH201907-202203

main85212-0D110iNSP170..CVT;NSP170..6F..IDN201907

85214ARUBBER, WIPER, RH

main85214-0D190iNSP170201607-201907

main85214-0D190iNSP170..6F..TH201907-202203

main85214-0D190iNSP170..CVT;NSP170..6F..IDN201907

85214BRUBBER, WIPER, LH

main85214-0D200iNSP170201607-201907

main85214-0D200iNSP170..6F..TH201907-202203

main85214-0D200iNSP170..CVT;NSP170..6F..IDN201907

85221BARM, FRONT WIPER, LH

main85221-0D270iNSP170201607-201907

main85221-0D270iNSP170..6F..TH201907-202203

main85221-0D270iNSP170..CVT;NSP170..6F..IDN201907

85222ABLADE, FR WIPER, LH

main85222-0D190iNSP170201607-201907

main85222-0D190iNSP170..6F..TH201907-202203

main85222-0D190iNSP170..CVT;NSP170..6F..IDN201907

85292BCAP, FRONT WIPER ARM HEAD

main85292-0D030iNSP170¥200201607-201907

main85292-0D030iNSP170..6F..TH¥200201907-202203

main85292-0D030iNSP170..CVT;NSP170..6F..IDN¥200201907

90119T0145

main90119-T0145

9014860091

main90148-60091¥0

90170T0012

main90170-T0012

9413060600

main94130-60600¥80

14 parts on this diagram · 1 diagram in section
