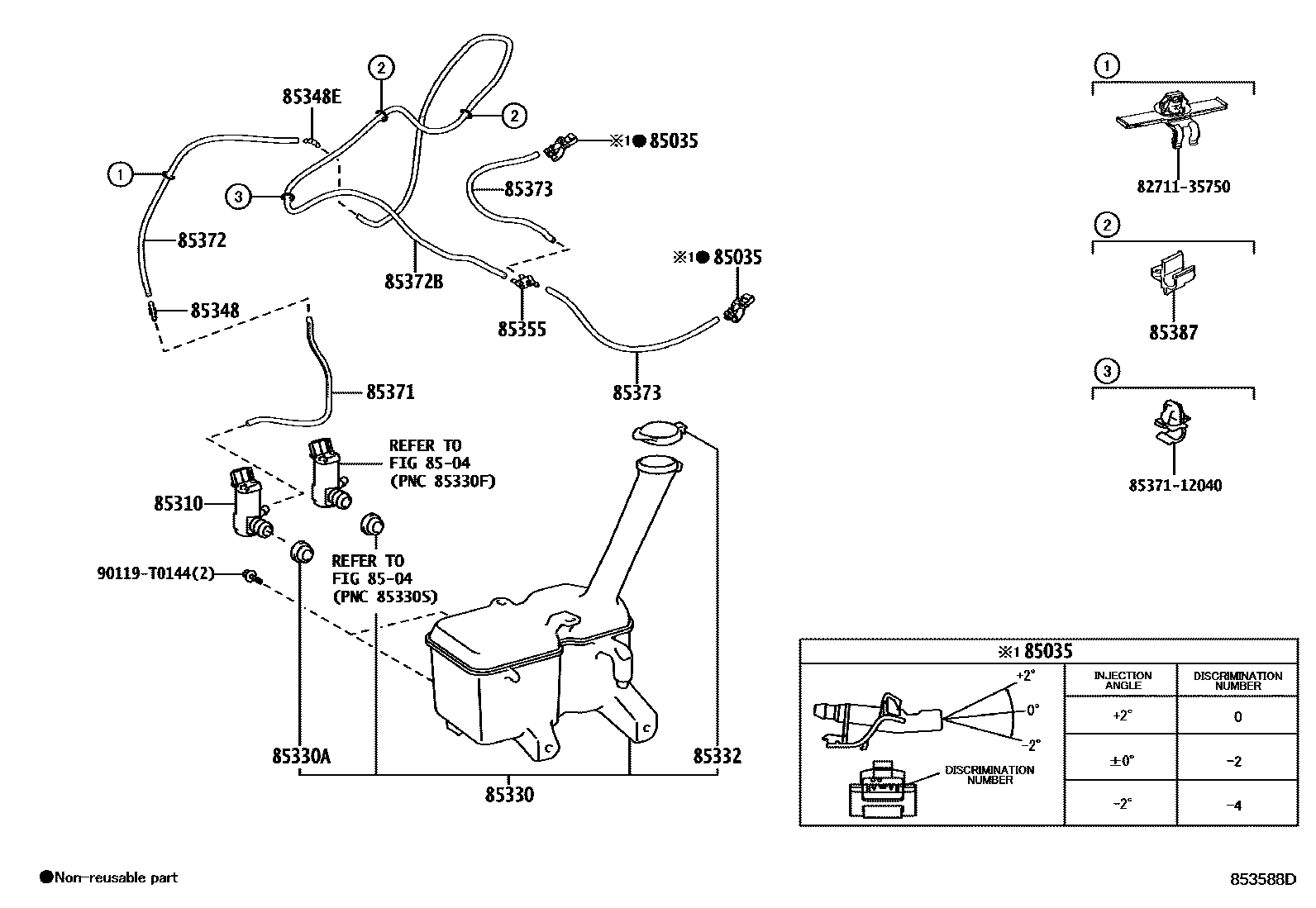

Toyota SIENTA (ASIA) — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
(L),ANGLE 0
(L),ANGLE 0
(L),ANGLE -2
(L),ANGLE -2
(L),ANGLE +2
(L),ANGLE +2
(J),ANGLE 0
(J),ANGLE 0
(J),ANGLE -2
(J),ANGLE -2
8504
85330ABUSH, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
85355VALVE, WINDSHIELD WASHER HOSE
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=210
L=210
L=210
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=815
L=815
L=815
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1150
L=1150
L=1150
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=370
L=370
L=40
L=40
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
8271135750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90119T0144
17 parts on this diagram · 2 diagrams in section
