Toyota SIENTA (ASIA) — STANDARD TOOL

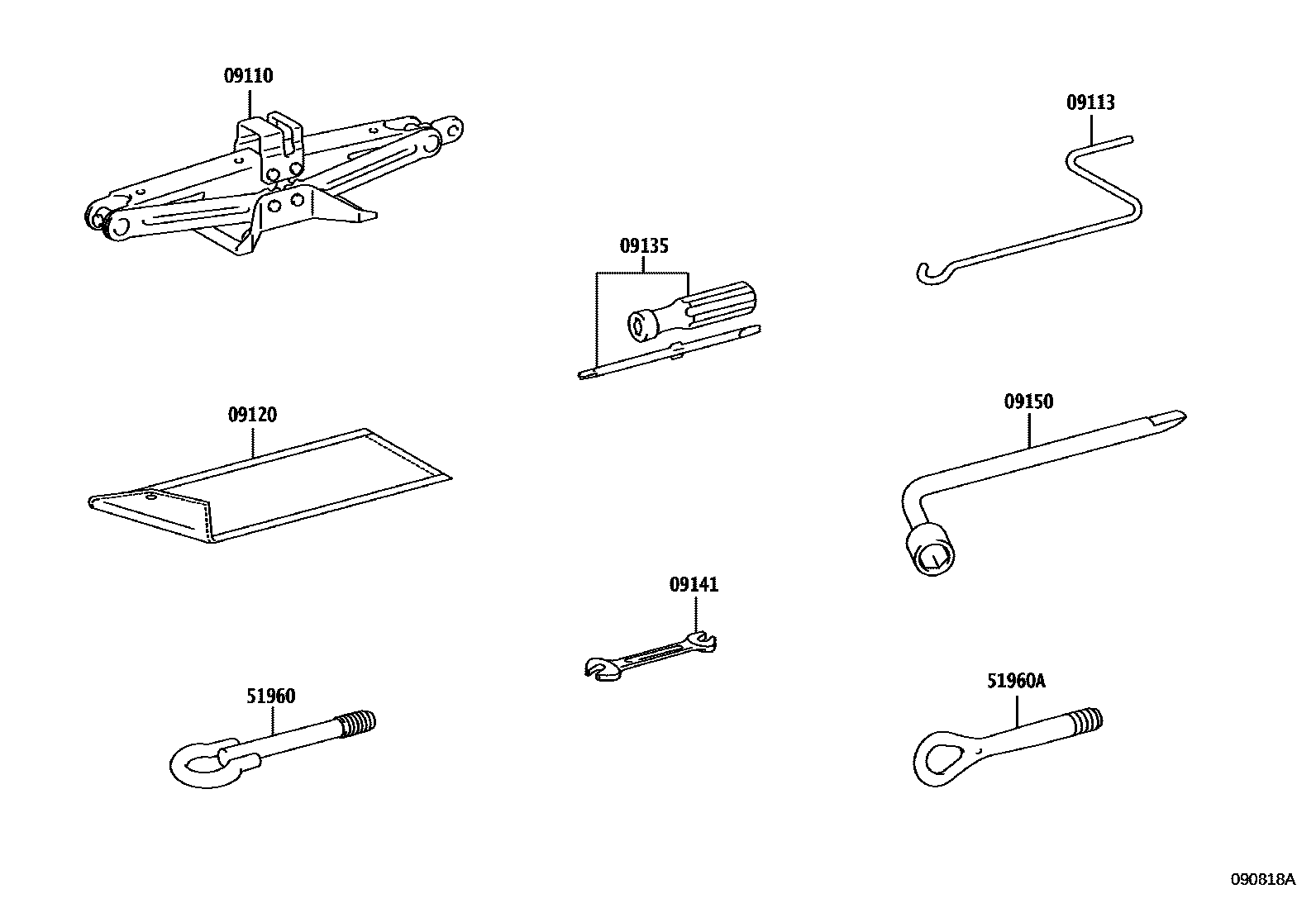

Parts diagram

09110JACK ASSY

main09111-0D180i201607-202203

09113HANDLE, JACK

main09113-0D090i201607-202203

09120BAG, TOOL

main09120-0D180i201607-202203

09135DRIVER, SCREW

main90089-99009i¥500201607-202203

09141SPANNER

main90089-99006i¥440201607-202203

8 X 10

09150WRENCH, HUB NUT BOX

main09150-0D040i201607-201907

51960HOOK ASSY, FRONT

main51960-12100i¥1,780201607-202203

51960AHOOK ASSY, REAR

main51961-12021i¥1,720201607-202203

8 parts on this diagram · 1 diagram in section
