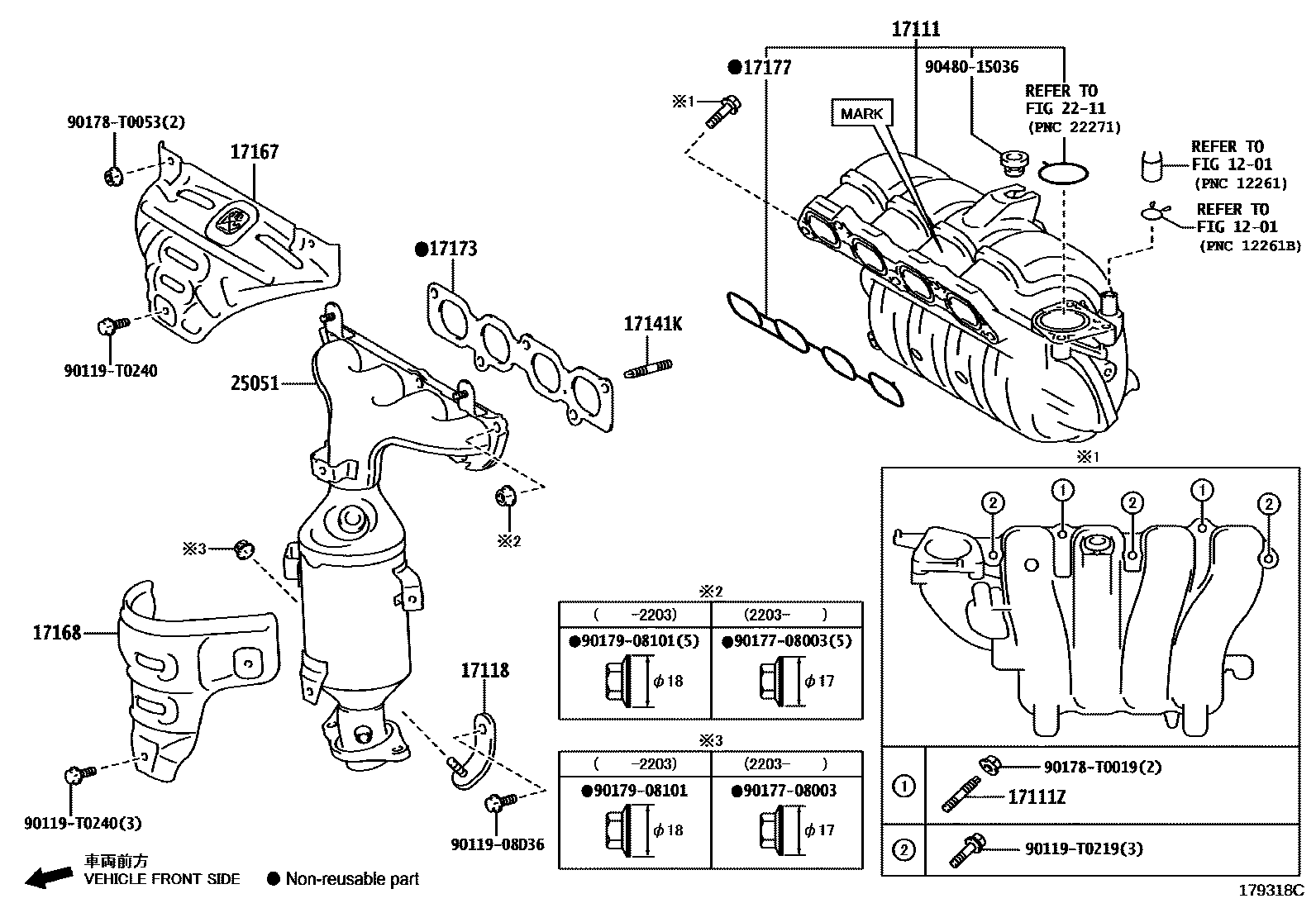

Toyota SIENTA (ASIA) — MANIFOLD

1201

17111MANIFOLD, INTAKE

main17120-0Y050i2NRFE..NSP170201607-201705

sub17120-0Y051

main17120-0Y050i2NRFE..NSP170201907-202105

MARK 17101-0Y050

sub17120-0Y051

main17120-0Y050i2NRFE..NSP170201705-201907

MARK 17101-0Y050

sub17120-0Y051

main17120-0Y051i2NRFE..NSP170..CVT;2NRFE..NSP170..6F..IDN202105

main17120-0Y051i2NRFE..NSP170..6F..TH202105-202203

main17120-0Y070i2NRFE..NSP170201907-202105

MARK 17101-0Y060

sub17120-0Y071

main17120-0Y070i2NRFE..NSP170201705-201907

MARK 17101-0Y060

sub17120-0Y071

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90126-T0019i2NRFE..NSP170¥80201607-201907

main90126-T0019i2NRFE..NSP170..6F..TH¥80201907-202203

main90126-T0019i2NRFE..NSP170..CVT¥80201907-202306

main90126-T0019i2NRFE..NSP170..6F..IDN¥80201907

17118STAY, MANIFOLD

main17118-0Y031i2NRFE..NSP170201607-201907

main17118-0Y031i2NRFE..NSP170..6F..TH201907-202203

main17118-0Y031i2NRFE..NSP170..CVT;2NRFE..NSP170..6F..IDN201907

17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)

main90126-08063i2NRFE..NSP170..6F..IDN¥80201907

main90126-08063i2NRFE..NSP170¥80201607-201907

main90126-08063i2NRFE..NSP170..6F..TH¥80201907-202203

main90126-08063i2NRFE..NSP170..CVT¥80201907-202306

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-0Y020i2NRFE..NSP170201607-201907

main17167-0Y020i2NRFE..NSP170..6F..TH201907-202203

main17167-0Y020i2NRFE..NSP170..CVT;2NRFE..NSP170..6F..IDN201907

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-0Y020i2NRFE..NSP170201607-201907

main17168-0Y020i2NRFE..NSP170..6F..TH201907-202203

main17168-0Y020i2NRFE..NSP170..CVT;2NRFE..NSP170..6F..IDN201907

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-0Y030i2NRFE..NSP170201607-201907

main17173-0Y030i2NRFE..NSP170..6F..TH201907-202203

main17173-0Y030i2NRFE..NSP170..CVT;2NRFE..NSP170..6F..IDN201907

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-0Y030i2NRFE..NSP170¥600201607-201907

main17177-0Y030i2NRFE..NSP170..6F..TH¥600201907-202203

main17177-0Y030i2NRFE..NSP170..CVT;2NRFE..NSP170..6F..IDN¥600201907

2211

25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD

main25051-0Y050i2NRFE..NSP170201607-201907

main25051-0Y050i2NRFE..NSP170201907-202111

main25051-0Y060i2NRFE..NSP170..6F..TH202111-202203

main25051-0Y060i2NRFE..NSP170..CVT;2NRFE..NSP170..6F..IDN202111

9011908D36

main90119-08D36¥100

90119T0219

main90119-T0219

90119T0240

main90119-T0240

9017708003

main90177-08003¥80

90178T0019

main90178-T0019

90178T0053

main90178-T0053

9017908101

main90179-08101¥90

9048015036

main90480-15036¥100

19 parts on this diagram · 1 diagram in section
