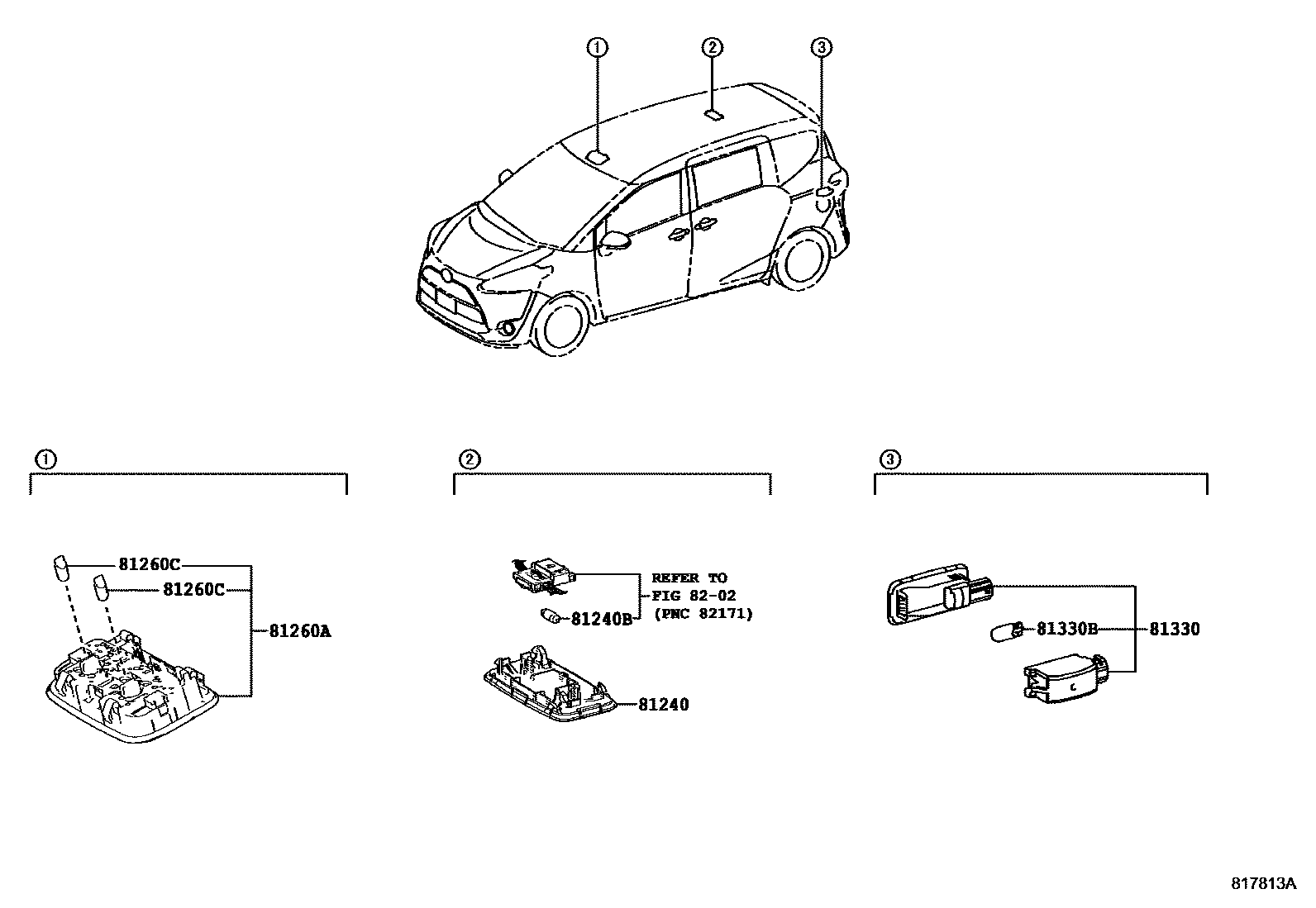

Toyota SIENTA (ASIA) — INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-35020-B0iNSP170..Q,V201607-201907

LT.GRAY,TRIM0#,2#

sub81240-35020¥2,850

sub81240-42020¥2,230

main81240-35020-B0iNSP170..Q,V201607-201907

LT.GRAY,TRIM2#

sub81240-35020¥2,850

sub81240-42020¥2,230

main81240-42020-B0iNSP170..6F..TH201907-202203

LT.GRAY,TRIM2#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iNSP170¥180201607-202203

12V 8W

81260ALAMP ASSY, MAP

main81260-0D200-B1iNSP170..Q,V201607-201907

LT.GRAY,TRIM0#,2#

main81260-0D200-B1iNSP170..Q,V201607-202203

LT.GRAY,TRIM2#

81260CBULB(FOR MAP LAMP)

main90981-11062iNSP170¥340201607-201901

12V 8W

main99132-12050iNSP170¥110201902-202203

12V 5W

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81250-30210iNSP170¥1,250201607-202203

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-12050iNSP170¥110201607-202203

12V 5W

8202

7 parts on this diagram · 1 diagram in section
