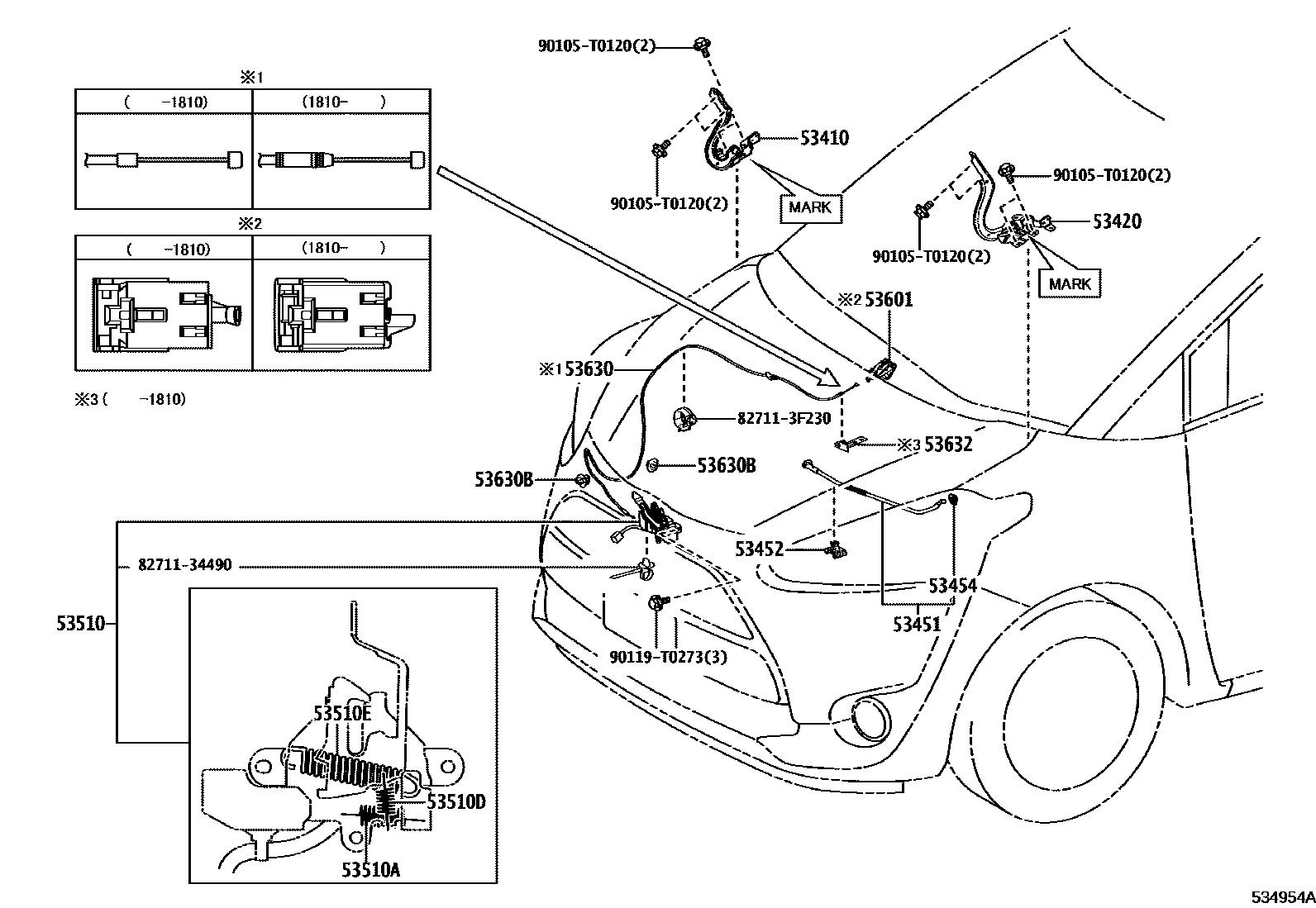

Toyota SIENTA (ASIA) — HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
NO MARK
MARK = +
MARK = -
53420HINGE ASSY, HOOD, LH
NO MARK
MARK = +
MARK = -
53451ROD, HOOD SUPPORT
53452HOLDER, HOOD STAY
53454CLIP, HOOD SUPPORT ROD
53510LOCK ASSY, HOOD
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=21
53510DSPRING, TENSION(FOR HOOD LOCK)
WD=1.2,CW=8.5
53510ESPRING, TENSION(FOR HOOD LOCK)
WD=1.6,CW=12
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
FROMAGE,TRIM0#,21
BLACK,TRIM20
BLACK,TRIM2#
FROMAGE,TRIM21
BLACK,TRIM20
BLACK,TRIM2#
53630CABLE ASSY, HOOD LOCK CONTROL
53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)
53632HOLDER, HOOD LOCK CONTROL CABLE
8271134490WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
827113F230WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
90105T0120
main90105-T0120
90119T0273
main90119-T0273
17 parts on this diagram · 1 diagram in section
