Toyota SIENTA (ASIA) — HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

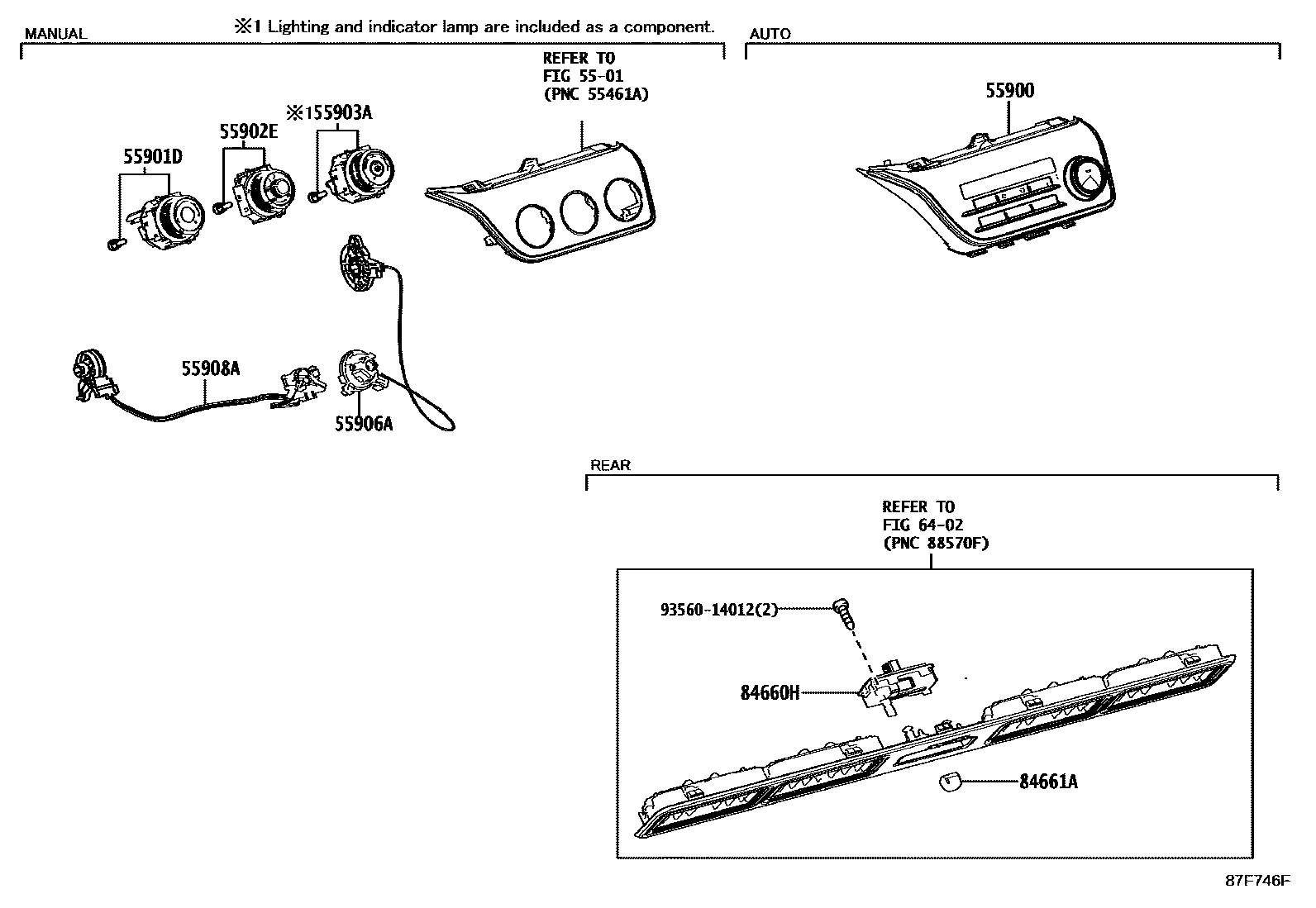

0001 1HEATER CONTROL PANEL 0002 1AIR DUCT 0003 1SENSOR

5501

55900CONTROL ASSY, AIR CONDITIONER

main55900-0D850iNSP170..Q,V201607-201907

main55900-0D850iNSP170..Q,V201907

55901DCONTROL SUB-ASSY, HEATER, NO.1

main55901-0D340iNSP170..CVT..G..TH201907

main55901-0D340iNSP170..G..TH201607-201907

main55901-0D340iNSP170..6F..TH201907-202203

main55901-0D350iNSP170..(E,G)..IDN201607-201907

main55901-0D350iNSP170..(E,G)..IDN201907

55902ECONTROL SUB-ASSY, HEATER, NO.2

main55902-0D370iNSP170..CVT..G..TH201907

main55902-0D370iNSP170..G..TH201607-201907

main55902-0D370iNSP170..6F..TH201907-202203

main55902-0D380iNSP170..(E,G)..IDN201607-201907

main55902-0D380iNSP170..(E,G)..IDN201907

55903ACONTROL SUB-ASSY, HEATER, NO.3

main55903-0D400iNSP170..6F..TH201907-202203

main55903-0D400iNSP170..G..TH201607-201907

main55903-0D400iNSP170..CVT..G..TH201907

main55903-0D410iNSP170..(E,G)..IDN201907

main55903-0D410iNSP170..(E,G)..IDN201607-201907

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-52132iNSP170..6F..TH¥770201907-202203

main55906-52132iNSP170..CVT..(E,G);NSP170..6F..(E,G)..IDN¥770201907

main55906-52132iNSP170..E,G¥770201607-201907

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-52130iNSP170..E,G¥770201607-201907

main55908-52130iNSP170..6F..TH¥770201907-202203

main55908-52130iNSP170..CVT..(E,G);NSP170..6F..(E,G)..IDN¥770201907

6402

84660HSWITCH ASSY, COOLER CONTROL

main88470-0D020iNSP170..G,Q,V201607-201907

main88470-0D020iNSP170..6F..TH201907-202203

main88470-0D020iNSP170..CVT..(G,Q,V);NSP170..6F..(G,V)..IDN201907

84661AKNOB, COOLER CONTROL SWITCH

main84661-0K010-B0iNSP170..Q,V201607-201907

LT.GRAY,TRIM0#,2#

main84661-0K010-B0iNSP170..Q,V201607-201907

LT.GRAY,TRIM2#

main84661-0K010-B0iNSP170..6F..TH201907-202203

LT.GRAY,TRIM2#

main84661-0K010-B0iNSP170..CVT..(G,Q,V);NSP170..6F..(G,V)..IDN201907

LT.GRAY,TRIM2#

9356014012

main93560-14012¥70

11 parts on this diagram · 3 diagrams in section
