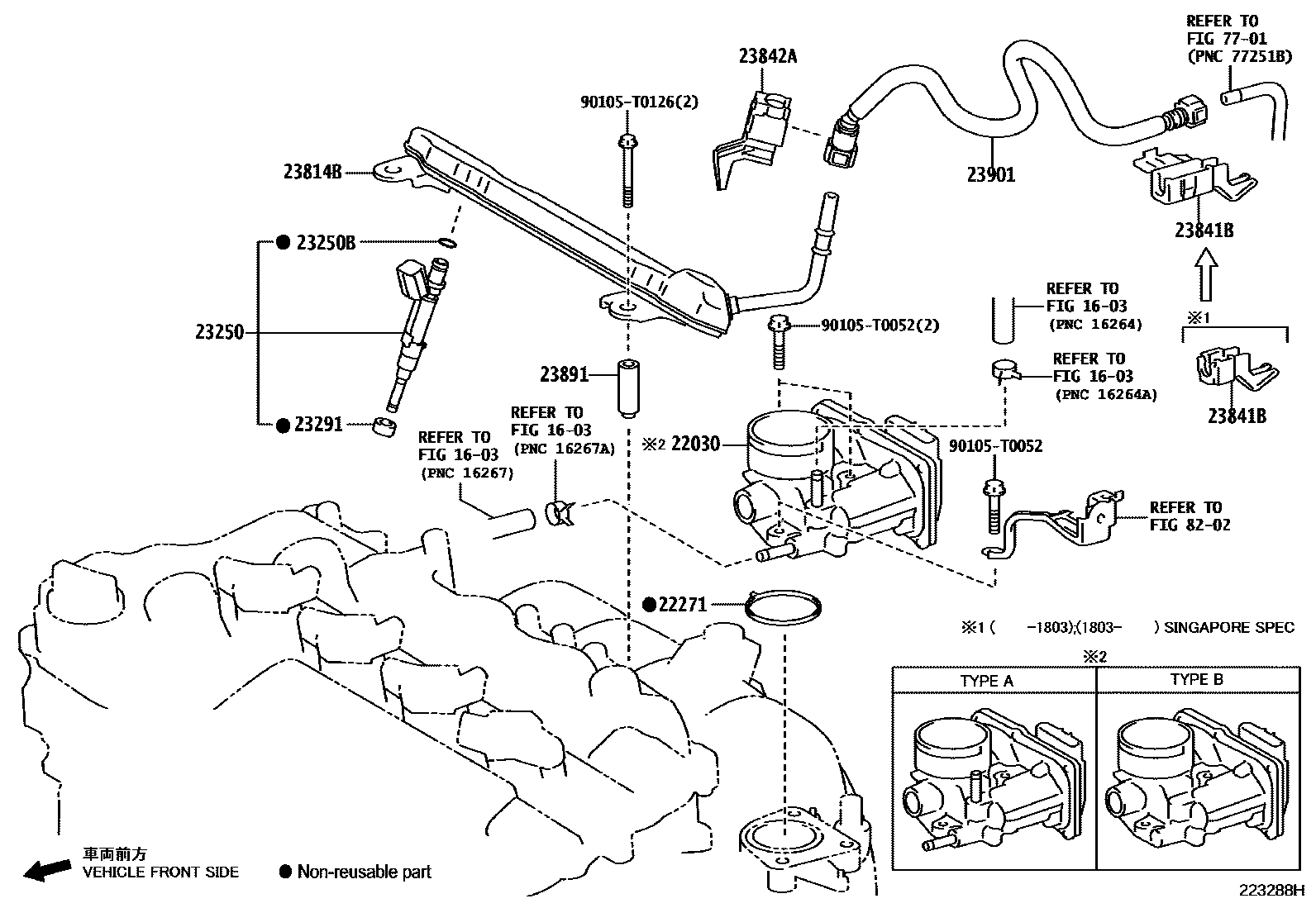

Toyota SIENTA (ASIA) — FUEL INJECTION SYSTEM

1603

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0Y020i2NRFE..NSP170..CVT201907-202203

TYPE A:REFER ILLUST.

main22030-0Y020i2NRFE..NSP170201607-201907

main22030-0Y140i2NRFE..NSP170..CVT202104-202306

TYPE B:REFER ILLUST.

22271GASKET, THROTTLE BODY

main22271-0Y030i2NRFE..NSP170..CVT;2NRFE..NSP170..6F..IDN201607-202203

23250INJECTOR ASSY, FUEL

main23209-09340i2NRFE..NSP170201607-202203

main23209-09450i2NRFE..NSP170..CVT202008

23250BRING, O(FOR FUEL INJECTOR)

main90301-07042i2NRFE..NSP170¥140201607-202203

23291INSULATOR, INJECTOR VIBRATION

main23291-0Y020i2NRFE..NSP170..CVT;2NRFE..NSP170..6F..IDN¥230201607-202203

23814BPIPE, FUEL DELIVERY

main23814-0Y010i2NRFE..NSP170201607-202203

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-0M040i2NRFE..NSP170201607-201803

main23841-0T042i2NRFE..NSP170201803-202203

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23841-0Y060i2NRFE..NSP170201607-202203

23891SPACER, FUEL DELIVERY

main23891-47040i2NRFE..NSP170201607-202203

23901TUBE SUB-ASSY, FUEL

main23901-0Y100i2NRFE..NSP170201607-201803

main23901-0Y320i2NRFE..NSP170201803-202203

7701

8202

90105T0052

main90105-T0052

90105T0126

main90105-T0126

15 parts on this diagram · 1 diagram in section
