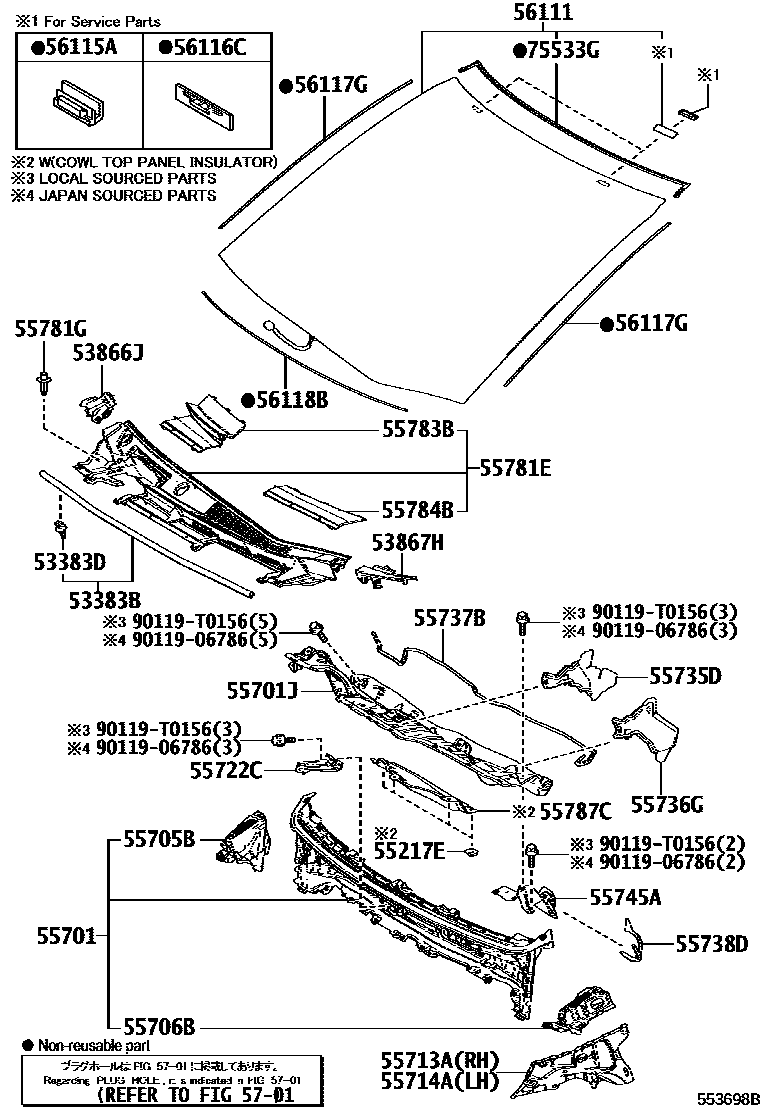

Toyota SIENTA (ASIA) — COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
53383DCLIP(FOR HOOD TO COWL TOP SEAL)
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
55217ERETAINER, DASH PANEL SILENCER
55701PANEL SUB-ASSY, COWL
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55713APANEL, COWL TOP SIDE, RH
55714APANEL, COWL TOP SIDE, LH
55722CBRACE, COWL TOP TO COWL, INNER
55735DSEAL, FRONT AIR SHUTTER, RH
55736GSEAL, FRONT AIR SHUTTER, LH
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2
55745AREINFORCEMENT, COWL TOP, INNER
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55781GCLIP, COWL TOP VENTILATOR LOUVER
BLACK,(J)
sub90467-A0016
BLACK,(J)
sub90467-A0016
BLACK,(L)
BLACK,(L)
BLACK,(L)
55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1
55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117GDAM, WINDOW GLASS ADHESIVE
L=798
L=798
L=798,SINGAPORE SPEC
L=798,BRUNEI SPEC
L=798
56118BDAM, WINDOW GLASS ADHESIVE, NO.2
L=1179
L=1179
L=1179,SINGAPORE SPEC
L=1179,BRUNEI SPEC
L=1179
5701
75533GMOULDING, WINDSHIELD, OUTSIDE
9011906786
90119T0156
31 parts on this diagram · 1 diagram in section
