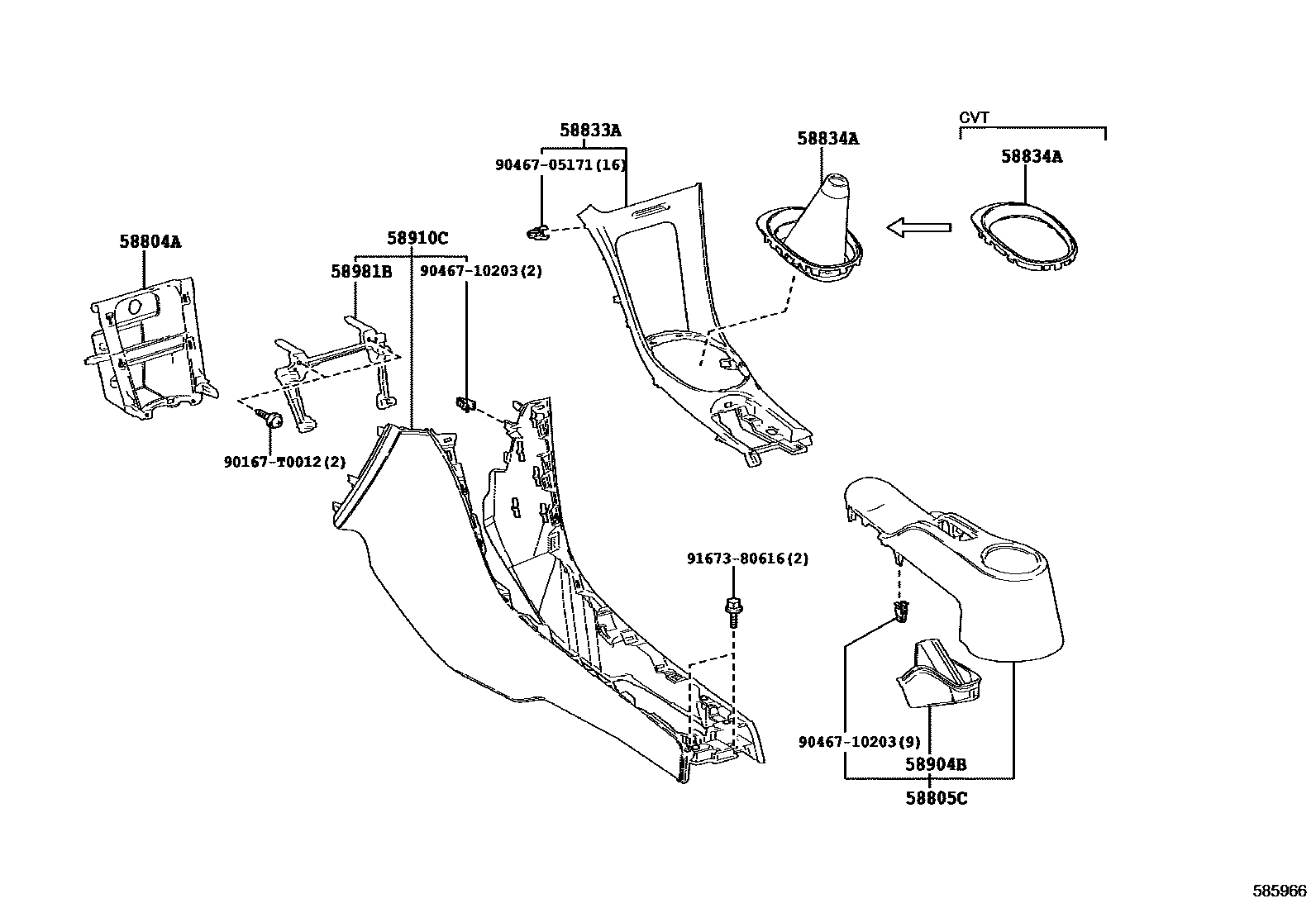

Toyota SIENTA (ASIA) — CONSOLE BOX & BRACKET

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-0D240-A0iNSP170..Q,V201607-201907

FROMAGE,TRIM0#,21

main58804-0D240-C0iNSP170..Q,V201607-201907

BLACK,TRIM20

main58804-0D240-C0iNSP170..Q,V201607-201907

BLACK,TRIM2#

main58804-0D240-C0iNSP170..6F..TH201907-202203

BLACK,TRIM2#

main58804-0D240-C0iNSP170..CVT;NSP170..6F..IDN201907

BLACK,TRIM2#

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-0D150-A1iNSP170..Q,V201607-201907

FROMAGE,TRIM0#,21

main58805-0D150-C1iNSP170..Q,V201607-201907

BLACK,TRIM20

main58805-0D150-C1iNSP170..Q,V201607-201907

BLACK,TRIM2#

main58805-0D150-C1iNSP170..6F..TH201907-202203

BLACK,TRIM2#

main58805-0D150-C1iNSP170..CVT;NSP170..6F..IDN201907

BLACK,TRIM2#

58833ACOVER, CONSOLE, UPPER

main58833-0D140-A0iNSP170..Q,V201607-201907

FROMAGE,TRIM0#,21

main58833-0D140-C0iNSP170..Q,V201607-201907

BLACK,TRIM20

main58833-0D140-C0iNSP170..Q,V201607-201907

BLACK,TRIM2#

main58833-0D140-C0iNSP170..6F..TH201907-202203

BLACK,TRIM2#

main58833-0D140-C0iNSP170..CVT;NSP170..6F..IDN201907

BLACK,TRIM2#

58834ACOVER, CONSOLE, LOWER

main58834-0D130-C2iNSP170..6F..V201607-201907

PIANOBLACK_22BK22,TRIM0#,2#

main58834-0D130-C2iNSP170..6F..V201907

PIANOBLACK_22BK22,TRIM2#

main58834-0D140-C4iNSP170..6F..(E,G)..IDN201907

PIANOBLACK_22BK22,TRIM2#

main58834-0D140-C4iNSP170..6F..(E,G)201607-201907

PIANOBLACK_22BK22,TRIM2#

main58834-0D140-C4iNSP170..6F..TH201907-202203

PIANOBLACK_22BK22,TRIM2#

main58834-0D150-C0iNSP170..CVT..(Q,V)201607-201907

PIANOBLACK_22BK22,TRIM0#,2#

main58834-0D150-C0iNSP170..CVT..(Q,V)201907

PIANOBLACK_22BK22,TRIM2#

main58834-0D160-C0iNSP170..CVT..(E,G)201607-201907

PIANOBLACK_22BK22,TRIM2#

main58834-0D160-C0iNSP170..CVT..(E,G)201907

PIANOBLACK_22BK22,TRIM2#

58904BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58904-0D100-C1iNSP170..Q,V201607-201907

BLACK,TRIM0#,2#

main58904-0D100-C1iNSP170..Q,V201607-201907

BLACK,TRIM2#

main58904-0D100-C1iNSP170..6F..TH201907-202203

BLACK,TRIM2#

main58904-0D100-C1iNSP170..CVT;NSP170..6F..IDN201907

BLACK,TRIM2#

58910CBOX ASSY, CONSOLE, REAR

main58910-0D320-A0iNSP170..Q,V201607-201907

FROMAGE,TRIM0#,21

main58910-0D320-C0iNSP170..Q,V201607-201907

BLACK,TRIM20

main58910-0D320-C0iNSP170..Q,V201607-201907

BLACK,TRIM2#

main58910-0D320-C0iNSP170..6F..TH201907-202203

BLACK,TRIM2#

main58910-0D320-C0iNSP170..CVT;NSP170..6F..IDN201907

BLACK,TRIM2#

58981BRETAINER, CONSOLE MOUNTING, NO.1

main58164-0D090iNSP170201607-201907

main58164-0D090iNSP170..6F..TH201907-202203

main58164-0D090iNSP170..CVT;NSP170..6F..IDN201907

90167T0012

main90167-T0012

9046705171

main90467-05171¥60

9046710203

main90467-10203¥60

9167380616

main91673-80616¥60

11 parts on this diagram · 1 diagram in section
