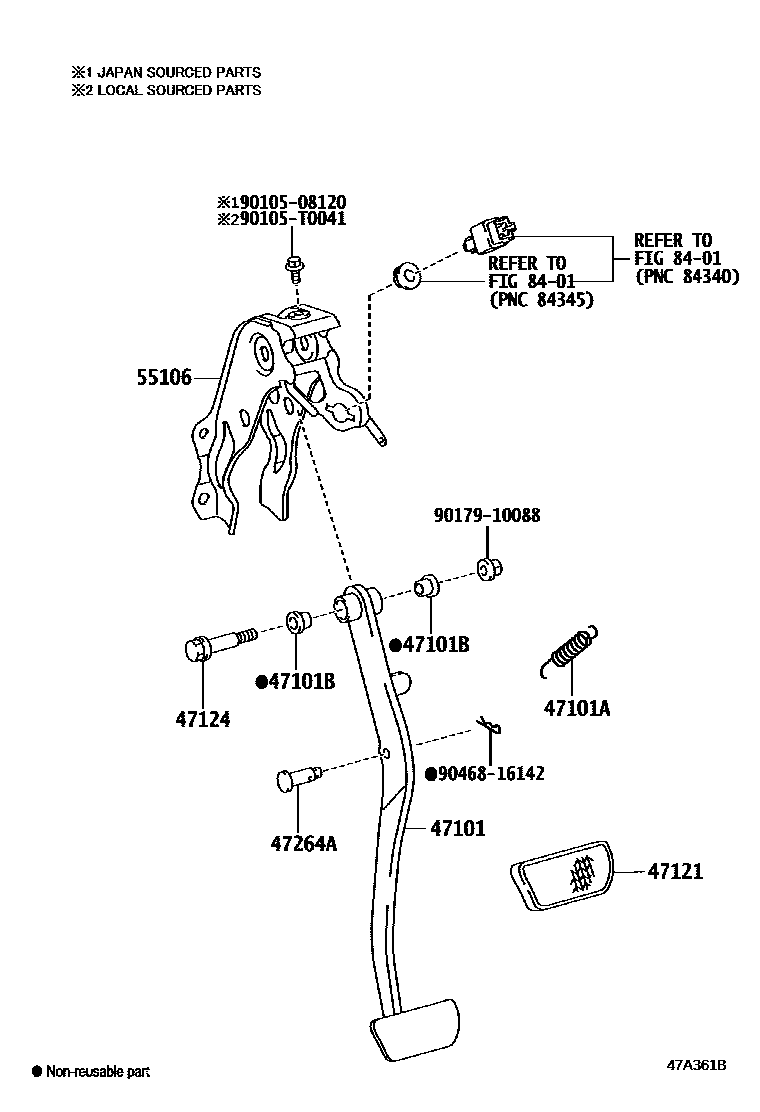

Toyota SIENTA (ASIA) — BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-0D480iNSP170..6F201607-201907

main47101-0D480iNSP170..6F..TH201907-202203

main47101-0D480iNSP170..6F..IDN201907

main47101-0D490iNSP170..CVT201607-201907

main47101-0D490iNSP170..CVT201907

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14088iNSP170..6F..TH¥120201907-202203

(J)

main90506-14088iNSP170¥120201607-201907

(J)

main90506-14088iNSP170..CVT;NSP170..6F..IDN¥120201907

(J)

main90506-T0015iNSP170..6F..TH201907-202203

(L)

main90506-T0015iNSP170..CVT;NSP170..6F..IDN201907

(L)

main90506-T0015iNSP170201607-201907

(L)

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iNSP170..CVT;NSP170..6F..IDN¥120201907

main90386-13015iNSP170¥120201607-201907

main90386-13015iNSP170..6F..TH¥120201907-202203

47121PAD, BRAKE PEDAL

main31321-52010iNSP170..6F¥200201607-201907

main31321-52010iNSP170..6F..TH¥200201907-202203

main31321-52010iNSP170..6F..IDN¥200201907

main47121-52010iNSP170..CVT¥260201907

main47121-52010iNSP170..CVT¥260201607-201907

47124SHAFT, BRAKE PEDAL

main90109-10167iNSP170¥190201607-201907

main90109-10167iNSP170..6F..TH¥190201907-202203

main90109-10167iNSP170..CVT;NSP170..6F..IDN¥190201907

47264APIN(FOR PUSH ROD)

main90249-08051iNSP170¥170201607-201907

main90249-08051iNSP170..6F..TH¥170201907-202203

main90249-08051iNSP170..CVT;NSP170..6F..IDN¥170201907

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-0D200iNSP170..6F..TH201907-202203

main55106-0D200iNSP170201607-201907

main55106-0D200iNSP170..CVT;NSP170..6F..IDN201907

8401

9010508120

main90105-08120¥90

90105T0041

main90105-T0041

9017910088

main90179-10088¥100

9046816142

main90468-16142¥70

12 parts on this diagram · 1 diagram in section
