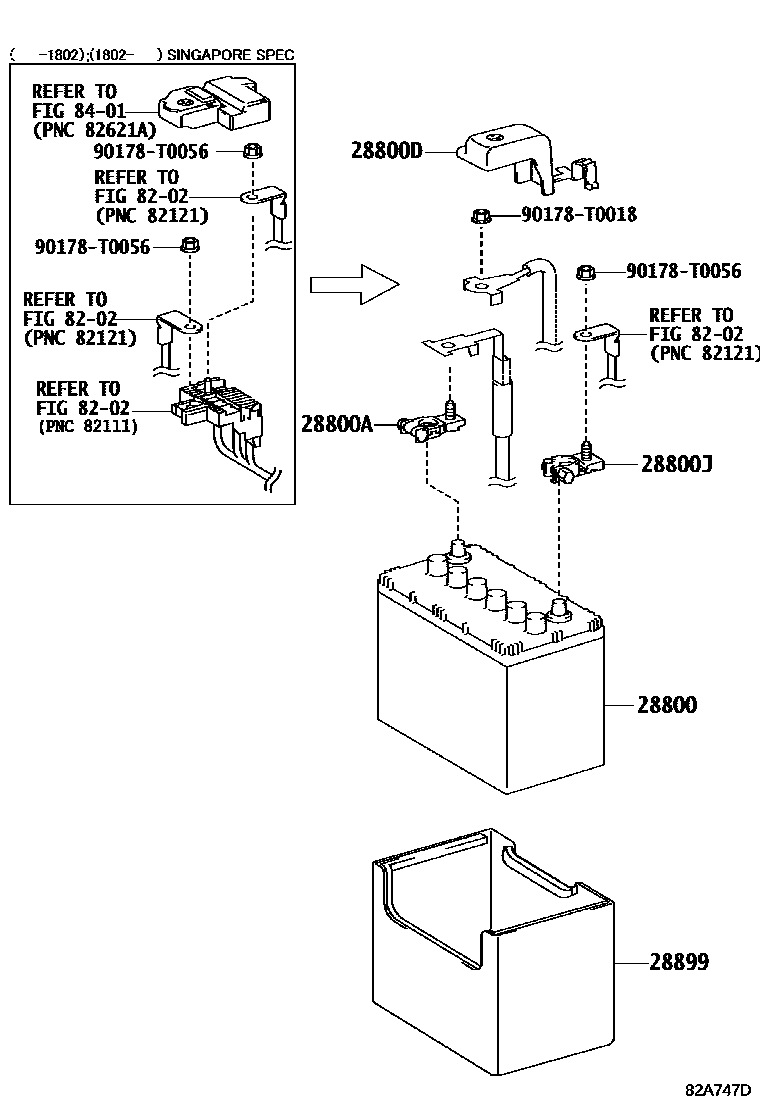

Toyota SIENTA (ASIA) — BATTERY & BATTERY CABLE

28800BATTERY

main28800-0Y160i2NRFE..NSP170201607-201811

46B24L(S)

sub28800-0Y161

main28800-0Y161i2NRFE..NSP170201812-202211

46B24L(S)

sub28800-0Y162

main28800-0Y162i2NRFE..NSP170..CVT;2NRFE..NSP170..6F..IDN202212

46B24L(S)

28800ATERMINAL, BATTERY POSITIVE

main90982-05061i2NRFE..NSP170¥850201607-202203

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12490i2NRFE..NSP170¥570201803-202203

28800JTERMINAL, BATTERY NEGATIVE

main90982-06059i2NRFE..NSP170¥850201607-202203

28899INSULATOR, BATTERY

main28899-0Y010i2NRFE..NSP170201607-202203

8202

8401

90178T0018

main90178-T0018¥70

90178T0056

main90178-T0056

9 parts on this diagram · 1 diagram in section
