Toyota SIENTA (ASIA) — ARMREST & VISOR

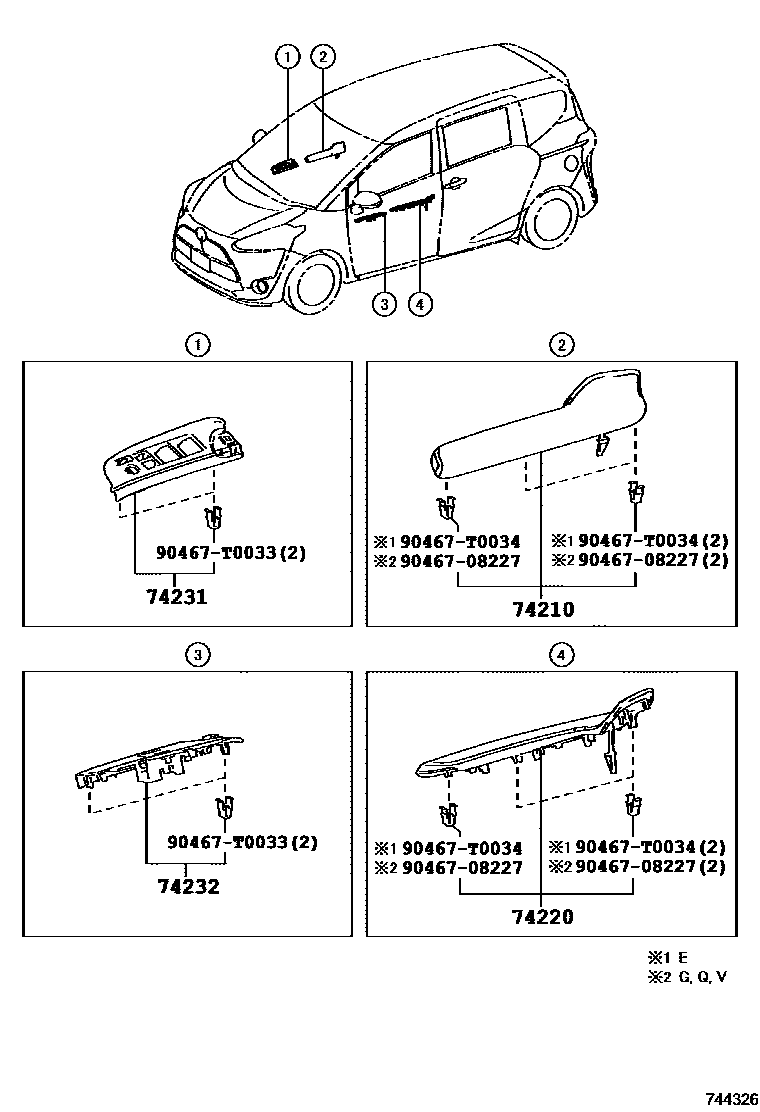

0001 1ARMREST 0002 1ASSIST GRIP & VISOR

74210ARMREST ASSY, FRONT, RH

main74210-0D010-C0iNSP170..E201607-201907

BLACK,TRIM2#

main74210-0D020-C0iNSP170..Q,V201607-201907

BLACK,TRIM0#,21

main74210-0D020-C0iNSP170..Q,V201607-201907

BLACK,TRIM2#

main74210-0D020-E0iNSP170..Q,V201607-201907

DK.BROWN,TRIM20

main74210-0D220-C0iNSP170..Q,V201907

BLACK,TRIM22

main74210-0D220-C0iNSP170..6F..TH201907-202203

BLACK,TRIM2#

main74210-0D220-E0iNSP170..Q,V201907

DK.BROWN,TRIM20

74220ARMREST ASSY, FRONT, LH

main74220-0D010-C0iNSP170..E201607-201907

BLACK,TRIM2#

main74220-0D020-C0iNSP170..Q,V201607-201907

BLACK,TRIM0#,21

main74220-0D020-C0iNSP170..G201607-201907

BLACK,TRIM2#

main74220-0D020-E0iNSP170..Q,V201607-201907

DK.BROWN,TRIM20

main74220-0D220-C0iNSP170..Q,V201907-202203

BLACK,TRIM2#

main74220-0D220-C0iNSP170..Q,V201907

BLACK,TRIM22

main74220-0D220-E0iNSP170..Q,V201907

DK.BROWN,TRIM20

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-0D800-A0iNSP170..Q,V201607-201907

FROMAGE,TRIM0#,21

main74231-0D800-C0iNSP170..Q,V201607-201907

BLACK,TRIM2#

main74231-0D800-C0iNSP170..CVT..G..TH201607-201907

BLACK,TRIM20

main74231-0D810-C0iNSP170..6F..TH;NSP170..(E,G)..IDN201607-202203

BLACK,TRIM2#

main74231-0D810-C0iNSP170..6F..TH;NSP170..(E,G)..IDN201607-202203

SINGAPORE SPEC,BLACK,TRIM2#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-0D760-A0iNSP170..Q,V201607-201907

FROMAGE,TRIM0#,21

main74232-0D760-C0iNSP170..CVT;NSP170..6F..IDN201607-202203

BLACK,TRIM2#

main74232-0D760-C0iNSP170..Q,V201607-201907

BLACK,TRIM20

9046708227

main90467-08227¥80

90467T0033

main90467-T0033

90467T0034

main90467-T0034

7 parts on this diagram · 2 diagrams in section
