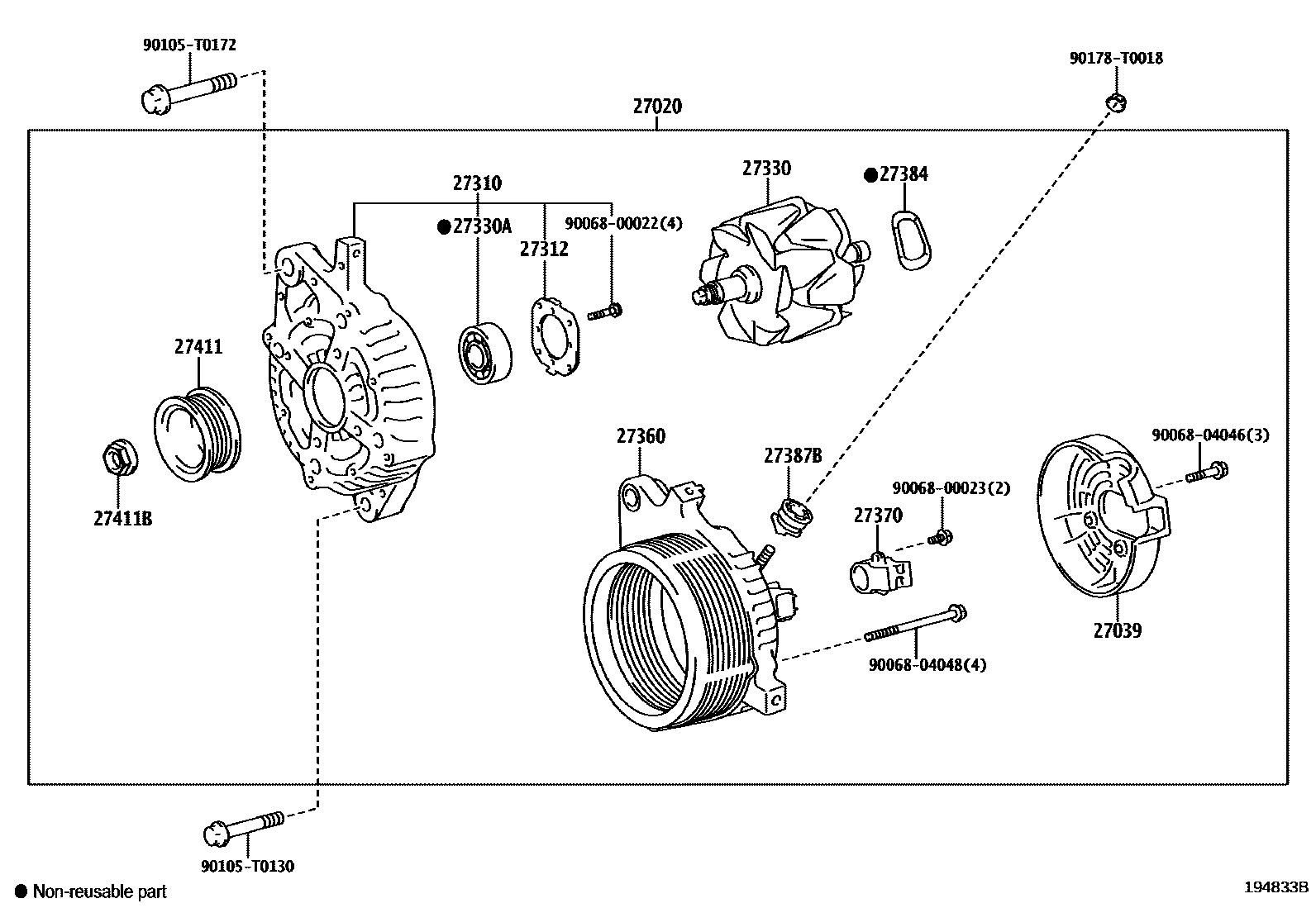

Toyota SIENTA (ASIA) — ALTERNATOR

27020ALTERNATOR ASSY

main27060-0Y220i2NRFE..NSP170201607-202203

12V 100A

27039COVER, ALTERNATOR REAR END

main27039-0Y200i2NRFE..NSP170201607-202203

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0Y200i2NRFE..NSP170201607-202203

27312PLATE, RETAINER

main27312-0C020i2NRFE..NSP170201607-202203

27330ROTOR ASSY, ALTERNATOR

main27330-0L140i2NRFE..NSP170¥14,700201607-202203

27330ABEARING(FOR ALTERNATOR ROTOR)

main90068-10042i2NRFE..NSP170201607-202203

27360COIL ASSY, ALTERNATOR

main27360-0Y200i2NRFE..NSP170201607-202203

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-0M040i2NRFE..NSP170201607-202203

27384WASHER

main27384-38130i2NRFE..NSP170201607-202203

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-0C020i2NRFE..NSP170201607-202203

27411PULLEY, ALTERNATOR

main27411-0Y200i2NRFE..NSP170201607-202203

27411BNUT(FOR ALTERNATOR PULLEY)

main90068-05009i2NRFE..NSP170201607-202203

9006800022

main90068-00022

9006800023

main90068-00023

9006804046

main90068-04046

9006804048

main90068-04048

90105T0130

main90105-T0130

90105T0172

main90105-T0172

90178T0018

main90178-T0018¥70

19 parts on this diagram · 1 diagram in section
