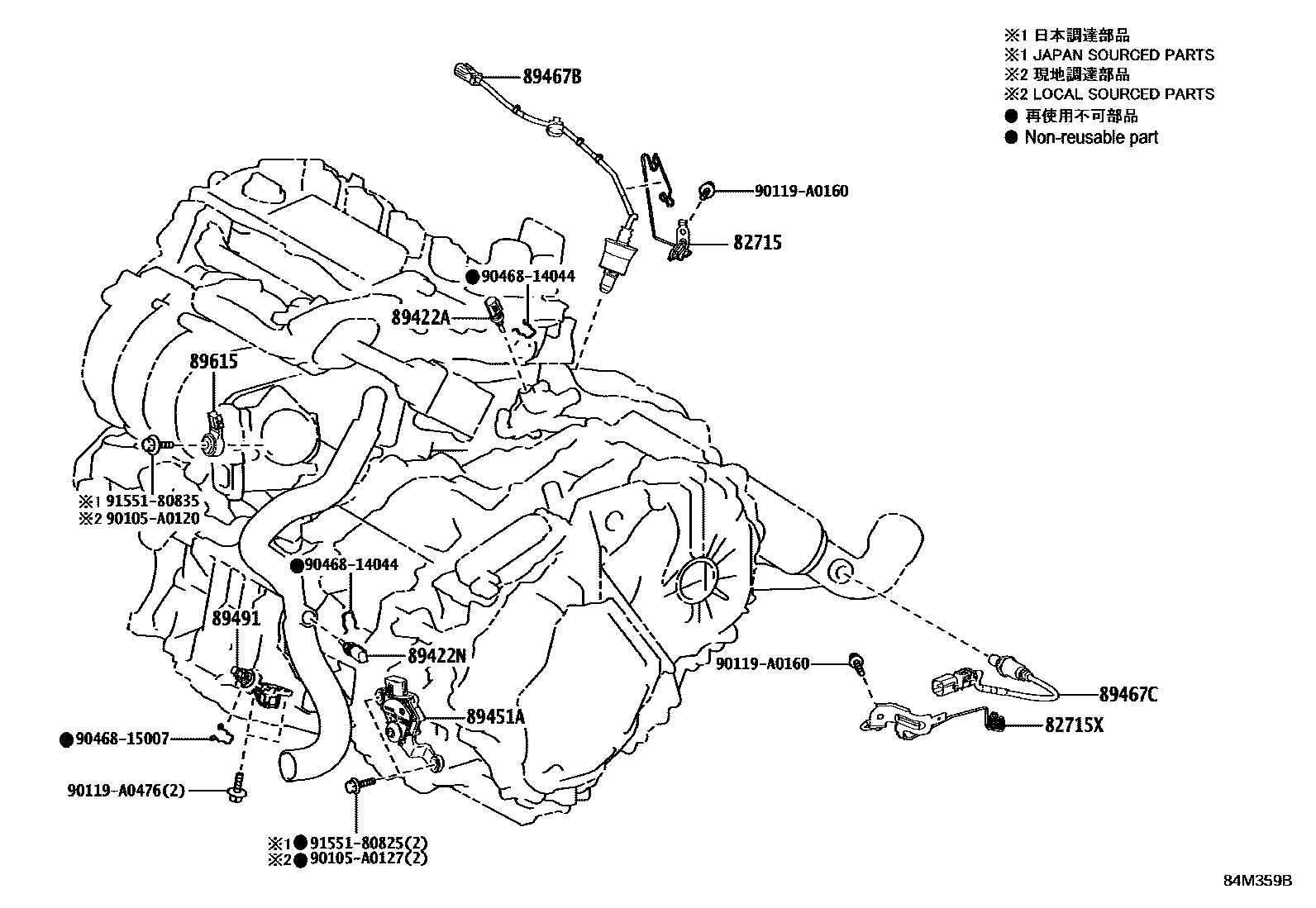

Toyota SIENNA — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM RELAY BLOCK 0003 1COWL 0004 1INSTRUMENT PANEL 0005 1CONSOLE BOX 1/2 0006 1CONSOLE BOX 2/2, W(COOLER BOX0007 1STEERING 0008 1SEAT 0009 1DOOR & ROOF 0010 1FLOOR & BACK DOOR 1/2 0011 1FLOOR & BACK DOOR 2/2

82715BRACKET,WIRING HARNESS CLAMP

main82715-33V10iAXLH4#202410

main82715-33V10iAXLH4#202011-202410

82715XBRACKET, WIRING HARNESS CLAMP, NO.2

main82715-42K60iAXLH4#¥520202410

main82715-42K60iAXLH4#¥520202011-202410

89422ASENSOR, WATER TEMPERATURE

main89422-33040iAXLH4#¥2,410202410

main89422-33040iAXLH4#¥2,410202011-202410

89422NSENSOR, WATER TEMPERATURE, NO.2

main89422-33040iAXLH4#¥2,410202410

MEXICO SPEC

main89422-33040iAXLH4#¥2,410202011-202410

MEXICO SPEC

89451ASENSOR, SHIFT LEVER POSITION

main89451-10010iAXLH4#¥5,900202410

main89451-10010iAXLH4#¥5,900202011-202410

89467BSENSOR, AIR FUEL RATIO

main89467-0E280iAXLH4#202011-202410

main89467-0E280iAXLH4#202410

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-0R100iAXLH4#202011-202410

main89467-0R100iAXLH4#202410

89491SENSOR, ENGINE OIL LEVEL

main89491-33051iAXLH4#¥3,670202011-202204

sub89491-33052¥3,330

main89491-33052iAXLH4#¥3,330202205-202410

main89491-33052iAXLH4#¥3,330202410

89615SENSOR, KNOCK CONTROL

main89615-06010iAXLH4#202410

MARK 89615-06010

main89615-06010iAXLH4#202011-202410

MARK 89615-06010

main89615-20090iAXLH4#¥2,370202011-202410

MARK 89615-20090

main89615-20090iAXLH4#¥2,370202410

MARK 89615-20090

main89615-78010iAXLH4#¥10,600202207-202410

MARK 89615-78010

main89615-78010iAXLH4#¥10,600202410

MARK 89615-78010

main89615-F6010iAXLH4#202207-202410

MARK 89615-F6010

main89615-F6010iAXLH4#202410

MARK 89615-F6010

90105A0120

main90105-A0120

90105A0127

main90105-A0127

90119A0160

main90119-A0160

90119A0476

main90119-A0476

9046814044

main90468-14044¥60

9046815007

main90468-15007¥80

9155180825

main91551-80825¥80

9155180835

main91551-80835¥80

17 parts on this diagram · 11 diagrams in section
