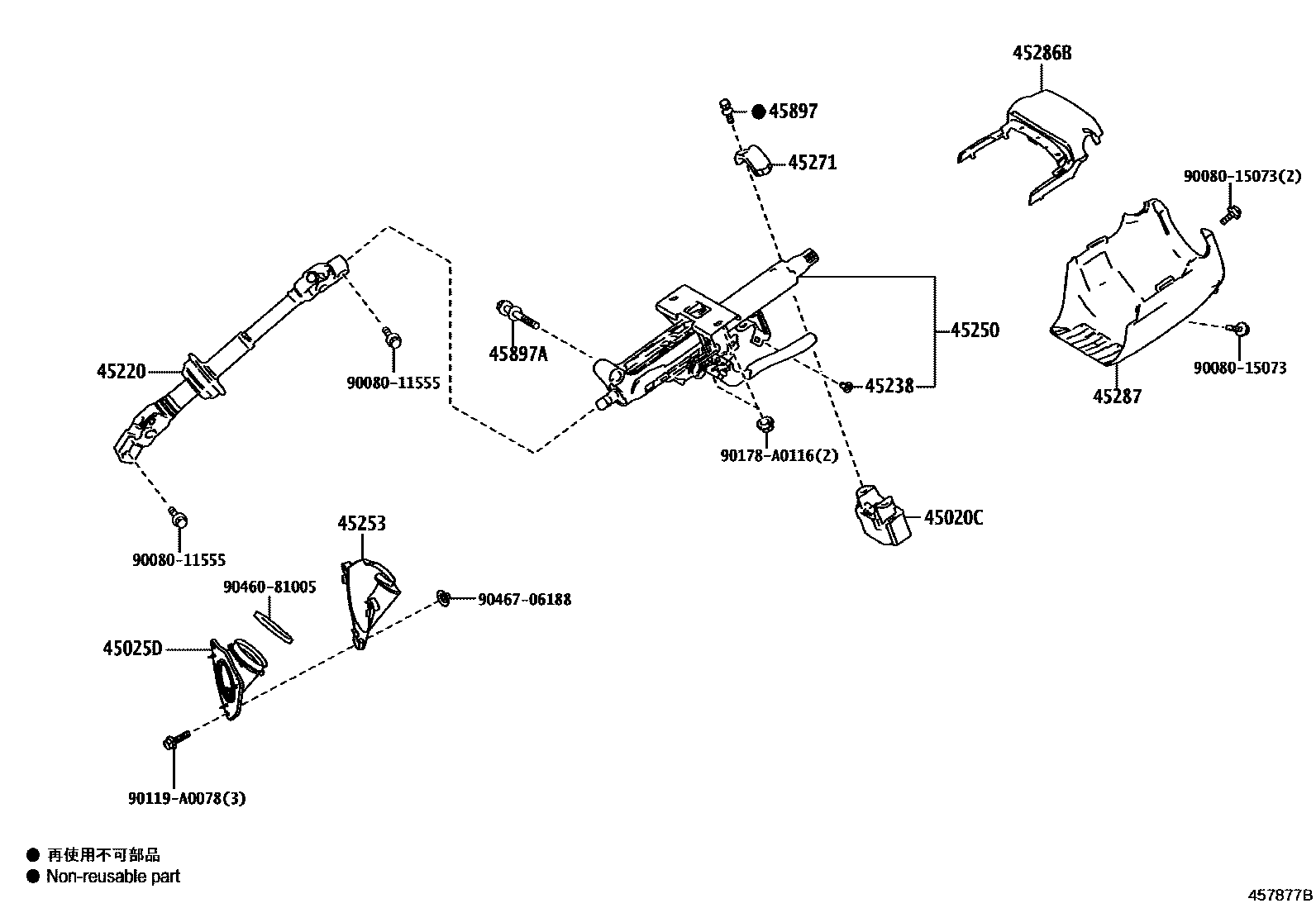

Toyota SIENNA — STEERING COLUMN & SHAFT

0001 1 0002 1 0003 125TH ANNIVERSARY 0004 1XSE PREMIUM 0005 1 0006 1 0007 1XSE PREMIUM

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-08020iAXLH4#..E,S,X202011-202109

main45020-08030iAXLH4#..L202011-202109

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-08060iAXLH4#202410

main45025-08060iAXLH4#202011-202410

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-08060iAXLH4#202011-202410

main45220-08060iAXLH4#202410

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-11010iAXLH4#..L¥70202410

main45238-11010iAXLH4#..L¥70202011-202410

main45238-52010iAXLH4#..E,S,X¥70202011-202410

main45238-52010iAXLH4#..E,S,X¥70202410

45250COLUMN ASSY, STEERING

main45250-08100iAXLH4#..E,S,X202011-202410

main45250-08100iAXLH4#..E,S,X202410

main45250-08110iAXLH4#..L202011-202209

main45250-08140iAXLH4#..L202209-202410

main45250-08140iAXLH4#..L202410

45253COVER, STEERING COLUMN HOLE

main45253-08050iAXLH4#202410

main45253-08050iAXLH4#202011-202410

45271CLAMP, STEERING COLUMN, UPPER

main45271-08010iAXLH4#..E,S,X202011-202109

45286BCOVER, STEERING COLUMN, UPR

main45286-06330-C0iAXLH4#..E,S202011-202410

BLACK,TRIM1#

main45286-06330-C0iAXLH4#202410

BLACK

main45286-06330-C0iAXLH4#..L,X202011-202410

BLACK,TRIM1#,4#

45287COVER, STEERING COLUMN, LWR

main45287-06420-C0iAXLH4#..E,S,X202410

BLACK

main45287-06420-C0iAXLH4#..X202011-202410

BLACK,TRIM1#

main45287-06420-C0iAXLH4#..E,S202011-202410

BLACK,TRIM1#,4#

main45287-06430-C0iAXLH4#..L202011-202410

BLACK,TRIM1#,4#

main45287-06430-C0iAXLH4#..L202410

BLACK

45897BOLT, STEERING LOCK SET

main45897-08010iAXLH4#¥200202011-202109

45897ABOLT, TILT STEERING PAWL SET

main90119-10980iAXLH4#¥190202410

TYPE A:REFER ILLUST.

main90119-10981iAXLH4#¥190202410

(J),TYPE B:REF ILL.

main90119-A0362iAXLH4#202011-202410

main90119-A0362iAXLH4#202410

(L),TYPE B:REF ILL.

9008011555

main90080-11555

9008015073

main90080-15073

90119A0078

main90119-A0078¥80

90178A0116

main90178-A0116

9046081005

main90460-81005¥310

9046706188

main90467-06188¥160

17 parts on this diagram · 7 diagrams in section
