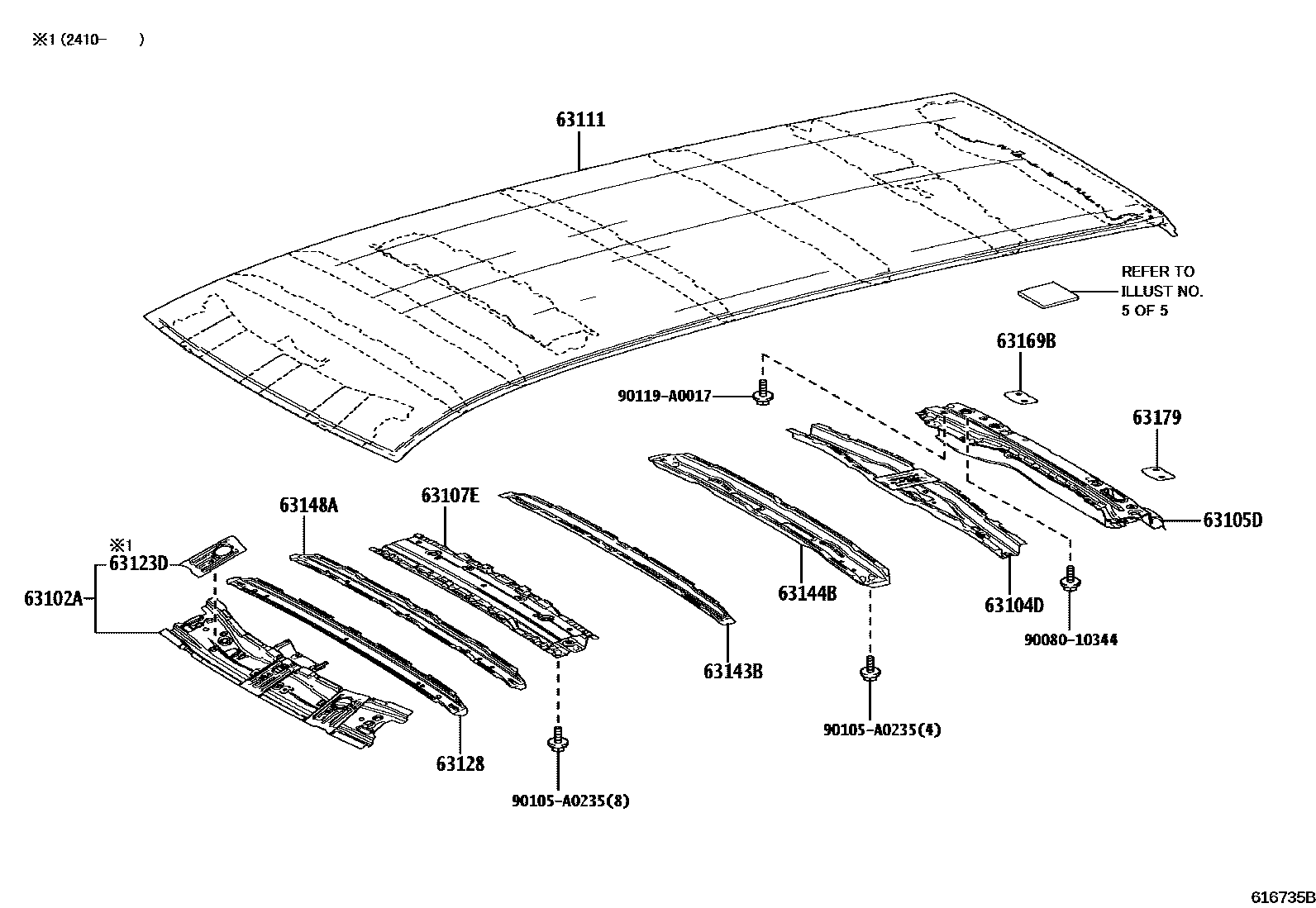

Toyota SIENNA — ROOF PANEL & BACK PANEL

0001 1ROOF PANEL(NORMAL) 0002 1ROOF PANEL(MOON ROOF) 0003 1SLIDING ROOF(MOON ROOF) 0004 1DRAIN HOSE(MOON ROOF) 0005 1ROOF RAIL 0006 1HIGH DECREMENT MASTIC SEAL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-08040iAXLH4#..E202011-202410

ROOF RAIL-WITH(BLACK)&MOON ROOF-WITHOUT

main63102-08040iAXLH4#..E202011-202410

MOON ROOF-WITHOUT

main63102-08040iAXLH4#..E202410

ROOF RAIL-WITH(BLACK)&MOON ROOF-WITHOUT

main63102-08040iAXLH40..X202410

MOON ROOF-WITHOUT

main63102-08050iAXLH4#..L,S,X202410

MOON ROOF-WIHT

main63102-08050iAXLH4#..L,S,X202410

ROOF RAIL-WITH(BLACK)&MOON ROOF-WIHT

main63102-08050iAXLH4#..L,S,X202011-202410

ROOF RAIL-WITH(BLACK)&MOON ROOF-WIHT

main63102-08050iAXLH4#..L,S,X202011-202410

MOON ROOF-WIHT

63104DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2

main63104-08030iAXLH4#202410

main63104-08030iAXLH4#202011-202410

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-08030iAXLH4#202410

main63105-08030iAXLH4#202011-202410

63107EREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.5

main63107-08030iAXLH40..X202410

MOON ROOF-WITHOUT

main63107-08030iAXLH4#..E202410

ROOF RAIL-WITH(BLACK)&MOON ROOF-WITHOUT

main63107-08030iAXLH4#..E202011-202410

ROOF RAIL-WITH(BLACK)&MOON ROOF-WITHOUT

main63107-08030iAXLH4#..E202011-202410

MOON ROOF-WITHOUT

main63107-08040iAXLH4#..E202410

MOON ROOF-WIHT

main63107-08040iAXLH4#..L,S,X202011-202410

MOON ROOF-WIHT

main63107-08040iAXLH4#..E202011-202410

ROOF RAIL-WITH(BLACK)&MOON ROOF-WIHT

main63107-08040iAXLH4#..L,S,X202410

ROOF RAIL-WITH(BLACK)&MOON ROOF-WIHT

63111PANEL, ROOF

main63111-08250iAXLH4#..E202410

MOON ROOF-WITHOUT

main63111-08250iAXLH40..X202011-202410

MOON ROOF-WITHOUT

main63111-08270iAXLH4#..S,X202410

MOON ROOF-WIHT

main63111-08270iAXLH4#..E202011-202410

MOON ROOF-WIHT

main63111-08270iAXLH4#..E202011-202312

ROOF RAIL-WITH(BLACK)&MOON ROOF-WIHT

main63111-08281iAXLH4#..S,X202312-202410

ROOF RAIL-WITH(BLACK)&MOON ROOF-WIHT

main63111-08281iAXLH4#..L202410

ROOF RAIL-WITH(BLACK)

main63111-08281iAXLH4#..L202410

ROOF RAIL-WITH(BLACK)&MOON ROOF-WIHT

main63111-08281iAXLH4#..L202312-202410

ROOF RAIL-WITH(BLACK)

63123DREINFORCEMENT, ROOF PANEL, FRONT RH

main63123-08020iAXLH4#..E,S,X202410

63128REINFORCEMENT, ROOF PANEL, NO.6

main63128-08020iAXLH4#..E202410

ROOF RAIL-WITH(BLACK)&MOON ROOF-WITHOUT

main63128-08020iAXLH4#..E202410

MOON ROOF-WITHOUT

main63128-08020iAXLH4#..E202011-202410

ROOF RAIL-WITH(BLACK)&MOON ROOF-WITHOUT

main63128-08020iAXLH4#..E202011-202410

MOON ROOF-WITHOUT

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-08040iAXLH4#202410

main63143-08040iAXLH4#202011-202410

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-08030iAXLH4#202410

main63144-08030iAXLH4#202011-202410

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-08020iAXLH4#..E202410

ROOF RAIL-WITH(BLACK)&MOON ROOF-WITHOUT

main63148-08020iAXLH4#..E202410

MOON ROOF-WITHOUT

main63148-08020iAXLH4#..E202011-202410

ROOF RAIL-WITH(BLACK)&MOON ROOF-WITHOUT

main63148-08020iAXLH4#..E202011-202410

MOON ROOF-WITHOUT

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-0E060iAXLH4#202410

main63169-0E060iAXLH4#202011-202410

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63169-0E060iAXLH4#202410

main63169-0E060iAXLH4#202011-202410

9008010344

main90080-10344

90105A0235

main90105-A0235

90119A0017

main90119-A0017

15 parts on this diagram · 6 diagrams in section
