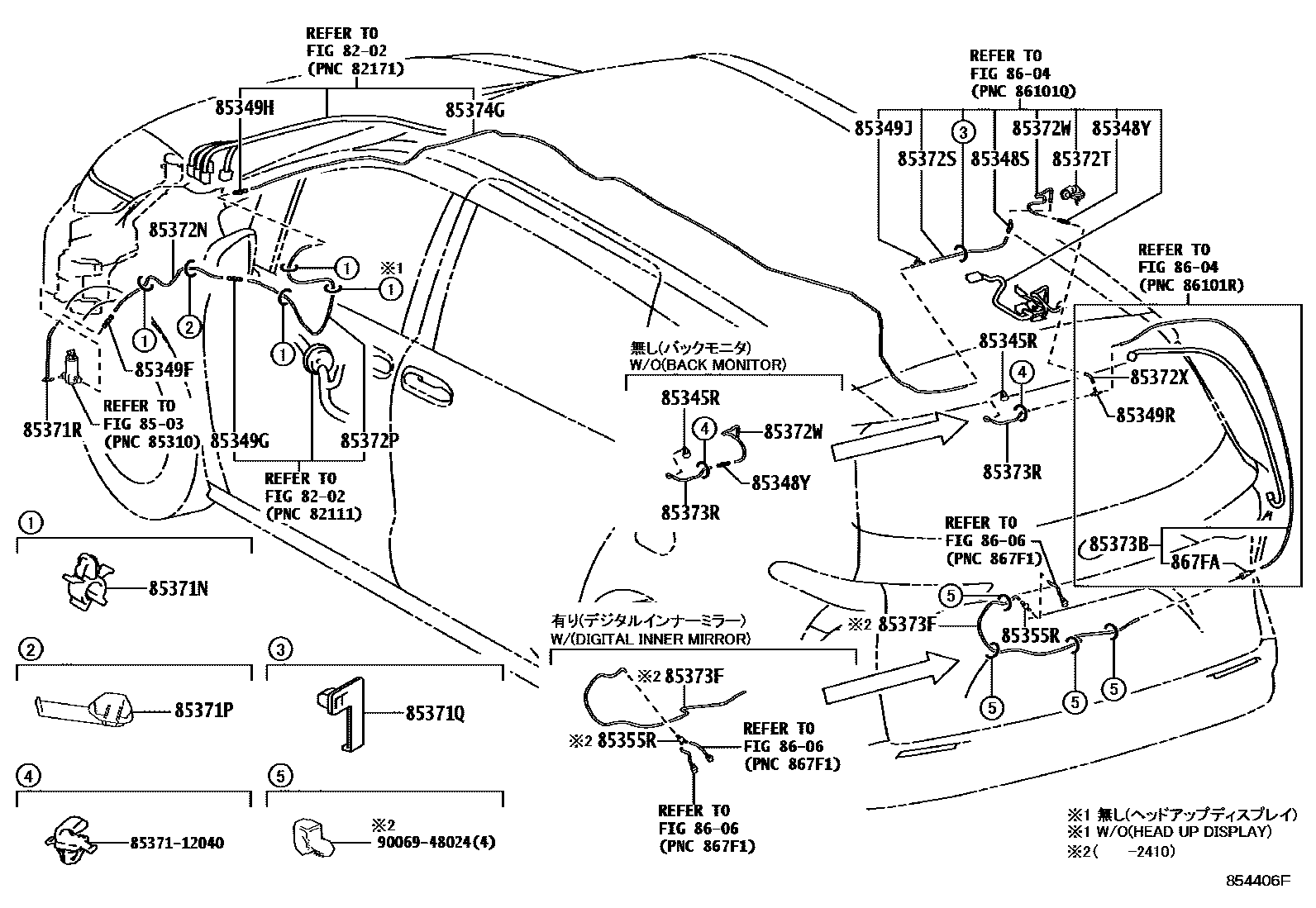

Toyota SIENNA — REAR WASHER
8202
8503
85345RNOZZLE, REAR WASHER
85348SJOINT, REAR WASHER ELBOW, NO.1
85348YJOINT, REAR WASHER HOSE, NO.5
85349FJOINT, REAR WASHER HOSE, NO.1
85349GJOINT, REAR WASHER HOSE, NO.2
85349HJOINT, REAR WASHER HOSE, NO.3
85349JJOINT, REAR WASHER HOSE, NO.4
85349RJOINT, REAR WASHER HOSE, NO.5
BACK MONITOR-WITH(BACK GUIDE MONITOR & WASHER)
TAIWAN SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
INSIDE REAR VIEW MIRROR-INTELLIGENT REAR VIEW&BACK MONITOR-WITH(BACK GUIDE MONITOR& WASHER)
85355RVALVE, REAR WASHER HOSE
TAIWAN SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
BACK MONITOR-WITH(BACK GUIDE MONITOR & WASHER)
85371NCLAMP, REAR WASHER HOSE
HEAD UP DISPLAY-WITH
85371PCLAMP, REAR WASHER HOSE, NO.2
85371QCLAMP, REAR WASHER HOSE, NO.3
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=410
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=750,HEAD UP DISPLAY-WITH
L=750
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=940
L=940,HEAD UP DISPLAY-WITH
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
L=330,HEAD UP DISPLAY-WITH
L=330
85372TGROMMET, WASHER
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
L=1250(*H,L=310)
L=1250(*H,L=310),HEAD UP DISPLAY-WITH
85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
L=43,INSIDE REAR VIEW MIRROR-INTELLIGENT REAR VIEW
L=43
L=43,TAIWAN SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
L=43,INSIDE REAR VIEW MIRROR-INTELLIGENT REAR VIEW&BACK MONITOR-WITH(BACK GUIDE MONITOR & WASHER)
L=43,BACK MONITOR-WITH(BACK GUIDE MONITOR & WASHER)
85373BHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7
L=1335
L=1335,TAIWAN SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
L=1335,INSIDE REAR VIEW MIRROR-INTELLIGENT REAR VIEW
L=1335,INSIDE REAR VIEW MIRROR-INTELLIGENT REAR VIEW&BACK MONITOR-WITH(BACK GUIDEMONITOR & WASHER)
L=1335,BACK MONITOR-WITH(BACK GUIDE MONITOR & WASHER)
85373FHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.8
L=1039
L=1039,TAIWAN SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
L=1039,INSIDE REAR VIEW MIRROR-INTELLIGENT REAR VIEW
L=1039,INSIDE REAR VIEW MIRROR-INTELLIGENT REAR VIEW&BACK MONITOR-WITH(BACK GUIDEMONITOR & WASHER)
L=1039,BACK MONITOR-WITH(BACK GUIDE MONITOR & WASHER)
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=280
L=280,HEAD UP DISPLAY-WITH
85374GHOSE,WINDSHIELD WASHER (FROM JOINT TO JOINT NO.6)
L=3900
L=3900,HEAD UP DISPLAY-WITH
8604
8606
867FAFILTER, CLEANER HOSE
TAIWAN SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
INSIDE REAR VIEW MIRROR-INTELLIGENT REAR VIEW&BACK MONITOR-WITH(BACK GUIDE MONITOR& WASHER)
BACK MONITOR-WITH(BACK GUIDE MONITOR & WASHER)
8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
9006948024
main90069-48024
30 parts on this diagram · 1 diagram in section
