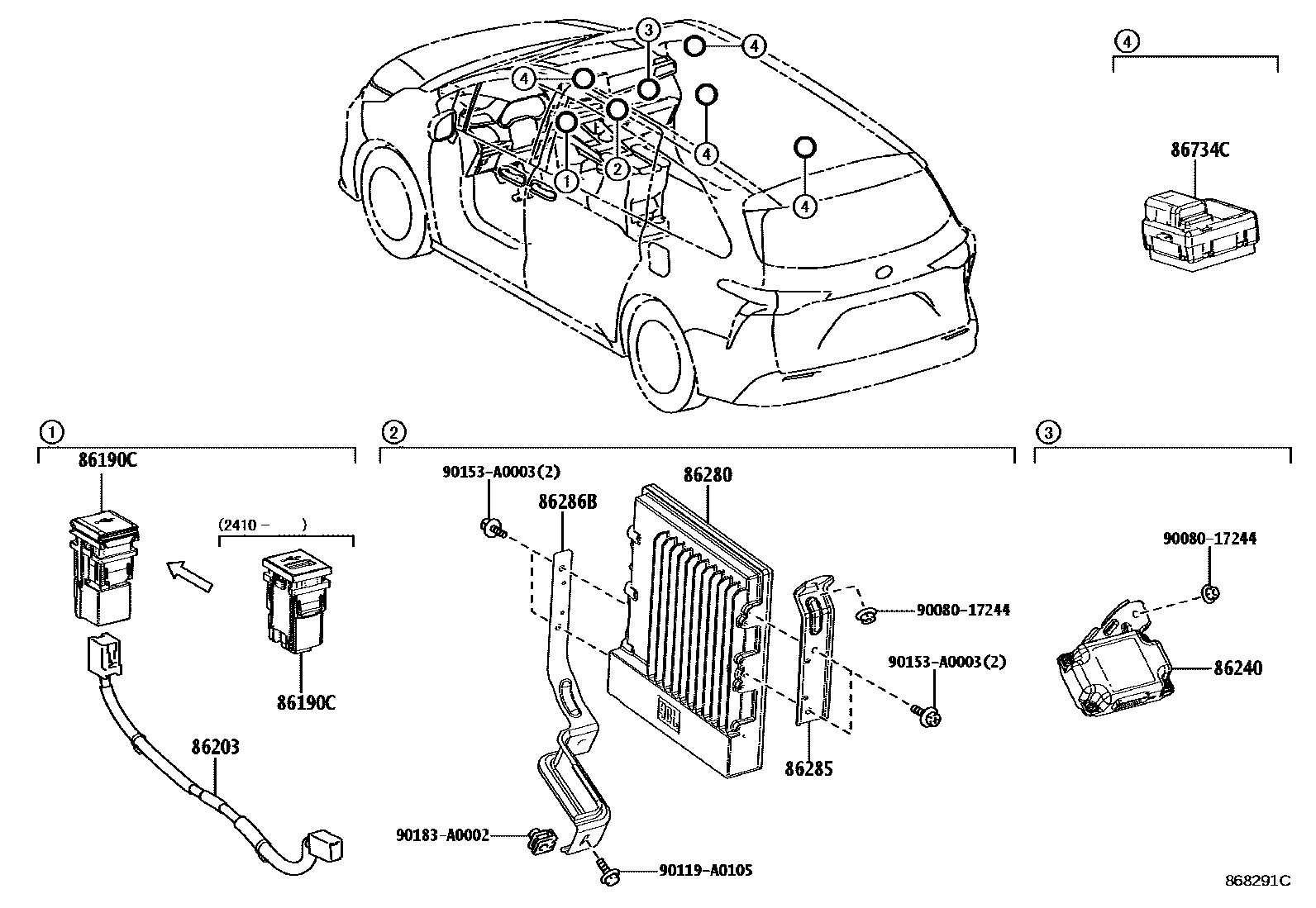

Toyota SIENNA — RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1CONDENSER

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-34010iAXLH4#¥3,780202410

main86190-35020iAXLH4#¥3,780202011-202410

86203WIRE, RADIO

main86203-08050iAXLH4#202011-202410

main86203-08240iAXLH4#202410

86240EQUALIZER ASSY,STEREO COMPONENT

main86240-08010

main86240-08050

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-08070iAXLH4#..S,X202011-202410

AUDIO-SURROUND 12SPEAKER & JBL

main86280-08110iAXLH4#..L202410

AUDIO-JBL SURROUND 12SPEAKER

86285BRACKET, AMPLIFIER, NO.1

main86285-08020iAXLH4#..X202410

AUDIO-JBL SURROUND 12SPEAKER

main86285-08020iAXLH4#..L202011-202410

AUDIO-SURROUND 12SPEAKER & JBL

86286BBRACKET, AMPLIFIER, NO.2

main86286-08022iAXLH4#..L202410

AUDIO-JBL SURROUND 12SPEAKER

main86286-08022iAXLH4#..L202011-202410

AUDIO-SURROUND 12SPEAKER & JBL

86734CMICROPHONE, ACTIVE NOISE CONTROL

9008017244

main90080-17244¥80

90119A0105

main90119-A0105

90153A0003

main90153-A0003

90183A0002

main90183-A0002

11 parts on this diagram · 2 diagrams in section
