Toyota SIENNA — IGNITION COIL & SPARK PLUG / GLOW PLUG

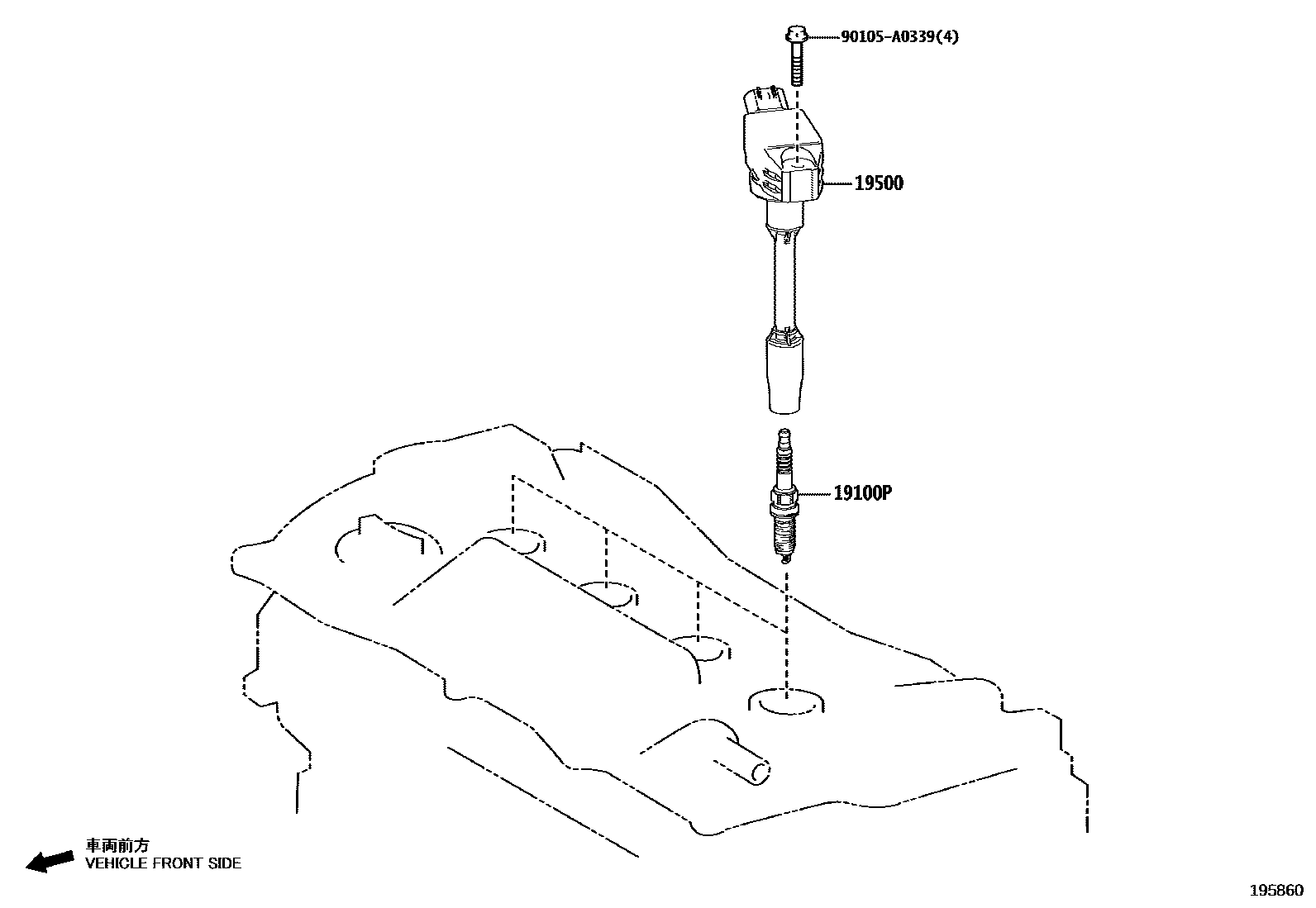

Parts diagram

19100PPLUG, SPARK

main90919-A1001i¥2,300202410

FC16HR-Q8

main90919-A1001i¥2,300202011-202410

FC16HR-Q8

19500COIL ASSY, IGNITION

main90919-A2010i202410

main90919-A2010i202011-202410

90105A0339

main90105-A0339

3 parts on this diagram · 1 diagram in section
