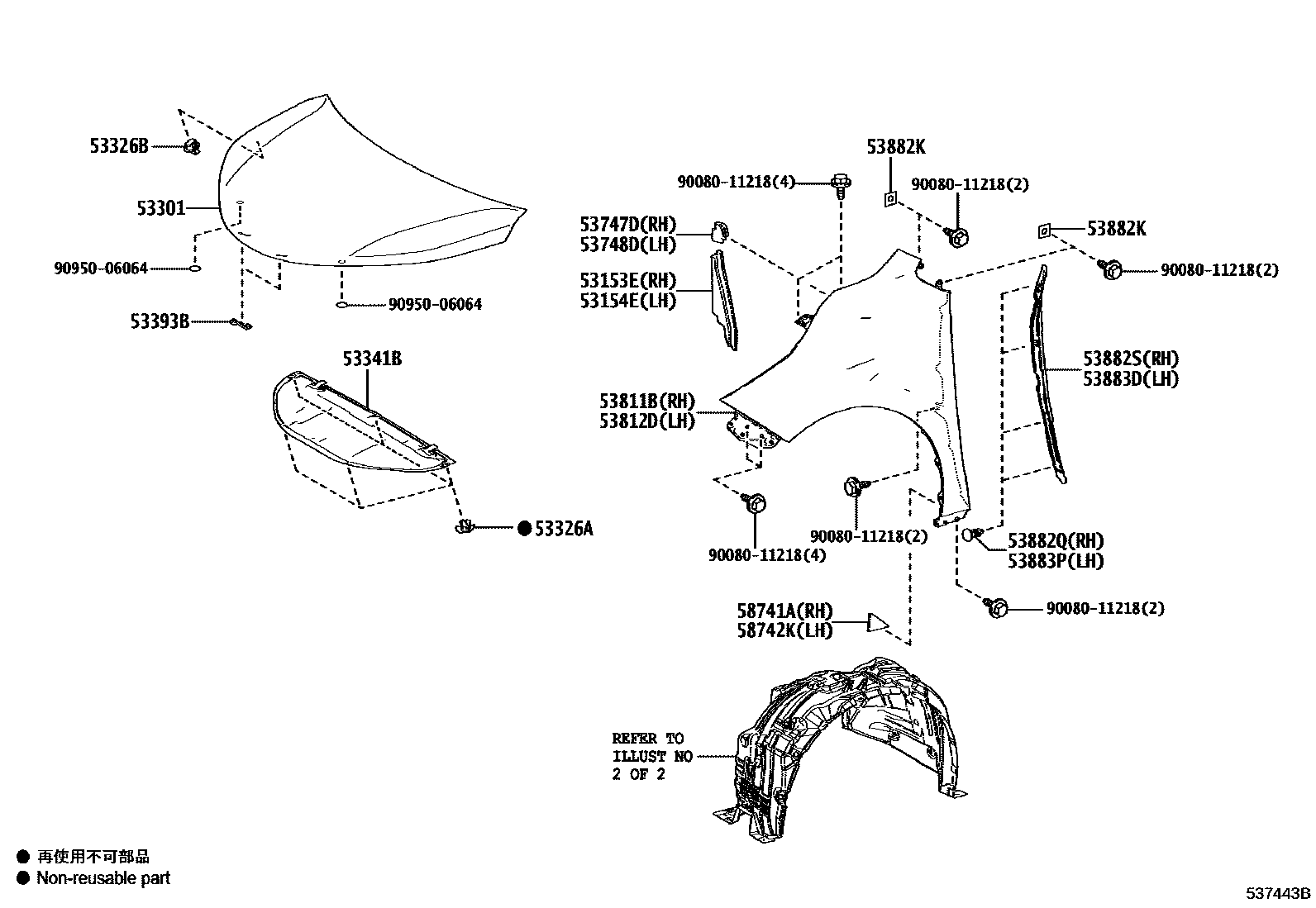

Toyota SIENNA — HOOD & FRONT FENDER

0001 1 0002 1

53153EGUIDE, FRONT SIDE AIR

main53153-08020iAXLH4#..L,S202011-202410

53154EGUIDE, FRONT SIDE AIR, NO.2

main53154-08020iAXLH4#..L,S202011-202410

53301HOOD SUB-ASSY

main53301-08060iAXLH4#202011-202410

53326ACLIP, HOOD MOULDING

main53326-08010iAXLH4#¥60202011-202410

53326BCLIP, HOOD MOULDING

main53326-52010iAXLH4#¥160202011-202410

53341BINSULATOR, HOOD

main53341-08020iAXLH4#202011-202410

53393BPROTECTOR, HOOD, FRONT

main53393-08010iAXLH4#202011-202410

53747DEXTENSION, APRON FENDER SIDE, RH

main53747-08030iAXLH4#..L,S202011-202410

53748DEXTENSION, APRON FENDER SIDE, LH

main53748-08020iAXLH4#..L,S202011-202410

53811BPANEL, FRONT FENDER, RH

main53811-08090iAXLH4#202011-202410

53812DPANEL, FRONT FENDER, LH

main53812-08050iAXLH4#202011-202410

53882KSEAL, FRONT FENDER

main53882-33060iAXLH4#¥60202011-202410

53882QCLIP, NO.1(FOR FRONT FENDER SEAL)

main90467-A0002-C4iAXLH4#202011-202410

BLACK

sub90467-A0002¥130

53882SSEAL, FRONT FENDER, RH

main53882-08030iAXLH4#202011-202410

53883DSEAL, FRONT FENDER, LH

main53883-08030iAXLH4#202011-202410

53883PCLIP, NO.1(FOR FRONT FENDER SEAL)

main90467-A0002-C4iAXLH4#202011-202410

BLACK

sub90467-A0002¥130

58741APROTECTOR, QUARTER PANEL, RH

main58741-08020iAXLH4#202011-202410

58742KPROTECTOR, QUARTER PANEL, LH

main58742-08020iAXLH4#202011-202410

9008011218

main90080-11218¥50

9095006064

main90950-06064¥110

20 parts on this diagram · 2 diagrams in section
