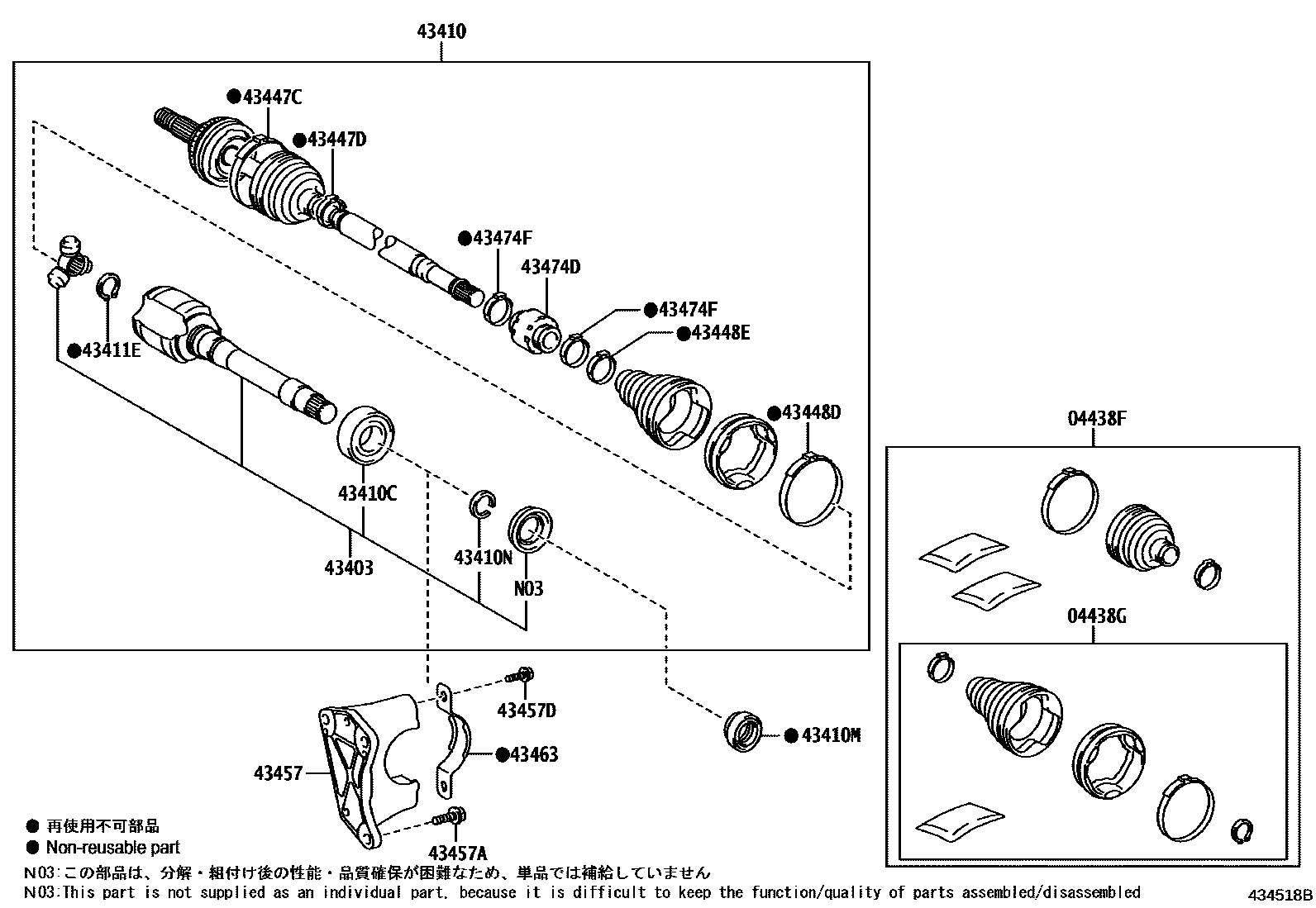

Toyota SIENNA — FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-08280iAXLH4#202011-202410

main04427-08410iAXLH4#202410

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-08110iAXLH4#¥5,100202011-202410

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-08010iAXLH4#202011-202410

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-08150iAXLH4#202011-202410

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90080-36133iAXLH4#¥2,750202011-202410

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40046iAXLH4#¥470202011-202410

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90080-52013iAXLH4#¥140202011-202410

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-06450iAXLH4#202011-202410

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-08120iAXLH4#202011-202410

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-08080iAXLH4#202011-202410

43448DCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main42345-08110iAXLH4#202011-202410

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-08080iAXLH4#202011-202410

43457BRACKET, DRIVE SHAFT BEARING

main43457-08050iAXLH4#202011-202305

sub43457-08051

main43457-08051iAXLH4#202306-202410

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90080-10087iAXLH4#202011-202410

*10-1.25PX32-29.5

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90119-A0120iAXLH4#202011-202410

43463RETAINER, DRIVE SHAFT BEARING

main43463-08010iAXLH4#202011-202410

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-08020iAXLH4#202011-202410

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-06790iAXLH4#¥190202011-202410

18 parts on this diagram · 2 diagrams in section
